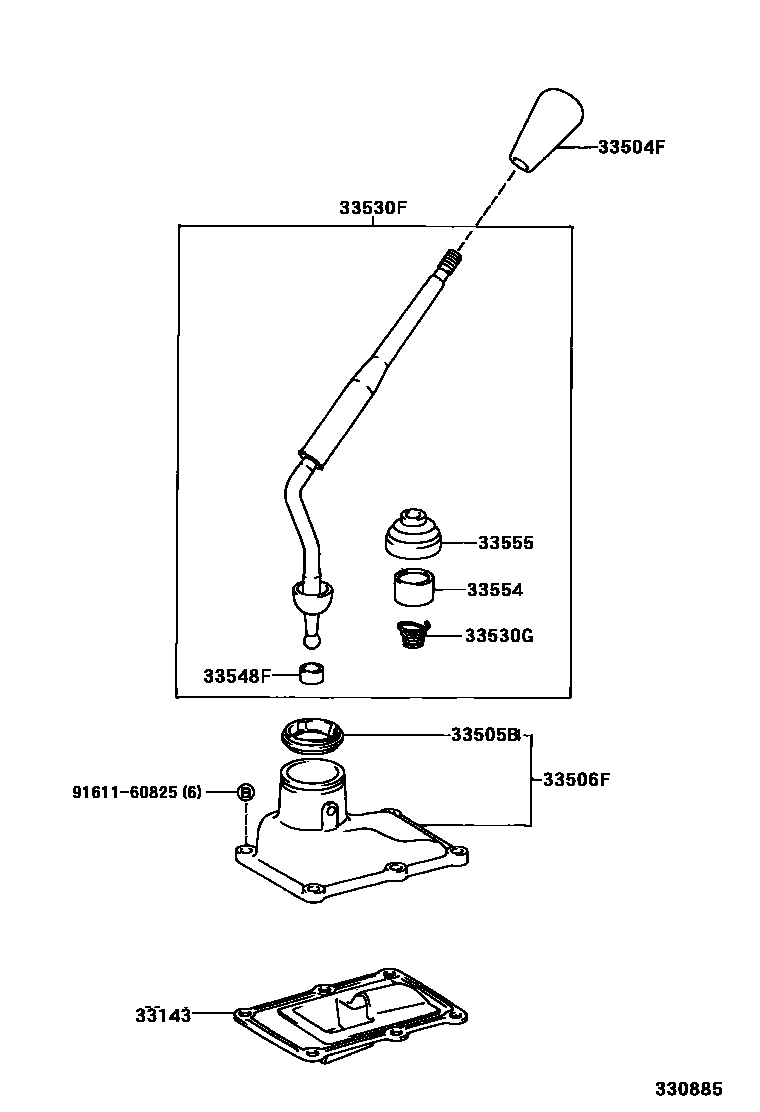

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-35050iRZN180..5F199511-200008

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20100-C0iRZN18#,VZN185..5F199511-200008

URETHANE,BLACK,TRIM1#,4#

sub33504-24010

sub33504-20100

main33504-20120-C0iVZN185..5F199511-200008

LEATHER,BLACK,TRIM1#,4#

sub33504-20120

main33542-20150-C0iRZN180,VZN180..4FC..(SR5B,SR5V)199511

BLACK,TRIM1#,4#

sub33542-20150

main33542-20150-C0iVZN180..LULI199608

BLACK,TRIM4#

sub33542-20150

main33542-35140-C0iRZN185,VZN185..4FC..(SR5B,SR5V)199511

BLACK,TRIM4#

sub33542-35140

main33542-35140-C0iVZN185..LULI199511

BLACK,TRIM1#,4#

sub33542-35140

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iRZN18#..5F199511-200008

main33505-35030iVZN185..5F199511-200008

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-35110iVZN185..5F199511-199608

main33506-35130iRZN185..5F199511-200008

sub33506-35180

sub33144-60050

main33506-35140iVZN185..5F199608-200008

main33570-34010iRZN180..5F199511-200008

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-35250iVZN185..5F199511-199608

main33530-35270iRZN185..5F199511-200008

main33530-35290iRZN180..5F199511-200008

main33530-35310iVZN185..5F199608-200008

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26005iVZN185..5F199511-200008

main90502-26007iRZN18#..5F199511-200008

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iRZN18#,VZN185..5F199511-200008

33554CAP, SHIFT LEVER

main33554-30012iRZN18#,VZN185..5F199511-200008

33555BOOT, SHIFT LEVER

main33555-35040iRZN180..5F199511-200008

main33555-35160iRZN185,VZN185..4FC199511

main33555-35180iRZN180,VZN180..4FC199511

main33555-60030iRZN185,VZN185..5F199511-200008

9161160825

main91611-60825

10 parts on this diagram · 4 diagrams in section
