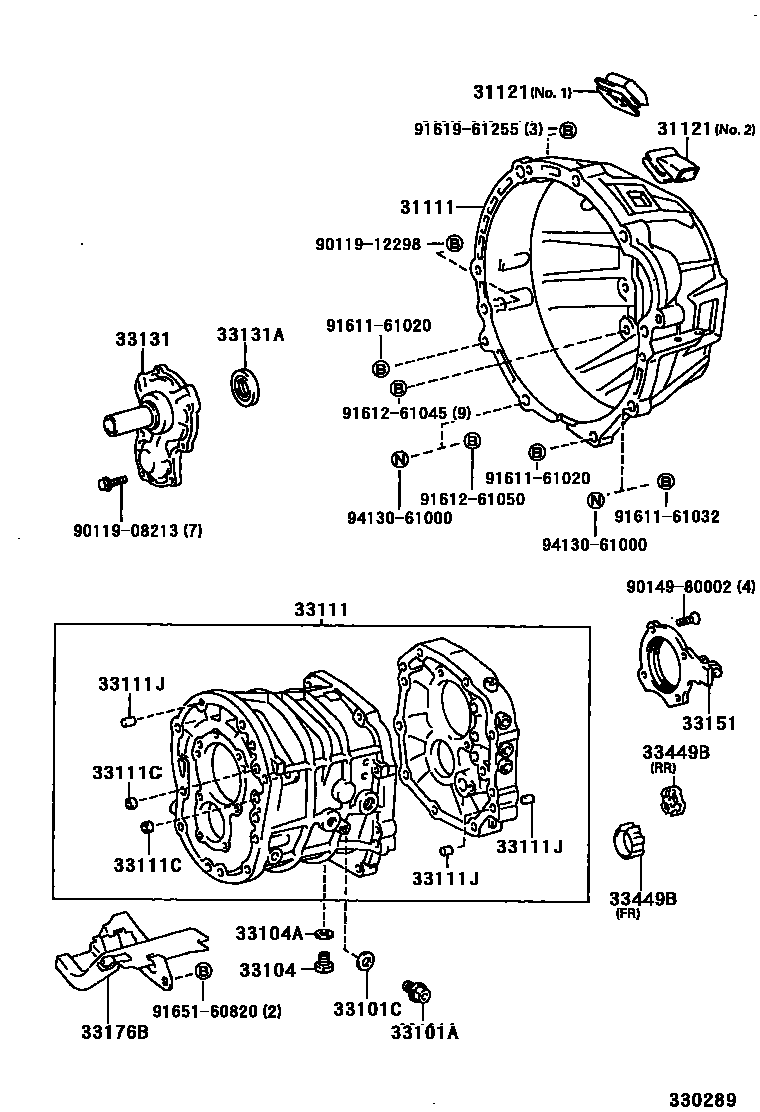

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1W59 0002 1R150F

31111HOUSING, CLUTCH

main31111-35070iRZN18#..5F199511-200008

main31111-35090iVZN185..5F199511-200008

31121COVER, CLUTCH HOUSING, NO.1

main31121-26020iRZN18#..5F199511-200008

NO.2

main31121-35020iRZN18#..5F199511-200008

NO.1

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iRZN18#,VZN185..5F199511-200008

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iRZN18#,VZN185..5F199511-200008

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iRZN18#,VZN185..5F199511-200008

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRZN18#,VZN185..5F199511-200008

33111CASE, MANUAL TRANSMISSION

main33101-30071iRZN18#..5F199511-200008

main33101-35100iVZN185..5F199511-200008

sub33101-60040

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iVZN185..5F199511-200008

OD=14

main96411-41800×2iVZN185..5F199511-200008

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iVZN185..5F199511-200008

L=16,OD=12

33131RETAINER, BEARING, FRONT(MTM)

main33131-30080iRZN18#..5F199511-200008

main33131-35031iVZN185..5F199511-200008

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iRZN18#..5F199511-200008

main90311-32012iVZN185..5F199511-200008

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iRZN18#..5F199511-200008

main33151-35020iVZN185..5F199511-200008

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-30020iRZN18#..5F199511-200008

33449BMAGNET, TRANSMISSION

main33449-30010iRZN18#..5F199511-200008

RR

main33449-30020iRZN18#..5F199511-200008

FR

main33449-35030iVZN185..5F199511-200008

9011908213

main90119-08213

9011912298

main90119-12298

9014980002

main90149-80002

9161161020

main91611-61020

9161161032

main91611-61032

9161261045

main91612-61045

9161261050

main91612-61050

9161961255

main91619-61255

9165160820

main91651-60820

9413061000

main94130-61000

24 parts on this diagram · 2 diagrams in section
