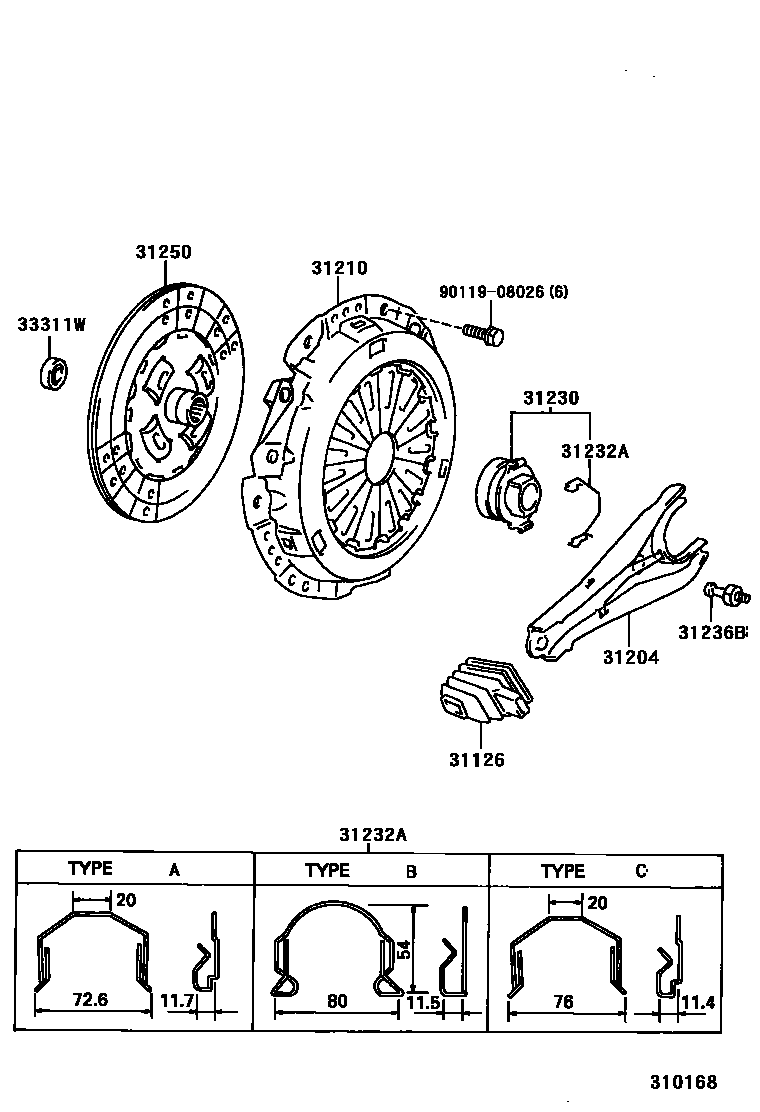

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-26020iRZN18#..5F199511-200008

main31126-34010iVZN185..5F199511-200008

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZN18#..5F199511-200008

main31204-35031iVZN185..5F199511-200008

31210COVER ASSY, CLUTCH

main31210-35200iRZN18#..5F199511-200008

sub31210-26170

main31210-35210iVZN185..5F199511-200008

sub31210-35290

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iRZN18#..5F199511-200008

sub31230-35091

main31230-35110iVZN185..5F199511-200008

31232ACLIP, RELEASE BEARING HUB

main31232-35020iRZN18#,VZN185..5F199511-200008

TYPE A:REFER TO ILLUSTRATION

main31232-35030iVZN185..5F199511-200008

TYPE B:REFER TO ILLUSTRATION

main31232-35040iRZN18#..5F199511-200008

TYPE C:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-30060iRZN18#..5F199511-200008

main31236-35030iVZN185..5F199511-200008

31250DISC ASSY, CLUTCH

main31250-34010iRZN18#..5F199511-199708

sub31250-35400

main31250-35350iVZN185..5F199511-199703

sub31250-35351

main31250-35351iVZN185..5F199703-199805

sub31250-35352

main31250-35352iVZN185..5F199805-200008

sub31250-35353

main31250-35400iRZN18#..5F199708-200008

sub31250-26230

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRZN18#,VZN185..5F199511-200008

sub90363-12024

main90363-12018iRZN18#..5F200006-200008

NSK

main90363-12020iRZN18#..5F200006-200008

NACHI

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
