STARTER

0001 112V 1.4KW 0002 112V 1.8KW,2.0KW 0004 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-75120i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

main28011-76070i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

28100STARTER ASSY

main28100-62030i5VZFE..VZN18#..4FC199511

12V 1.8KW

main28100-62050i5VZFE..VZN18#199511

12V 1.4KW

main28100-75090i3RZFE..RZN18#199511-200008

12V 1.4KW

sub28100-75091

main28100-75110i3RZFE..RZN18#..5F199511-200008

12V 1.8KW

sub28100-75140

main28100-75120i3RZFE..RZN18#..4FC199511-200008

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-62030i5VZFE..VZN18#..4FC199511

12V 1.8KW

main28110-62050i5VZFE..VZN18#199511

12V 1.4KW

main28110-75090i3RZFE..RZN18#199511-200008

12V 1.4KW

main28110-75120i3RZFE..RZN18#199511-200008

12V 1.8KW,2.0KW

28120YOKE ASSY, STARTER

main28120-54380i3RZFE..RZN18#..4FC199511-200008

12V 2.0KW

main28120-66040i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

main28120-75110i3RZFE..RZN18#..5F;5VZFE..VZN18#..4FC199511

12V 1.8KW

28120ARING, O(FOR STARTER YOKE)

main90099-14064i3RZFE,5VZFE..RZN18#,VZN18#199511

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-62030i5VZFE..VZN18#..4FC199511

12V 1.8KW

main28130-64170i3RZFE..RZN18#199511-200008

12V 1.4KW

main28130-65070i5VZFE..VZN18#199511

12V 1.4KW

main28130-75120i3RZFE..RZN18#199511-200008

12V 1.8KW,2.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-35060i5VZFE..VZN18#199511

12V 1.4KW

main28140-54380i3RZFE..RZN18#199511-200008

12V 1.8KW,2.0KW

main28140-62030i5VZFE..VZN18#..4FC199511

12V 1.8KW

main28140-76070i3RZFE..RZN18#199511-200008

12V 1.4KW

28143SPRING, STARTER BRUSH

main28143-54380i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

main90099-17112i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-62030i5VZFE..VZN18#..4FC199511

12V 1.8KW

main28150-62050i5VZFE..VZN18#199511

12V 1.4KW

main28150-75120i3RZFE..RZN18#199511-200008

12V 1.8KW,2.0KW

main28150-75130i3RZFE..RZN18#199511-200008

12V 1.4KW

28159BCOVER, MAGNET SWITCH

main28159-54380i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

main28159-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

main28160-75110i3RZFE..RZN18#..5F;5VZFE..VZN18#..4FC199511

12V 1.8KW

main28160-75120i3RZFE..RZN18#..4FC199511-200008

12V 1.8KW,2.0KW

28160ABEARING, STARTER ARMATURE

main90099-10197i3RZFE,5VZFE..RZN18#,VZN18#199511

28160BBEARING, STARTER ARMATURE, NO.2

main90099-10196i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

main90099-10208i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i3RZFE,5VZFE..RZN18#,VZN18#199511

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-54380i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

main28169-55050i3RZFE..RZN18#199511-200008

12V 1.8KW,2.0KW

28175AGASKET, MAGNET SWITCH COVER

main28175-54380i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

main28175-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

28176SCREW, STARTER

main90099-00270i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

main90099-00271i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

28199APROTECTOR, DUST STARTER

main28199-74110i3RZFE,5VZFE..RZN18#,VZN18#199511

28226STARTER KIT, BATTERY TERMINAL

main28226-54380i3RZFE..RZN18#..4FC199511-199807

12V 2.0KW

sub28226-54340

main28226-54380i3RZFE..RZN18#..5F;5VZFE..VZN18#..4FC199511-199807

12V 1.8KW

sub28226-54340

main28226-64200i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

sub28226-22050

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

main28226-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i3RZFE,5VZFE..RZN18#,VZN18#199511

28229RETAINER, STARTER IDLE GEAR

main28229-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

28235PLUNGER, MAGNET SWITCH

main28235-54380i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

main28235-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

28254PINION, STARTER IDLE GEAR

main28254-64130i5VZFE..VZN185..4FC;3RZFE,5VZFE..RZN18#,VZN180199511

12V 1.8KW,2.0KW

main28254-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

12V 1.4KW

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908146

main90179-08146

9161261055

main91612-61055

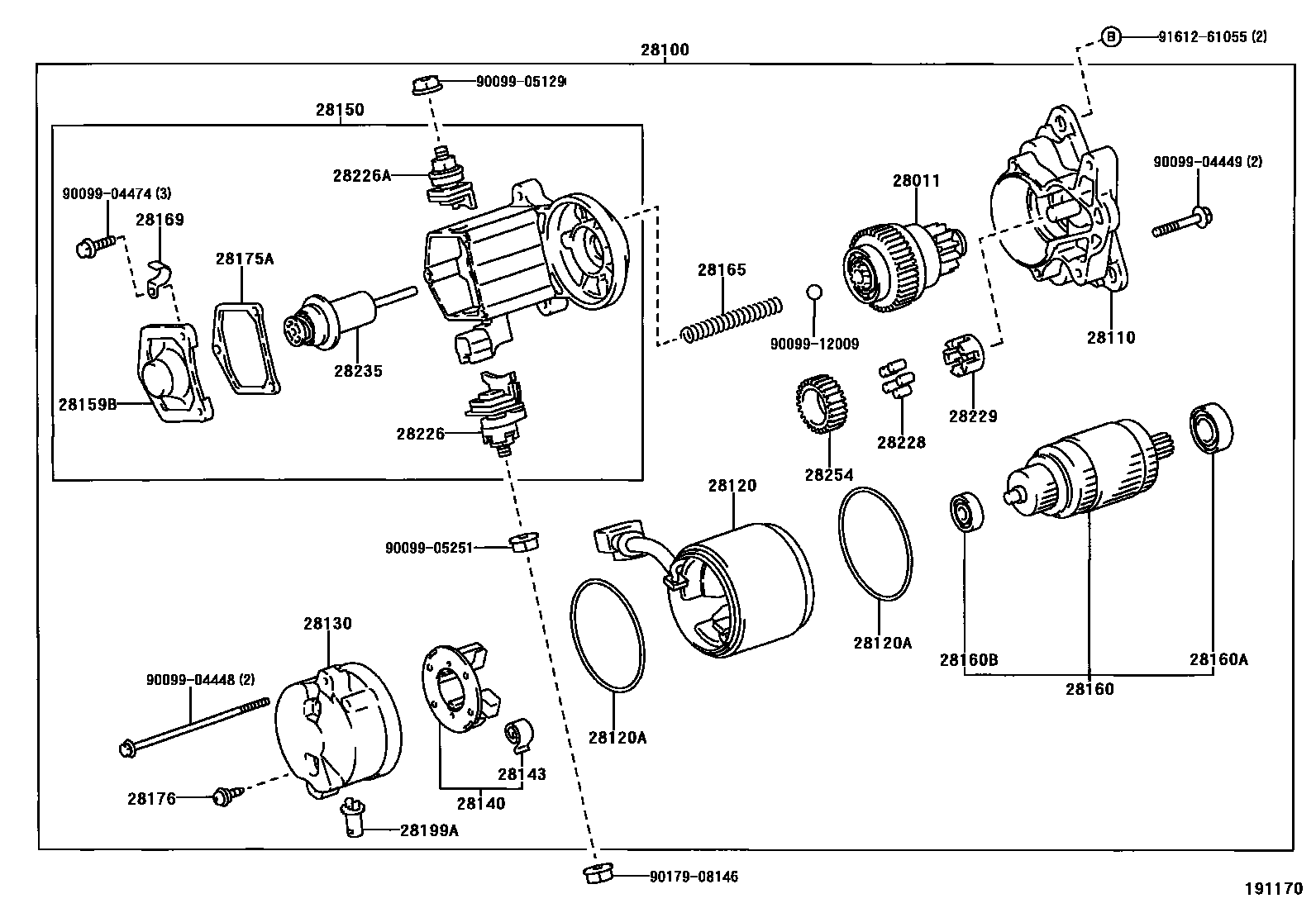

32 parts on this diagram · 3 diagrams in section
