VENTILATION HOSE

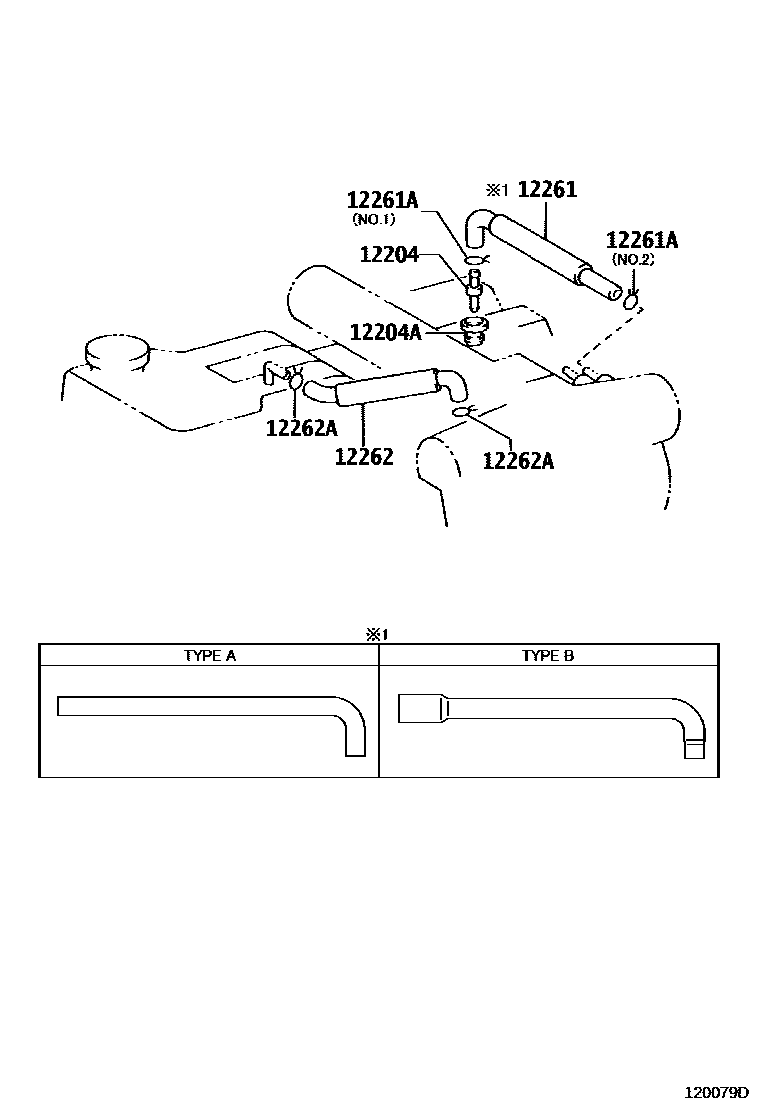

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-62010i199511
main12204-75010i199511-200008
main12204-75020i199908-200008
CALIFORNIA SPEC
12204AGROMMET(FOR VENTILATION SYSTEM)
main90480-18001i199511-200008
12261HOSE, VENTILATION
main12261-62040i199511-199611
sub12261-62041
main12261-62041i199611
main12261-75030i199511-199906
TYPE A:REFER ILLUST.
main12261-75060i199908-200008
CALIFORNIA SPEC
main12261-75080i199906-200008
TYPE B:REFER ILLUST.
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14001i199511-199906
main90467-14001i199906-200008
NO.1
main90467-14017i199511-199611
main90467-20010i199908-200008
CALIFORNIA SPEC,NO.1
main90467-22010i199908-200008
CALIFORNIA SPEC,NO.2
main90467-22010i199906-200008
NO.2
12262HOSE, VENTILATION, NO.2
main12262-62050i199511-200008
main12262-62060i200008
main12262-75050i199511-200008
main12262-75130i199908-200008
CALIFORNIA SPEC
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-14001i199511-200008

6 parts on this diagram · 2 diagrams in section
