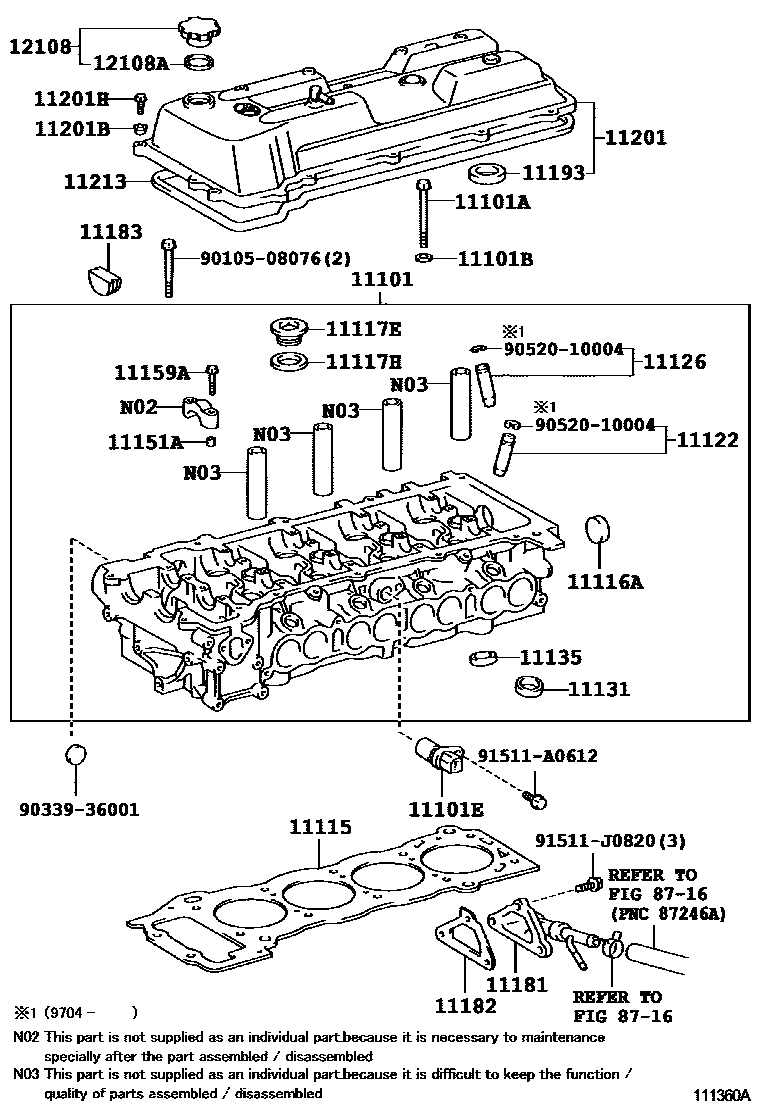

CYLINDER HEAD
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=7,OD=10
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11182GASKET, CYLINDER HEAD REAR PLATE
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
CALIFORNIA SPEC
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
sub91511-J0625
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
8716
9010508076
main90105-08076
9033936001
main90339-36001
9052010004
main90520-10004
91511A0612
main91511-A0612
91511J0820
main91511-J0820
31 parts on this diagram · 2 diagrams in section
