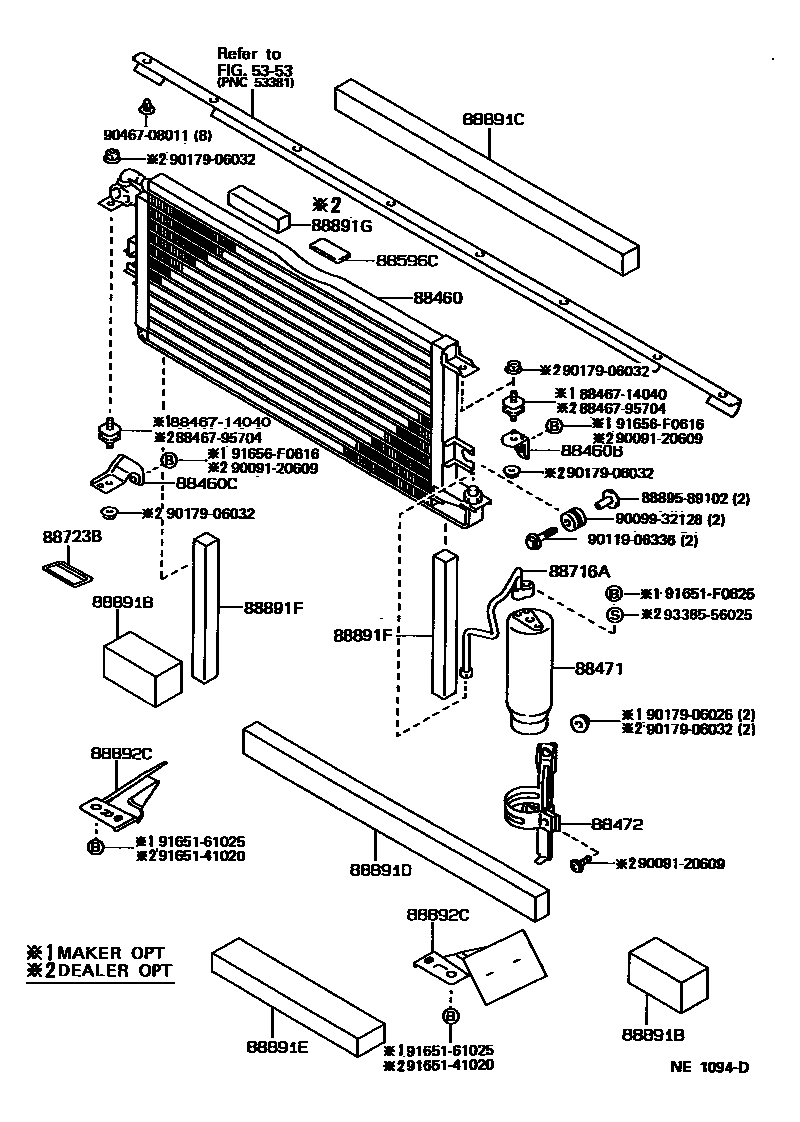

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1DEALER OPTION 0003 1DEALER OPTION 0004 1MAKER OPTION 0005 1MAKER OPTION 0006 1MAKER OPTION 0007 1DEALER OPTION 0008 1 0009 1MAKER OPTION 0010 1DEALER OPTION 0011 1 0012 1

5353

88460CONDENSER ASSY, COOLER

main88460-35060iRN131,VZN131199108-199308

W(DEALER OPTION AIR CONDITIONER)

sub88460-35070

main88460-35080iRN130,VZN130199308-199511

W(MAKER OPTION AIR CONDITIONER)

sub88460-35090

main88460-35110iRN130,VZN130199308-199511

W(DEALER OPTION AIR CONDITIONER)

sub88460-35090

main88460-35130iRN10#,110,VZN100,110199401-199410

main88460-35150iVZN100,110;RN101..4FC;RN101,110..W;RN101,110..CND199408-199501

main88460-89115iRN10#,110,VZN10#,110198808-199401

sub88460-35020

main88460-89117iRN13#,VZN130198904-199108

sub88460-89118

main88460-89117iRN130,VZN130199108-199308

W(MAKER OPTION AIR CONDITIONER)

sub88460-89118

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-89120iRN10#,110,VZN10#,110198808-199501

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-89121iRN10#,110;VZN10#,110..USA198808-199501

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iRN130,VZN130;RN10#,110,131,VZN100,110,131..CND198808-199401

sub88471-16050

main88471-16040iRN101,110,VZN100,110..USA199305-199401

DEALER OPTION

sub88471-16050

main88471-20050iRN10#,110,VZN100,110199401-199501

sub88471-34010

main88471-34010iRN13#,VZN13#199308-199511

main88471-50010iRN101,110,VZN100,110..USA199305-199401

MAKER OPTION

sub88471-16040

88472BRACKET, RECEIVER TANK, NO.1

main88472-35010iRN13#,VZN13#199108-199511

main88472-89110iRN10#,110,13#,VZN10#,110,130198808-199501

88596CPLATE, CAUTION, NO.2

main88723-12010iRN10#,110,130,VZN10#,110,130198808-198908

main88723-12010iRN10#,110,VZN10#,110,130..USA198908-199008

W(MAKER OPTION AIR CONDITIONER)

main88723-17030iRN131198908-199008

W(DEALER OPTION AIR CONDITIONER)

main88723-17030iRN13#,VZN130199008-199108

main88723-20020iRN10#,110,VZN10#,110..USA199008-199108

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-35100iRN130,VZN130199108-199308

main88716-35110iRN13#,VZN13#199308-199511

main88716-35230iRN10#,110,VZN100,110199401-199501

main88716-89163iRN10#,110,VZN10#,110198808-199401

88723BLABEL, COOLER SERVICE CAUTION

main88723-17010iRN13#198904-198908

main88723-17030iRN13#,VZN13#198908-199308

main88723-20020iRN10#,110,VZN10#,110198908-199401

main88723-35030iRN13#,VZN13#199308-199511

ENGLISH

main88723-35040iRN13#,VZN13#199308-199511

FRENCH

main88723-35050iVZN110..4FC199401-199501

ENGLISH

main88723-35050iVZN110..R;RN10#,110,VZN100199401-199408

ENGRISH

main88723-35050iRN101,110,VZN100,110..USA199401-199501

main88723-35060iVZN100,110..R199401-199408

FRENSH

main88723-35060iVZN100,110..R199401-199501

FRENCH

88891BPACKING B (FOR COOLER)

main88578-89103iRN130198904-199511

W(DEALER OPTION AIR CONDITIONER)

main88578-89111iRN10#,110,VZN10#,110,130..USA198808-199108

main88578-89111iRN10#,110,130,VZN10#,110,130..USA199108-199511

W(MAKER OPTION AIR CONDITIONER)

88891CPACKING C (FOR COOLER)

main88578-89118iRN10#,110,13#198808-199501

88891DPACKING D (FOR COOLER)

main88578-89119iRN10#,110,130..USA198808-199511

W(MAKER OPTION AIR CONDITIONER)

main88578-89125iRN101,110,130..USA198808-199511

W(DEALER OPTION AIR CONDITIONER)

main88578-89127iRN10#,110..CND199108-199401

W(DEALER OPTION AIR CONDITIONER)

sub88578-89119

88891EPACKING E (FOR COOLER)

main88578-89112iRN10#,110,13#,VZN10#,110,13#198808-199511

88891FPACKING F (FOR COOLER)

main88578-89122iRN106;RN110..4FC;RN101,110..G..USA199408-199501

RH

main88578-89122iRN10#,110,VZN10#,110198808-199501

LH

main88578-89123iRN10#,110,VZN10#,110198808-199501

RH

sub88578-89122

main88578-89128iRN13#,VZN130198904-199511

88891GPACKING G (FOR COOLER)

main88578-89107iRN10#,110,13#,VZN10#,110198808-199511

88892CPLATE, CONDENSER, NO.1

main88892-89114iRN10#,110..USA199108-199401

W(DEALER OPTION AIR CONDITIONER),RH

main88892-89114iRN10#,110..CND199108-199401

RH

main88892-89115iRN10#,110..CND199108-199401

W(DEALER OPTION AIR CONDITIONER),LH

main88892-89115iRN10#,110..USA199108-199401

LH

main88892-89116iRN13#,VZN10#,110,13#199108-199401

W(MAKER OPTION AIR CONDITIONER),RH

main88892-89116iRN10#,110..USA198808-199511

RH

main88892-89116iVZN10#,110198808-198908

W(DEALER OPTION AIR CONDITIONER),RH

main88892-89117iRN10#,110,13#,VZN100,110,13#198808-199511

LH

main88892-89117iRN10#,110,13#,VZN130198808-198908

W(DEALER OPTION AIR CONDITIONER),LH

main88892-89117iRN10#,110,13#,VZN130198808-199401

W(MAKER OPTION AIR CONDITIONER),LH

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846795704CUSHION, COOLER CONDENSER, NO.1

main88467-95704

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009932128

main90099-32128

9011906336

main90119-06336

9017906026

main90179-06026

9017906032

main90179-06032

9046708011

main90467-08011

9165141020

main91651-41020

9165161025

main91651-61025

91651F0625

main91651-F0625

91656F0616

main91656-F0616

9338556025

main93385-56025

30 parts on this diagram · 12 diagrams in section
