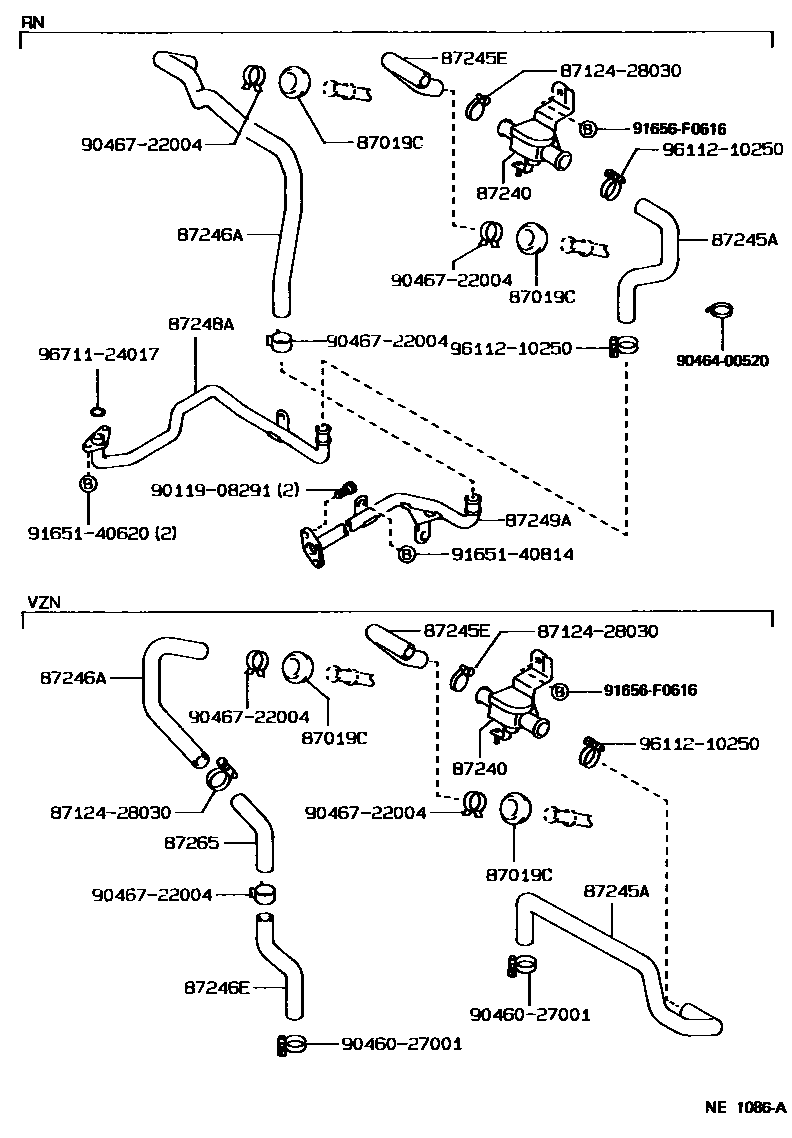

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1W(REAR HEATER) 0003 1W(REAR HEATER)

87019CGROMMET, HEATER HOSE

main90480-36005iRN10#,110,13#,VZN10#,110,13#198808-199511

87240VALVE ASSY, HEATER WATER

main87240-89124iRN10#,110,13#,VZN10#,110,13#198808-199511

87245AHOSE, HEATER WATER, INLET A

main87245-35040iVZN10#,110,130199108-199511

main87245-35060iVZN131199108-199511

W(REAR HEATER)

main87245-89218iRN10#,110,130198808-199511

main87245-89229iVZN10#,110,130198808-198908

main87245-89259iVZN131198904-199108

W(REAR HEATER)

main87245-89262iRN131198904-199511

W(REAR HEATER)

main87245-89289iVZN10#,110,130198908-199108

87245EHOSE, HEATER WATER, INLET E

main87245-89231iRN10#,110,13#,VZN10#,110,13#198808-199511

main87245-89264iRN130199108-199511

W(REAR HEATER)

87246AHOSE, HEATER WATER, OUTLET A

main87245-35100iVZN10#,110,13#199108-199511

DELETE

main87245-89219iRN10#,110,130198808-199511

main87245-89222iVZN10#,110,130198808-198908

main87245-89260iVZN130198904-198908

W(REAR HEATER)

main87245-89260iVZN10#,110,13#198908-199108

main87245-89263iRN131198904-199511

W(REAR HEATER)

87246EHOSE, HEATER WATER, OUTLET E

main87245-35090iVZN10#,110,13#199108-199511

DELETE

main87245-89205iVZN10#,110,130198808-198908

main87245-89264iRN13#198904-199108

main87245-89273iVZN131198904-198908

W(REAR HEATER)

main87245-89273iVZN10#,110,13#198908-199108

87248PIPE SUB-ASSY, WATER

main87248-89129iRN13#198904-199511

main87248-89130iVZN13#198904-199511

87248APIPE, HEATER WATER INLET, A

main87208-14280iRN10#,110,13#198808-199112

sub87208-35170

main87208-35170iRN10#,110,13#199112-199511

87249APIPE, HEATER WATER OUTLET, A

main87208-35130iRN10#,110,13#199112-199511

main87208-89121iRN10#,110,13#198808-199112

sub87208-35130

87265CONNECTOR, HEATER WATER HOSE

main87265-35030iVZN10#,110,130199108-199301

sub87265-35180

main87265-35040iVZN131199108-199301

W(RR HEATER),OUTLET

sub87265-35160

main87265-35050iVZN130199108-199301

W(RR HEATER),INLET

sub87265-35170

main87265-35060iRN13#199108-199301

W(RR HEATER),INLET

sub87265-89110

main87265-35070iRN13#199108-199301

W(RR HEATER),OUTLET

sub87265-89111

main87265-35160iVZN131199301-199511

W(RR HEATER),OUTLET

main87265-35170iVZN130199301-199308

W(RR HEATER),INLFT

main87265-35170iVZN131199308-199511

INLET

main87265-35180iVZN100,110,130199301-199511

main87265-89107iVZN10#,110,130198808-198908

main87265-89108iVZN130198904-199108

W(RR HEATER),INLET

main87265-89108iVZN131198906-198908

main87265-89109iVZN131198904-199108

W(RR HEATER),OUTLET

main87265-89110iRN13#198904-199108

INLET

main87265-89110iRN13#199301-199511

W(RR HEATER),INLET

main87265-89111iRN13#198904-199511

W(RR HEATER),OUTLET

main87265-89117iVZN10#,110,130198908-199108

8712428030CLAMP, HEATER

main87124-28030

9011908291

main90119-08291

9046027001

main90460-27001

9046400520

main90464-00520

9046722004

main90467-22004

9165140620

main91651-40620

9165140814

main91651-40814

91656F0616

main91656-F0616

9611210250

main96112-10250

9671124017

main96711-24017

20 parts on this diagram · 3 diagrams in section
