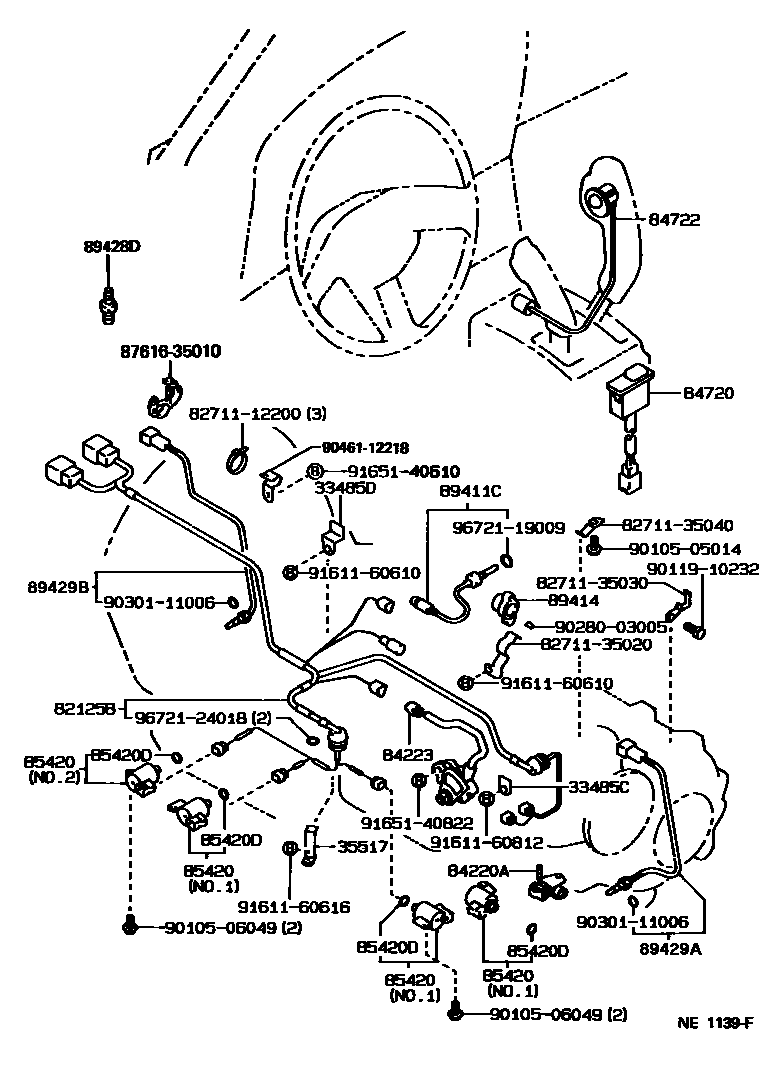

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

33485CPLATE, SPEEDOMETER SLEEVE LOCK

main33485-30020iRN106,110,13#,VZN105,110,13#..4FC198808-199511

33485DPLATE, SPEEDOMETER SLEEVE LOCK

main33485-35020iRN101,110,131,VZN110,13#..4FC198808-199511

35517PLATE, TRANSMISSION WIRE LOCK

main35517-35010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

82125BWIRE, TRANSMISSION

main82125-30400iRN131..4FC199502-199511

main82125-35050iVZN105,110..4FC..DLX198808-198908

main82125-35051iVZN105,110..4FC..DLX198908-199501

main82125-35070iRN110,13#..4FC..SR5198808-198908

W(*ADD)

main82125-35080iVZN110,13#..4FC..SR5198808-198908

main82125-35081iVZN110..4FC..DLX199008-199501

W(*ADD)

main82125-35081iVZN110,13#..4FC..SR5198908-199503

main82125-35082iVZN13#..4FC199503-199511

main82125-35090iRN106,110,13#..4FC198808-198908

main82125-35110iRN10#,110,13#..4FC198908-199108

main82125-35120iRN101,110,131..4FC199108-199502

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-35060iVZN110,13#..4FC198808-199511

84223SWITCH, TRANSFER POSITION

main84223-35010iRN106,110,13#,VZN105,110,13#..4FC198808-199511

84720SWITCH ASSY, PATTERN SELECT

main84720-35020iRN106,110,13#,VZN105,110,13#..4FC198808-198908

main84720-35040iRN10#,110,13#..4FC198908-199511

main84720-35050iVZN105,110,13#..4FC198908-199511

84722SWITCH, TRANSMISSION CONTROL

main84722-35070-02iRN106,110,13#,VZN105,110,13#..4FC198808-199108

RED,TRIM3#

sub84722-35070

main84722-35070-03iRN106,110,13#,VZN105,110,13#..4FC198808-199511

GRAY,TRIM1#

sub84722-35070

main84722-35070-04iRN101,110,13#,VZN110,13#..4FC198808-199511

BLUE,TRIM8#

sub84722-35070

main84722-35070-06iRN106,110,13#,VZN105,110,13#..4FC198808-199108

BROWN,TRIM4#

sub84722-35070

main84722-35070-E0iRN13#,VZN13#..4FC199108-199308

TAN,TRIM4#

sub84722-35070

main84722-35070-E1iRN131,VZN13#..4FC199308-199511

OAK,TRIM4#

sub84722-35070

85420SOLENOID ASSY, TRANSMISSION

main85420-22080iVZN110..4FC..DLX199108-199511

NO.1

main85420-22080iRN106,110,13#,VZN105,110,13#..4FC198808-199108

NO.1,AISIN

main85420-22080iVZN110..4FC..DLX199205-199408

W(*ADD),NO.1

main85420-30110iVZN13#..4FC199205-199503

NO.2

main85420-30110iVZN110,13#..4FC..SR5199205-199408

W(*ADD),NO.2

main85420-30110iRN10#,110,13#,VZN105,110,13#..4FC198808-199205

NO.2,AISIN

main85420-30120iRN10#,110,13#,VZN105,110,13#..4FC198808-199205

NO.2,NIPPONDENSO

main85420-30120iRN131..4FC199408-199511

NO.2

main85420-30200iVZN13#..4FC199503-199511

NO.1

sub85420-21090

main85420-30220iVZN13#..4FC199503-199511

NO.2

sub85420-30260

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iRN101,110,131,VZN110,13#..4FC198808-199511

89411CSENSOR, SPEED

main89411-35010iVZN110,13#..4FC198808-199511

main89411-35030iRN101,110,13#..4FC199108-199511

89414ROTOR, SENSOR

main89414-35010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

89428DSWITCH, TEMPERATURE, NO.2

main89428-26030iRN101,110,13#..4FC199108-199511

89429ASENSOR, TEMPERATURE

main89429-35021iVZN105,110,13#..4FC198808-198908

TRANSFER CHAIN CASE

main89429-35022iVZN110,13#..4FC..SR5198908-199308

TRANSFER CHAIN CASE

main89429-35022iVZN110,13#..4FC199308-199511

main89429-35050iRN10#,110,13#..4FC198808-199108

89429BSENSOR, TEMPERATURE NO.2

main89429-35040iVZN105,110,13#..4FC198808-199108

sub89429-35042

main89429-35041iVZN110,13#..4FC199108-199408

sub89429-35042

main89429-35042iVZN110,13#..4FC199408-199511

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271135020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35020

8271135030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35030

8271135040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35040

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9010505014

main90105-05014

9010506049

main90105-06049

9011910232

main90119-10232

9028003005

main90280-03005

9030111006

main90301-11006

9046112218

main90461-12218

9161160610

main91611-60610

9161160616

main91611-60616

9161160812

main91611-60812

9165140610

main91651-40610

9165140822

main91651-40822

9672119009

main96721-19009

9672124018

main96721-24018

33 parts on this diagram · 1 diagram in section
