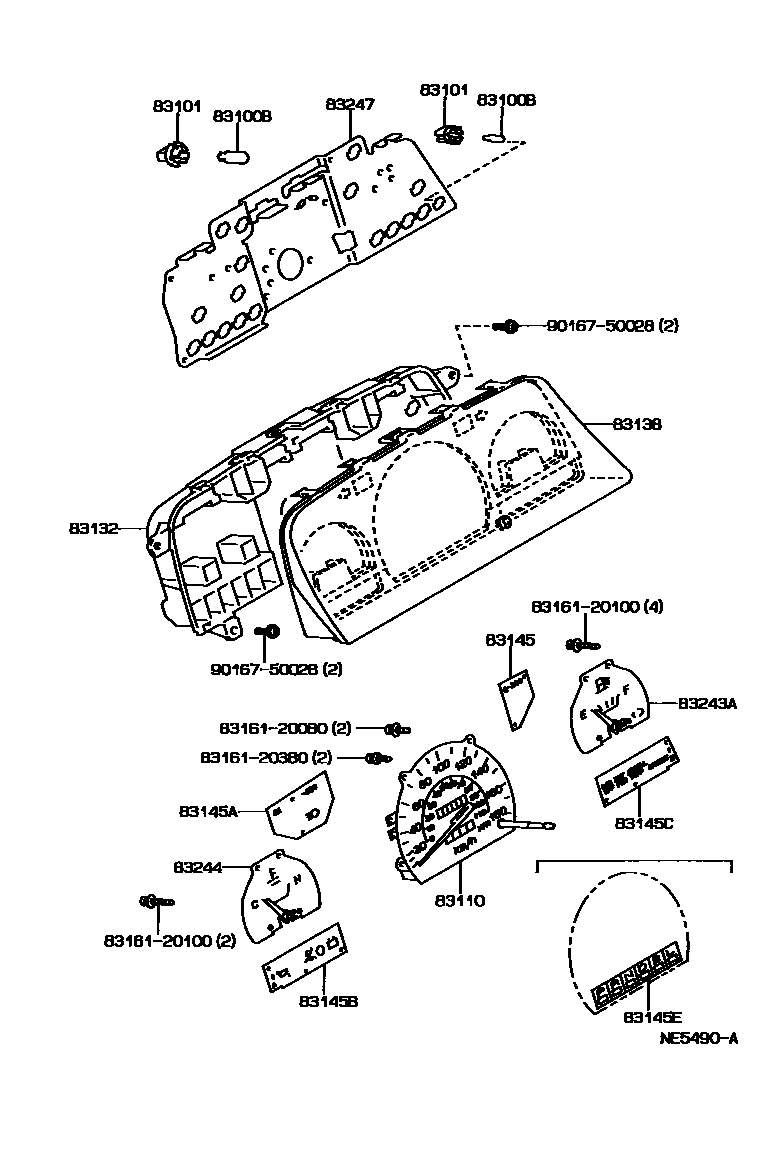

METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1SPEEDOMETER DRIVE CABLE 0005 1

83100BBULB, COMBINATION METER, NO.1

main83109-37020iRN101,110,VZN110..4FC..DLX;RN10#,110,VZN110..5F..DLX..CND199208-199501

12V 1.7W

main83120-04010×2iRN101,110,VZN100,110..5F..DLX..USA199208-199501

12V 3.4W,GREEN CAP

main83120-04040×9iRN101,110,VZN100,110..5F..DLX..USA199208-199501

12V 3.4W,W(SOCKET)

main83120-04050iRN101,110,VZN100,110..5F..DLX..USA199208-199501

12V 1.4W,W(SOCKET)

main83120-04060iRN101,110,VZN100,110..5F..DLX..USA199208-199501

12V 1.7W,W(SOCKET)

main90981-11018×10iVZN10#,110..R..DLX198808-199008

12V 1.2W W/O SOCKET

main99132-12034×12iRN10#,110,VZN10#,110..5F..DLX199008-199208

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×11iRN101,110,13#..5F..SR5198808-198909

12V 1.4W BULB

main83101-20040×12iVZN110..4FC..CND199008-199108

12V 3.4W BULB

83110SPEEDOMETER ASSY

main83110-04010iRN101,110,VZN100,110..5F..DLX..USA199308-199501

VDO-YAZAKI

main83110-34101iVZN131199408-199511

main83110-35170iRN101,110,VZN100,110..5F..DLX..USA199208-199501

YAZAKI

main83110-35180iRN10#,110,VZN10#,110..5F..DLX..USA199108-199501

W(TRIP METER)

main83110-35200iVZN110..4FC..CND199108-199501

W(TRIP METER)

main83110-35210iRN10#,110,VZN100,110..5F..DLX..CND199108-199501

main83110-35370iVZN130..4FC199312-199401

BRAZIL SPEC

main83110-35380iRN10#,110,VZN10#,110..5F..DLX..USA199108-199501

W(TRIP METER & TACHOMETER)

main83110-35390iRN131,VZN110,131..SR5..CND199108-199408

main83110-35480iVZN130..4FC199501-199511

BRAZIL SPEC

main83110-35490iRN130199501-199511

main83110-35540iRN10#,110..USA199105-199108

main83110-35550iRN10#,110..5F..USA199105-199108

W(TRIP METER)

main83110-35570iRN10#,110..CND199105-199108

main83110-35580iRN10#,110..CND199105-199108

W(TRIP METER)

main83110-35600iRN131199408-199511

main83110-35660iRN130199105-199108

W(TRIP METER & TACHOMETER)

main83110-35670iRN10#,110..CND199105-199108

W(TRIP METER & TACHOMETER)

main83110-35710iVZN10#,110..DLX..USA199105-199108

main83110-35720iVZN10#,110..R..DLX..USA199105-199108

W(TRIP METER)

main83110-35740iVZN100,110..R..DLX..CND199105-199108

main83110-35750iVZN110..4FC..CND199105-199108

W(TRIP METER)

main83110-35770iVZN10#,110..R..DLX..USA199105-199108

W(TRIP METER & TACHOMETER)

main83110-35780iVZN110,131..SR5..CND199105-199108

W(TRIP METER & TACHOMETER)

main83110-3D190iRN130;VZN130..4FC199408-199501

BRAZIL SPEC

main83110-3D200iRN130,VZN130199408-199501

main83110-89298iRN10#,110..DLX..USA198808-199105

main83110-89299iRN10#,110..5F..DLX..USA198808-199105

W(TRIP METER)

main83110-89301iRN10#,110..5F..CND198808-199105

main83110-89302iRN10#,110..5F..CND198808-199105

W(TRIP METER)

main83110-89318iRN10#,110..5F..DLX..USA198808-199105

W(TRIP METER & TACHOMETER)

main83110-89319iRN131198904-199105

main83110-89328iVZN10#,110..DLX..USA198808-199105

main83110-89329iVZN10#,110..R..DLX..USA198808-199105

W(TRIP METER)

main83110-89331iVZN10#,110..R..DLX..CND198808-199105

main83110-89332iVZN110..4FC..CND198808-199105

W(TRIP METER)

main83110-89334iVZN10#,110..R..DLX..USA198808-199105

W(TRIP METER & TACHOMETER)

main83110-89335iVZN110,131..SR5..CND198808-199105

W(TRIP METER & TACHOMETER)

83132CASE, COMBINATION METER

main83132-04010iRN101,110,VZN100,110..5F..DLX..USA199308-199501

VDO-YAZAKI

main83132-35020iRN101,110,VZN100,110..5F..DLX..USA199208-199501

YAZAKI

main83132-35040iVZN110..SR5199408-199501

main83132-89502iRN101,110,13#,VZN100,110,13#..SR5198808-199108

W(TRIP METER & TACHOMETER)

main83132-89504iRN10#,110,VZN10#,110..DLX198808-199108

83138GLASS, SPEEDOMETER

main83138-04010iRN101,110,VZN100,110..5F..DLX..USA199208-199308

VDO,YAZAKI

main83138-89508iRN101,110,13#,VZN100,110,13#..SR5198808-198908

W(TRIP METER & TACHOMETER)

main83138-89518iRN10#,110,VZN10#,110..5F..DLX..CND198808-199501

main83138-89520iRN10#,110,VZN10#,110..5F..DLX..USA198808-199208

main83138-89522iRN10#,110,VZN105,110..4FC..DLX198808-199501

main83138-89524iRN10#,110,VZN10#,110..5F..DLX..CND198808-199501

W(TRIP METER)

main83138-89532iRN10#,110,VZN10#,110..5F..DLX198908-199501

W(TRIP METER & TACHOMETER)

83145LENS, METER, NO.1

main83145-04010iRN101,110,VZN100,110..5F..DLX..USA199308-199501

VDO-YAZAKI

main83145-89504iRN101,110,VZN100,110..5F..DLX..USA199208-199501

YAZAKI

main83145-89546iRN101,110,13#,VZN100,110,13#..SR5198808-199511

83145ALENS, METER, NO.2

main83145-04020iRN101,110,VZN100,110..5F..DLX..USA199208-199308

VDO,YAZAKI

main83145-34140iVZN130..4FC199408-199511

BRAZIL SPEC & W(4-WHEEL *66)

main83145-35220iRN13#..4FC199108-199408

main83145-35340iVZN130199408-199511

W(4-WHEEL *66)

main83145-35540iRN130;VZN130..4FC199408-199511

BRAZIL SPEC

main83145-89502iRN101,110,VZN100,110..5F..DLX..USA199208-199501

YAZAKI

main83145-89572iRN13#..5F;VZN110,13#..SR5199108-199408

83145BLENS, METER, NO.3

main83145-04050iRN101,110,VZN100,110..5F..DLX..USA199308-199501

VDO-YAZAKI

main83145-35520iRN101,110,VZN100,110..DLX..CND199408-199501

main83145-89506iRN10#,110,VZN10#,110..DLX198808-199008

main83145-89540iRN10#,110..CND199108-199501

W(TRIP METER & TACHOMETER)

main83145-89548iRN10#,110..G..DLX..USA;RN10#,110,VZN10#,110..(R,W)..DLX198808-199501

W(TRIP METER & TACHOMETER)

main83145-89602iRN101,110,VZN100,110..5F..DLX..USA199208-199501

YAZAKI

83145CLENS, METER, NO.4

main83145-35420iRN131,VZN13#..4FC199408-199511

main83145-89508iRN101,110,VZN110..4FC..DLX..USA199008-199501

main83145-89510iRN10#,110,VZN10#,110..5F..DLX..USA198808-199008

W(TRIP METER)

main83145-89512iRN10#,110,VZN105,110..4FC..DLX..USA198808-199008

main83145-89524iVZN100,110,131..R..CND199008-199108

main83145-89550iRN13#,VZN131..4FC;VZN110,130..SR5..USA199108-199408

sub83145-89612

83145ELENS, METER, NO.6

main83145-35260iRN101,110,VZN100,110..5F..DLX..USA199208-199408

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-04010iRN101,110,VZN100,110..5F..DLX..USA199308-199501

VDO-YAZAKI

main83243-34020iRN13#,VZN13#199408-199511

main83243-35060iRN101,110,VZN100,110..5F..DLX..USA199208-199501

YAZAKI

main83243-35100iRN10#,110,VZN10#,110..5F..DLX199108-199501

W(TRIP METER & TACHOMETER)

main83243-89504iRN101,110,13#,VZN100,110,13#..SR5198808-199108

W(TRIP METER & TACHOMETER)

main83243-89508iRN10#,110,VZN10#,110..DLX198808-199108

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-04020iRN101,110,VZN100,110..5F..DLX..USA199308-199501

VDO-YAZAKI

main83244-34120iRN13#,VZN13#199408-199511

main83244-35040iRN101,110,VZN100,110..5F..DLX..USA199208-199408

W(TRIP METER)

main83244-35060iRN10#,110,VZN100,110..DLX..CND199208-199501

YAZAKI

main83244-35080iRN101,110,VZN110..4FC..DLX..USA199108-199501

main83244-35140iRN10#,110,VZN10#,110..5F..DLX199108-199501

W(TRIP METER & TACHOMETER)

main83244-89504iRN101,110,13#,VZN100,110,13#..SR5198808-199108

W(TRIP METER & TACHOMETER)

main83244-89508iRN10#,110,VZN10#,110..DLX198808-199108

83247PLATE, METER CIRCUIT

main83149-35280iVZN130..R199408-199511

W(4-WHEEL *66)

main83149-35300iVZN130..R199408-199511

main83149-35320iVZN130..4FC199408-199511

main83149-35340iRN131,VZN131..4FC199408-199511

main83149-35460iRN130199510-199511

BRAZIL SPEC

main83149-35470iVZN130..4FC199510-199511

BRAZIL SPEC

main83247-04010iRN101,110,VZN100,110..5F..DLX..USA199308-199501

VDO-YAZAKI

main83247-35180iRN10#,110,VZN100,110..5F..DLX..CND199208-199501

YAZAKI

main83247-35200iRN101,110,VZN100,110..5F..DLX..USA199208-199408

W(TRIP METER)

main83247-35220iRN101,110,VZN110..4FC..DLX..USA199108-199501

main83247-35240iVZN110..4FC..CND199108-199501

main83247-35500iRN13#,VZN131..5F;VZN110..SR5..CND199108-199408

main83247-35520iRN13#..4FC199108-199408

main83247-35540iVZN10#,110..R..DLX..USA199108-199501

W(TRIP METER & TACHOMETER)

main83247-35560iVZN110,13#..4FC..SR5199108-199408

main83247-89512iRN101,110,13#..5F..SR5198808-199008

W(TRIP METER & TACHOMETER)

main83247-89516iRN110,13#,VZN110,13#..4FC..SR5198808-199108

main83247-89518iVZN110,131..R..SR5..CND199008-199108

W(TRIP METER & TACHOMETER)

main83247-89534iRN10#,110,VZN10#,110..5F..DLX198808-199008

main83247-89540iRN10#,110,VZN105,110..4FC..DLX198808-199008

main83247-89602iRN10#,110,VZN10#,110..5F..DLX199008-199108

main83247-89606iRN101,110,VZN110..4FC..DLX199008-199108

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

9016750028

main90167-50028

17 parts on this diagram · 4 diagrams in section
