EPC Data

WIRING & CLAMP

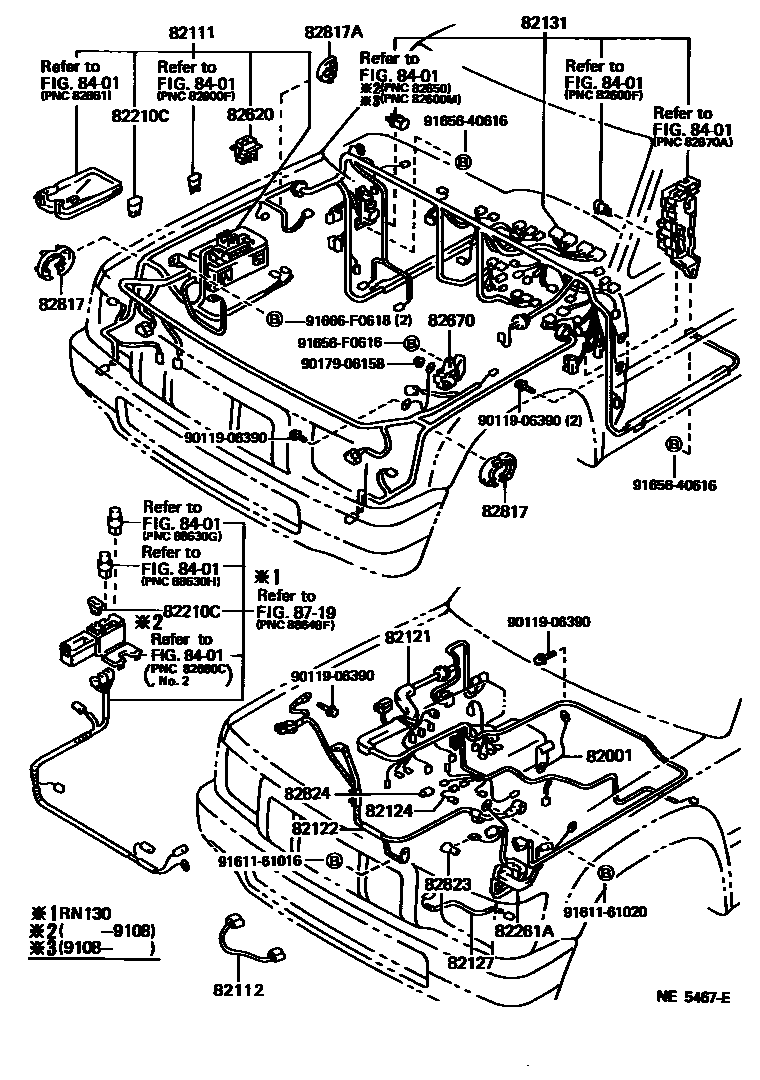

Parts diagram
82001CABLE, BOND, NO.1
main90980-07108i198808-199511
main90980-07300i198808-199111
NO.1
main90980-07301i198808-199409
NO.2
main90980-07340i199111-199511
NO.1
main90980-07370i199409-199511
NO.2
82111WIRE, ENGINE ROOM MAIN
main82111-35260i199010-199108
main82111-35270i199010-199108
main82111-35280i199010-199108
main82111-35300i199108-199501
main82111-35310i199108-199501
main82111-35340i199108-199511
main82111-35350i199108-199308
main82111-35360i199108-199511
main82111-35370i199108-199511
main82111-35380i199108-199208
main82111-35381i199208-199501
main82111-35400i199108-199208
main82111-35401i199208-199501
main82111-35410i199108-199208
main82111-35411i199208-199308
main82111-35412i199308-199511
main82111-35420i199108-199208
main82111-35421i199208-199308
main82111-35422i199308-199511
main82111-3D210i199308-199511
W(4-WHEEL *66)
main82111-3D220i199308-199511
W(4-WHEEL *66)
main82111-89149i198808-199008
main82111-89150i198808-199008
main82111-89207i198904-199008
main82111-89209i198908-199008
main82111-89210i198908-199008
main82111-89212i198908-199008
main82111-89227i199008-199108
main82111-89228i199008-199108
main82111-89229i199008-199010
main82111-89230i199008-199010
main82111-89233i199008-199108
main82111-89235i199008-199010
82112WIRE, ENGINE ROOM, NO.2
main82112-35010i198908-199108
82121WIRE, ENGINE
main82121-35090i199101-199108
main82121-35100i199101-199108
main82121-35150i199108-199208
main82121-35151i199208-199308
main82121-35152i199308-199501
main82121-35160i199108-199208
CALIFORNIA SPEC
main82121-35161i199208-199308
CALIFORNIA SPEC
main82121-35162i199308-199501
CALIFORNIA SPEC
main82121-35170i199108-199208
main82121-35171i199208-199308
main82121-35172i199308-199501
main82121-35180i199108-199208
CALIFORNIA SPEC
main82121-35181i199208-199308
CALIFORNIA SPEC
main82121-35182i199308-199408
CALIFORNIA SPEC
main82121-35183i199408-199511
CALIFORNIA SPEC
main82121-35190i199108-199208
main82121-35191i199208-199308
main82121-35192i199308-199501
main82121-35200i199108-199208
CALIFORNIA SPEC
main82121-35201i199208-199308
CALIFORNIA SPEC
main82121-35202i199308-199501
CALIFORNIA SPEC
main82121-35260i199108-199208
main82121-35261i199208-199308
main82121-35262i199308-199501
main82121-35270i199108-199208
main82121-35271i199208-199308
main82121-35272i199308-199501
main82121-35620i199308-199501
CALIFORNIA SPEC
main82121-35640i199308-199408
main82121-35641i199408-199511
main82121-35650i199308-199408
CALIFORNIA SPEC
main82121-35651i199408-199511
CALIFORNIA SPEC
main82121-35660i199308-199408
main82121-35661i199408-199511
main82121-35670i199308-199408
CALIFORNIA SPEC
main82121-35671i199408-199511
CALIFORNIA SPEC
main82121-3D010i199408-199511
main82121-3D020i199408-199511
main82121-89199i198904-198908
W(TACHOMETER)
main82121-89199i198808-198904
main82121-89200i198808-198908
main82121-89201i198904-198908
W(*ADD)
main82121-89201i198808-198904
main82121-89202i198808-198908
CALIFORNIA SPEC
main82121-89203i198808-198908
CALIFORNIA SPEC
main82121-89204i198808-198908
CALIFORNIA SPEC
main82121-89207i198808-198908
main82121-89208i198808-198908
main82121-89239i198904-198908
main82121-89240i198904-198908
main82121-89241i198904-198908
main82121-89250i198908-199008
CALIFORNIA SPEC
main82121-89251i198908-199008
main82121-89256i198908-199008
main82121-89257i198908-199008
main82121-89269i198908-199008
CALIFORNIA SPEC
main82121-89270i198908-199008
CALIFORNIA SPEC
main82121-89271i198908-199008
main82121-89272i198908-199008
main82121-89285i199008-199108
main82121-89286i199008-199108
CALIFORNIA SPEC
main82121-89287i199008-199108
main82121-89288i199008-199108
CALIFORNIA SPEC
main82121-89289i199008-199108
main82121-89290i199008-199108
CALIFORNIA SPEC
main82121-89296i199008-199101
main82121-89297i199008-199101
82122WIRE, ENGINE, NO.2
main82122-35300i199308-199511
main82122-35320i199308-199511
main82122-89110i198808-199008
main82122-89112i198808-199008
main82122-89132i198908-199008
W(*66)
main82122-89132i199008-199308
main82122-89134i198908-199308
82124WIRE, ENGINE, NO.4
main82124-89113i198808-199208
main82124-89114i198808-199208
main82124-89114i198808-199208
W(TACHOMETER)
82127WIRE, DIFFERENTIAL
main82127-89101i198808-199511
main82127-89102i198808-199511
82131WIRE, COWL
main82131-35310i199101-199108
main82131-35320i199101-199108
W(*66)
main82131-35330i199101-199108
W(CRUISE CONTROL)
main82131-35340i199101-199108
W(*66 & CRUISE CONTROL)
main82131-35350i199101-199108
main82131-35360i199101-199108
W(*66)
main82131-35370i199101-199108
W(CRUISE CONTROL)
main82131-35380i199101-199108
W(*66 & CRUISE CONTROL)
main82131-35390i199101-199108
main82131-35400i199101-199108
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35410i199101-199108
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35420i199101-199108
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35430i199101-199108
main82131-35440i199101-199108
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35450i199101-199108
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35460i199101-199108
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35470i199101-199108
main82131-35480i199101-199108
W(*66)
main82131-35490i199101-199108
main82131-35500i199101-199108
W(*66)
main82131-35510i199101-199108
main82131-35520i199101-199108
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35530i199101-199108
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35540i199101-199108
main82131-35550i199101-199108
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35560i199101-199108
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35570i199101-199108
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35580i199101-199108
main82131-35590i199101-199108
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35600i199101-199108
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35610i199101-199108
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35620i199101-199108
main82131-35630i199101-199108
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35640i199101-199108
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35650i199101-199108
main82131-35660i199101-199108
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35670i199101-199108
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35700i199108-199208
main82131-35701i199208-199308
main82131-35702i199308-199501
main82131-35710i199108-199208
W(*66)
main82131-35711i199208-199308
W(*66)
main82131-35712i199308-199501
W(*66)
main82131-35712i199308-199410
main82131-35720i199108-199208
W(CRUISE CONTROL)
main82131-35721i199208-199308
W(CRUISE CONTROL)
main82131-35722i199308-199501
W(CRUISE CONTROL)
main82131-35730i199108-199208
W(*66 & CRUISE CONTROL)
main82131-35731i199208-199308
W(*66 & CRUISE CONTROL)
main82131-35732i199308-199501
W(*66 & CRUISE CONTROL)
main82131-35820i199108-199208
main82131-35821i199208-199308
main82131-35822i199308-199501
main82131-35830i199108-199208
W(*66)
main82131-35831i199208-199308
W(*66)
main82131-35832i199308-199501
W(*66)
main82131-35840i199108-199208
W(CRUISE CONTROL)
main82131-35841i199208-199308
W(CRUISE CONTROL)
main82131-35842i199308-199501
W(CRUISE CONTROL)
main82131-35850i199108-199208
W(*66 & CRUISE CONTROL)
main82131-35851i199208-199308
W(*66 & CRUISE CONTROL)
main82131-35852i199308-199501
W(*66 & CRUISE CONTROL)
main82131-35860i199108-199208
main82131-35861i199208-199308
main82131-35862i199308-199501
main82131-35870i199108-199208
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35871i199208-199308
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35872i199308-199501
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-35880i199108-199208
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35881i199208-199308
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35882i199308-199501
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-35890i199108-199208
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35891i199208-199308
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-35892i199308-199501
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3D010i199108-199208
main82131-3D011i199208-199308
main82131-3D012i199308-199501
main82131-3D020i199108-199208
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3D021i199208-199308
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3D022i199308-199501
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3D030i199108-199208
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3D031i199208-199308
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3D032i199308-199501
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3D040i199108-199208
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3D041i199208-199308
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3D042i199308-199501
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3D060i199108-199208
main82131-3D061i199208-199308
main82131-3D062i199308-199501
main82131-3D070i199108-199208
W(*66)
main82131-3D071i199208-199308
W(*66)
main82131-3D072i199308-199501
W(*66)
main82131-3D140i199108-199208
main82131-3D141i199208-199308
main82131-3D142i199308-199501
main82131-3D150i199108-199208
W(*66)
main82131-3D151i199208-199308
W(*66)
main82131-3D152i199308-199501
W(*66)
main82131-3D160i199108-199208
main82131-3D161i199208-199308
main82131-3D162i199308-199501
main82131-3D170i199108-199208
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3D171i199208-199308
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3D172i199308-199501
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3D180i199108-199208
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3D181i199208-199308
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3D182i199308-199501
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G080i199108-199208
main82131-3G081i199208-199308
main82131-3G082i199308-199408
main82131-3G083i199408-199511
main82131-3G090i199108-199208
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3G091i199208-199308
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3G092i199308-199408
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3G093i199408-199511
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3G100i199108-199208
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G101i199208-199308
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G102i199308-199408
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G103i199408-199511
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G110i199108-199208
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G111i199208-199308
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G112i199308-199408
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G113i199408-199511
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G120i199108-199208
main82131-3G121i199208-199308
main82131-3G122i199308-199408
main82131-3G123i199408-199511
main82131-3G130i199108-199208
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3G131i199208-199308
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3G132i199308-199408
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3G133i199408-199511
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-3G140i199108-199208
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G141i199208-199308
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G150i199108-199208
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G151i199208-199308
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G152i199308-199408
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G153i199408-199511
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G160i199108-199208
main82131-3G161i199208-199308
main82131-3G162i199308-199408
main82131-3G163i199408-199511
main82131-3G170i199108-199208
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G171i199208-199308
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G172i199308-199408
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G173i199408-199511
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G180i199108-199208
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G181i199208-199308
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G182i199308-199408
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G183i199408-199511
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G190i199108-199208
main82131-3G191i199208-199308
main82131-3G192i199308-199408
main82131-3G193i199408-199511
main82131-3G200i199108-199208
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G201i199208-199308
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G202i199308-199408
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G203i199408-199511
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-3G210i199108-199208
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G211i199208-199308
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G212i199308-199408
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G213i199408-199511
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3G890i199308-199408
W(4-WHEEL *66)
main82131-3G891i199408-199511
W(4-WHEEL *66)
main82131-3N010i199308-199408
ILLUMINATION PACKAGE & W(4-WHEEL *66 & *PW & *RCM)
main82131-3N011i199408-199511
ILLUMINATION PACKAGE & W(4-WHEEL *66 & *PW & *RCM)
main82131-3N040i199308-199408
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3N041i199408-199511
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-3N050i199308-199408
ILLUMINATION PACKAGE & W(4-WHEEL *66 & *PW & *CRC & *RCM)
main82131-3N051i199408-199511
ILLUMINATION PACKAGE & W(4-WHEEL *66 & *PW & *CRC & *RCM)
main82131-3N060i199308-199408
W(4-WHEEL *66)
main82131-3N061i199408-199511
W(4-WHEEL *66)
main82131-3N070i199308-199408
ILLUMINATION PACKAGE & W(4-WHEEL *66 & *PW & *RCM)
main82131-3N071i199408-199511
ILLUMINATION PACKAGE & W(4-WHEEL *66 & *PW & *RCM)
main82131-3N090i199308-199408
ILLUMINATION PACKAGE & W(4-WHEEL *66 & *PW & *CRC & *RCM)
main82131-3N091i199408-199511
ILLUMINATION PACKAGE & W(4-WHEEL *66 & *PW & *CRC & *RCM)
main82131-3N110i199308-199408
main82131-3N111i199408-199511
main82131-3N120i199308-199408
W(4-WHEEL *66)
main82131-3N121i199408-199511
W(4-WHEEL *66)
main82131-3N130i199308-199408
W(*PW & *RCM)
main82131-3N131i199408-199511
W(*PW & *RCM)
main82131-3N140i199308-199408
W(*66 & *PW & *RCM)
main82131-3N141i199408-199511
W(4-WHEEL *66 & *PW & *RCM)
main82131-3N160i199308-199408
main82131-3N161i199408-199511
main82131-3N170i199308-199408
W(4-WHEEL *66)
main82131-3N171i199408-199511
W(4-WHEEL *66)
main82131-3N180i199308-199408
W(*PW & *RCM)
main82131-3N181i199408-199511
W(*PW & *RCM)
main82131-3N190i199308-199408
W(4-WHEEL *66 & *PW & *RCM)
main82131-3N191i199408-199511
W(4-WHEEL *66 & *PW & *RCM)
main82131-89617i198808-198908
main82131-89622i198808-198908
main82131-89623i198808-198908
main82131-89624i198808-198908
main82131-89625i198808-198908
ILLUMINATION PACKAGE
main82131-89626i198808-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89627i198808-198908
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89628i198808-198908
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89639i198808-198908
main82131-89640i198808-198908
ILLUMINATION PACKAGE
main82131-89641i198808-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89642i198808-198908
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89643i198808-198908
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89756i198904-198908
main82131-89757i198904-198908
ILLUMINATION PACKAGE
main82131-89758i198904-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89759i198904-198908
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89760i198904-198908
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89761i198904-198908
main82131-89762i198904-198908
ILLUMINATION PACKAGE
main82131-89763i198904-198908
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89764i198904-198908
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89765i198904-198908
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89820i198908-199008
main82131-89821i198908-199008
main82131-89823i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89824i198908-199008
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89825i198908-199008
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89836i198908-199008
main82131-89838i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89839i198908-199008
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89840i198908-199008
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89843i198908-199008
main82131-89847i198908-199008
main82131-89848i198908-199008
main82131-89851i198908-199008
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89852i198908-199008
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89853i198908-199008
main82131-89855i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89856i198908-199008
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89857i198908-199008
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89858i198908-199008
main82131-89860i198908-199008
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89861i198908-199008
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89862i198908-199008
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89868i198908-199008
main82131-89871i198908-199008
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89872i198908-199008
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89873i198908-199008
main82131-89876i198908-199008
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89877i198908-199008
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89A26i198908-199008
main82131-89A31i198908-199008
main82131-89A58i199008-199101
main82131-89A59i199008-199101
W(*66)
main82131-89A60i199008-199101
W(CRUISE CONTROL)
main82131-89A61i199008-199101
W(*66 & CRUISE CONTROL)
main82131-89A70i199008-199101
main82131-89A71i199008-199101
W(*66)
main82131-89A72i199008-199101
W(CRUISE CONTROL)
main82131-89A73i199008-199101
W(*66 & CRUISE CONTROL)
main82131-89A74i199008-199101
main82131-89A75i199008-199101
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89A76i199008-199101
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89A77i199008-199101
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89A78i199008-199101
main82131-89A79i199008-199101
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89A80i199008-199101
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89A81i199008-199101
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89A83i199008-199101
main82131-89A84i199008-199101
W(*66)
main82131-89A91i199008-199101
main82131-89A92i199008-199101
W(*66)
main82131-89A93i199008-199101
main82131-89A94i199008-199101
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89A95i199008-199101
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89B81i199008-199101
main82131-89B82i199008-199101
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89B83i199008-199101
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89B84i199008-199101
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89B85i199008-199101
main82131-89B86i199008-199101
ILLUMINATION PACKAGE & W(*PW & *RCM)
main82131-89B87i199008-199101
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89B88i199008-199101
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89B93i199008-199101
main82131-89B94i199008-199101
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89B95i199008-199101
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
main82131-89B96i199008-199101
main82131-89B97i199008-199101
ILLUMINATION PACKAGE & W(CRUISE CONTROL)
main82131-89B98i199008-199101
ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM)
82210CFUSIBLE LINK
main90982-08188i198808-199511
30A,TERM.:FEMALE,PNK
main90982-08189i198808-199511
40A,TERM.:FEMALE,GRN
main90982-08202i199308-199511
60A,TERM.:MALE,YEL
main90982-08203i198808-199511
80A,TERM.:MALE,BLK
main90982-08246i198904-199511
100A,TERM.:MALE,BLUE
main90982-08253i198812-198912
80A,TERM.:MALE,BLK
sub90982-08203
82261AWIRE, ALTERNATOR
main82261-35310i199108-199208
main82261-35311i199208-199511
main82261-35320i199108-199208
main82261-35321i199208-199511
main82261-89103i198808-199008
main82261-89116i198904-199008
main82261-89118i199008-199108
main82261-89119i199008-199108
82620BLOCK ASSY, FUSIBLE LINK
main82620-35020i199108-199511
main82620-89101i198808-199108
82670BLOCK ASSY, JUNCTION, NO.1
main82670-89107i198808-199511
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-89123i198808-199511
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-89130i198808-199511
82823CAP, TERMINAL, NO.1
main82823-17010i198904-199008
main82823-22050i199108-199511
82824CONNECTOR, WIRING HARNESS
main82824-32030i199008-199308
W(*ADD)
main82824-32030i199008-199108
CALIFORNIA SPEC OR W(*ADD)
main82824-32030i198808-199308
CALIFORNIA SPEC
main82824-32030i198808-199511
main82824-35020i199108-199308
EGR GAS TEMP. SENSOR;W(*ADD)
8401
8719
9011906390
main90119-06390
9017906158
main90179-06158
9161161016
main91611-61016
9161161020
main91611-61020
9165640616
main91656-40616
91656F0616
main91656-F0616
91666F0618
main91666-F0618

25 parts on this diagram · 14 diagrams in section

WIRING & CLAMP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
