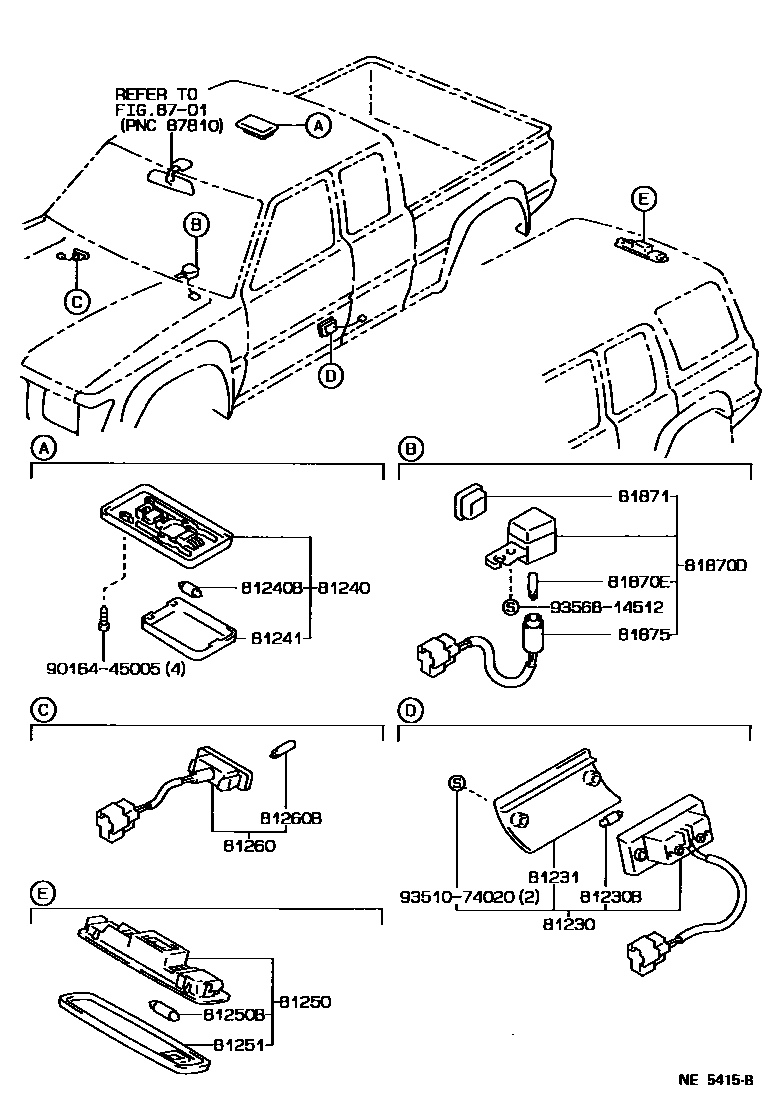

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-89104×2iRN101,110,13#,VZN100,110,13#..SR5198808-199108

81230BBULB(FOR COURTESY LAMP)

main90981-14001×2iRN101,110,13#,VZN100,110,13#..SR5198808-199108

12V 3W

81231LENS, COURTESY LAMP

main81231-89104×2iRN101,110,13#,VZN100,110,13#..SR5198808-199108

81240LAMP ASSY, ROOM, NO.1

main81240-89103-02iRN110,VZN110..DLX199008-199108

RED,TRIM3#

main81240-89103-03iRN110,13#,VZN110,13#198808-199008

GRAY,TRIM1#

main81240-89103-04iRN110,VZN110..DLX199008-199108

BLUE,TRIM8#

main81240-89103-06iRN110,VZN110..DLX199008-199108

BROWN,TRIM4#

main81240-89103-E0iRN13#,VZN13#199108-199308

TAN,TRIM4#

main81240-89103-E1iRN13#,VZN13#199308-199511

OAK,TRIM4#

main81240-89103-J0iRN13#,VZN13#199408-199511

BLUE,TRIM8#

main81240-89103-S7iRN110,13#,VZN110,13#199303-199501

MEDIUM GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iRN110,13#,VZN110,13#198808-199108

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iRN110,13#,VZN110,13#198808-199511

81250LAMP ASSY, ROOM, NO.2

main81250-89102iRN13#,VZN13#198904-199511

81250BBULB, ROOM LAMP, NO.2

main90981-11004iRN13#,VZN13#198904-199511

12V 10W

81251LENS, ROOM LAMP, NO.2

main81251-89102iRN13#,VZN13#198904-199511

81260LAMP ASSY, GLOVE BOX

main81260-89104iVZN131199308-199511

81260BBULB(FOR GLOVE BOX)

main90981-11018iVZN131199308-199511

12V 1.2W W/O SOCKET

81870DLAMP ASSY, KEY CYLINDER

main81870-35010iRN13#,VZN110,13#..SR5199108-199511

main81870-89102iRN101,110,13#,VZN100,110,13#..SR5198808-199108

81870EBULB, KEY CYLINDER LAMP

main90981-11018iRN101,110,13#,VZN100,110,13#..SR5198808-199108

12V 1.2W W/O SOCKET

81871LENS, KEY ILLUMINATION

main81871-89102iRN101,110,13#,VZN100,110,13#..SR5198808-199108

81875SOCKET & WIRE, KEY CYLINDER LAMP

main81875-35010iRN13#,VZN110,13#..SR5199108-199511

main81875-89102iRN101,110,13#,VZN100,110,13#..SR5198808-199108

8701

9016445005

main90164-45005

9351074020

main93510-74020

9356814512

main93568-14512

19 parts on this diagram · 1 diagram in section
