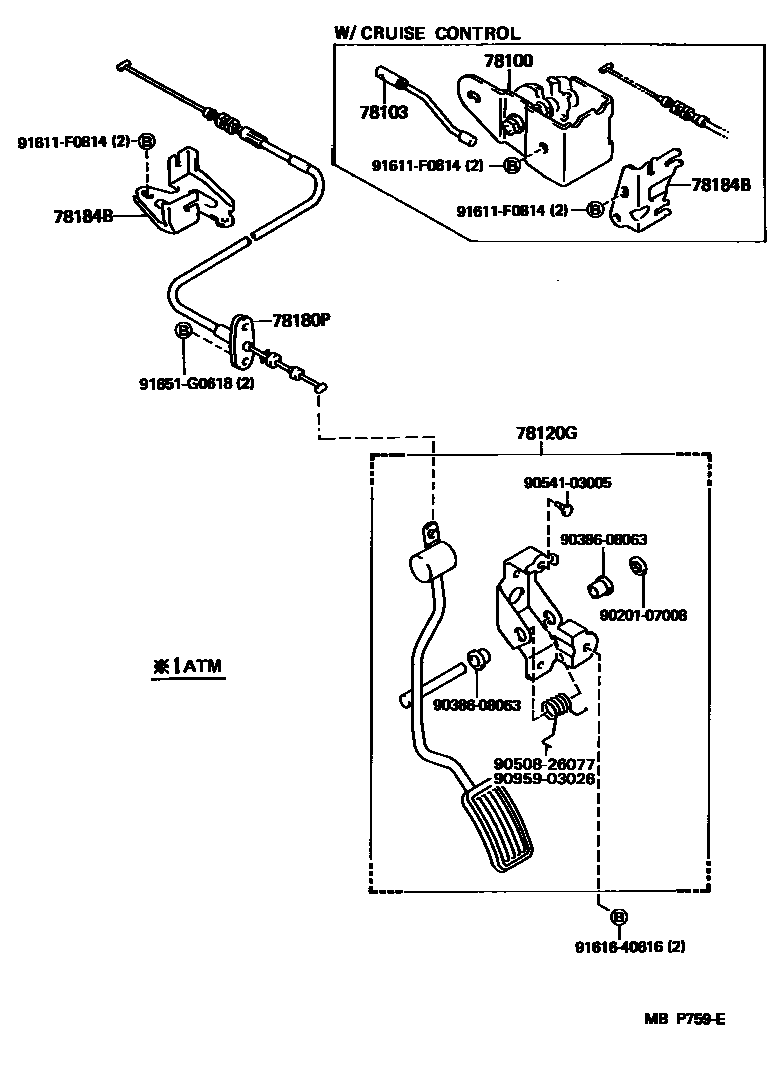

ACCELERATOR LINK

0001 1 0002 1

78100LINK ASSY, ACCELERATOR

main78100-35060iRN101,110,13#..SR5198808-199108

sub78100-35061

main78100-35061iRN131;RN10#,110,130..USA199108-199511

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main21905-35020iRN101,110,13#..SR5198808-199108

sub21905-35021

main21905-35021iRN131;RN10#,110,130..USA199108-199511

78120GROD ASSY, ACCELERATOR PEDAL

main78120-89139iVZN110,13#..4FC199101-199511

main78120-89143iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

main78120-89144iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-35030iVZN10#,110,13#199108-199308

sub78180-35180

main78180-35050iRN10#,110,13#199108-199403

sub78180-35052

main78180-35052iRN10#,110,13#199403-199511

main78180-35060iRN131;RN10#,110,130..USA199108-199411

W(CRUISE CONTROL)

main78180-35170iRN131;RN101,110,130..USA199411-199511

W(CRUISE CONTROL)

main78180-35180iVZN100,110,13#199308-199511

main78180-89154iRN10#,110,13#198808-199108

sub78180-35050

main78180-89159iRN131;RN10#,110,130..USA198808-199108

W(CRUISE CONTROL)

sub78180-35060

main78180-89160iVZN10#,110,13#198808-199108

78184BBRACKET, ACCELERATOR CONTROL CABLE

main21928-35020iRN101,110,13#..SR5198808-199108

W(CRUISE CONTROL)

sub21928-35021

main21928-35021iRN131;RN10#,110,130..USA199108-199511

W(CRUISE CONTROL)

main78184-35040iRN10#,110,13#198808-199511

main78184-35060iVZN10#,110,13#198808-199511

9020107008

main90201-07008

9038608063

main90386-08063

9050826077

main90508-26077

9054103005

main90541-03005

9095903026

main90959-03026

91611F0814

main91611-F0814

9161640616

main91616-40616

91651G0618

main91651-G0618

13 parts on this diagram · 2 diagrams in section
