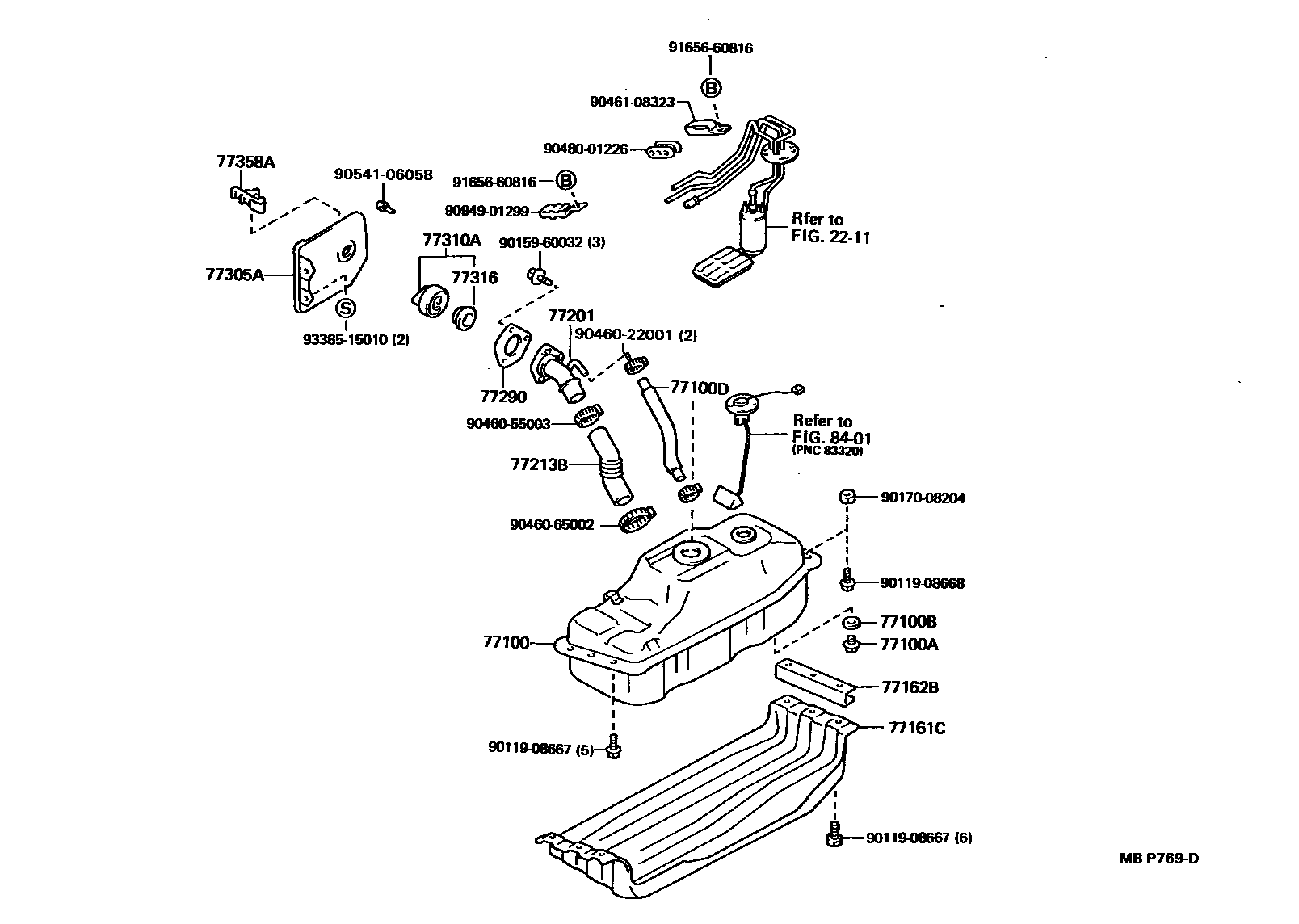

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

2211

77100TANK ASSY, FUEL

main77001-35972iRN101,VZN100199008-199108

sub77001-359A6

main77001-35972iRN101,VZN100..CND198808-199008

COLD SPEC

sub77001-359A6

main77001-35973iRN106,110,VZN105,110198808-199108

sub77001-359A7

main77001-35981iRN13#,VZN13#198904-199511

main77001-35981iVZN130..4FC199408-199511

BRAZIL & IRELAND SPEC & W(P225/75R15 TIRE)

main77001-35998iVZN130199108-199511

W(10.5R15 7JJ TIRE)

sub77001-35999

main77001-35999iVZN130199108-199511

W(COLD SPEC & 10.5R15 7JJ TIRE)

main77001-35999iVZN131199108-199511

W(10.5R15 7JJ TIRE)

main77001-359A6iRN101,VZN100199108-199501

sub77001-3D932

main77001-359A7iRN106,110,VZN105,110199108-199501

sub77001-3D928

77100APLUG(FOR FUEL TANK)

main90105-12018iRN10#,110,13#,VZN10#,110,13#198808-199511

77100BGASKET(FOR FUEL TANK)

main90430-12245iRN10#,110,VZN10#,110198808-199511

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77408-35020iRN10#,110,VZN10#,110198808-199501

L=340

main77408-35040iRN13#,VZN13#198904-199511

L=507

77161CPROTECTOR, FUEL TANK, LOWER

main77161-35080iRN10#,110,VZN10#,110198808-199501

main77161-35110iRN13#,VZN13#198904-199511

main77161-35120iVZN13#199108-199511

W(10.5R15 7JJ TIRE)

77162BBRACKET, FUEL TANK REAR PROTECTOR

main77162-35020iRN10#,110,VZN10#,110198808-199501

main77162-35060iRN13#,VZN13#198904-199511

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35360iRN10#,110,VZN10#,110198808-199501

main77201-35370iRN13#,VZN13#198904-199511

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35230iRN13#,VZN13#198904-199511

main77213-35290iRN10#,110,VZN10#,110198808-199501

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-89102iRN13#,VZN13#198904-199511

main77291-35030iRN10#,110,VZN10#,110198808-199501

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-89108iRN10#,110,VZN10#,110198808-199501

main77350-35020iRN13#,VZN13#198904

77310ACAP ASSY, FUEL TANK

main77310-35080iRN10#..W;RN10#..4FC;RN110..USA;RN10#..G..USA;RN110..W..CND;RN13#,VZN10#,110,13#198808-199511

sub77310-12140

77316GASKET, FUEL TANK CAP

main77316-16010iRN10#,110,13#,VZN10#,110,13#198808-199511

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-24010iRN10#,110,VZN10#,110..CBU198808-198902

main77358-89101iRN10#,110,VZN10#,110..IV3198901-199501

8401

9011908667

main90119-08667

9011908668

main90119-08668

9015960032

main90159-60032

9017008204

main90170-08204

9046022001

main90460-22001

9046055003

main90460-55003

9046065002

main90460-65002

9046108323

main90461-08323

9048001226

main90480-01226

9054106058

main90541-06058

9094901299

main90949-01299

9165660816

main91656-60816

9338515010

main93385-15010

28 parts on this diagram · 6 diagrams in section
