REAR DOOR PANEL & GLASS
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67125AREINFORCEMENT, REAR DOOR OUTSIDE PANEL, RH
67126AREINFORCEMENT, REAR DOOR OUTSIDE PANEL, LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67841BCOVER, REAR DOOR SERVICE HOLE
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=4.0,BLUE
*TT,T=4.0,BRONZE
*SERT,T=4.0,BRONZE
*SERT,T=4.0,GRAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=4.0,BLUE
*TT,T=4.0,BRONZE
*SERT,T=4.0,BRONZE
*SERT,T=4.0,GRAY
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=4.0,BLUE
*TT,T=4.0,BRONZE
*SERT,T=4.0,BRONZE
*SERT,T=4.0,GRAY
68124GLASS, REAR DOOR WINDOW, LH
*TEM,T=4.0
*TT,T=4.0,BLUE
*TT,T=4.0,BRONZE
*SERT,T=4.0,BRONZE
*SERT,T=4.0,GRAY
68142BRUN, REAR DOOR WINDOW, RH
68152BRUN, REAR DOOR WINDOW, LH
68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
VENT WINDOW-RH,LH
LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)
sub68212-89101
68211DCLIP, DOOR GLASS WEATHERSTRIP
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68617APIN, REAR DOOR CHECK
75718COVER, FRONT DOOR BELT MOULDING END, REAR RH
W(FRONT DOOR VENTILATOR WINDOW)
75719COVER, FRONT DOOR BELT MOULDING END, REAR LH
W(FRONT DOOR VENTILATOR WINDOW)
9011906430
main90119-06430
9015140018
main90151-40018
9017906069
main90179-06069
9054109062
main90541-09062
9095001620
main90950-01620
9165640616
main91656-40616

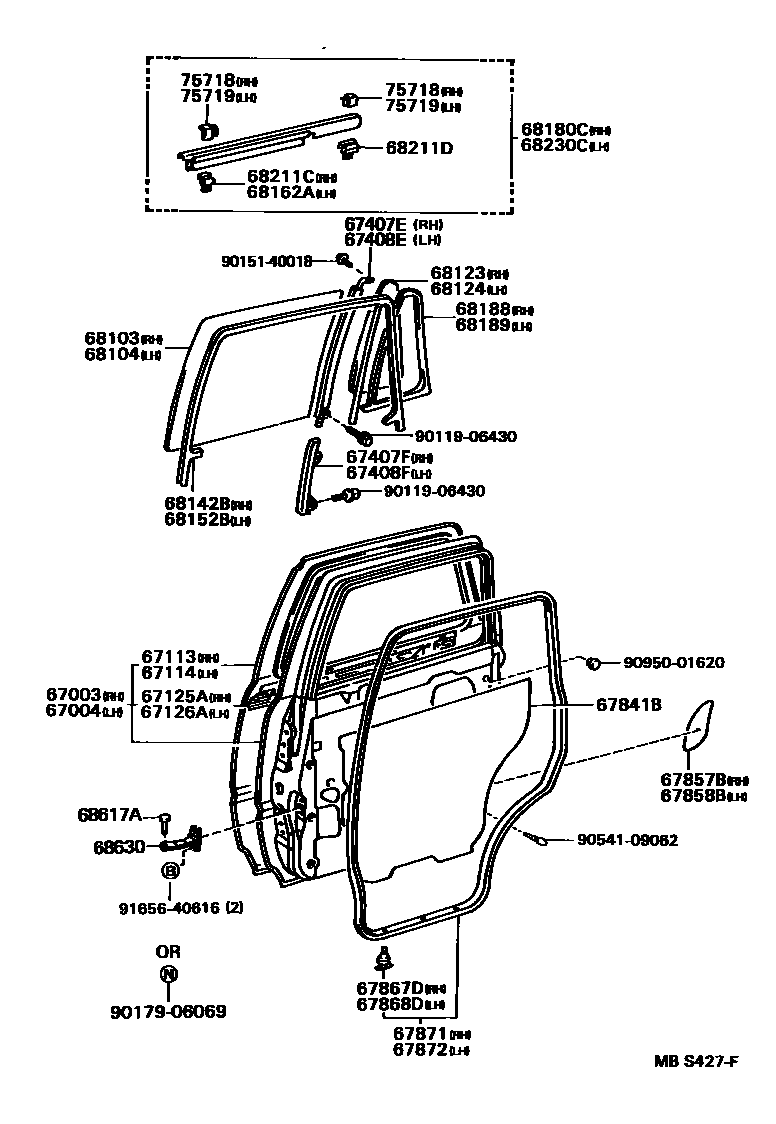

40 parts on this diagram · 2 diagrams in section
