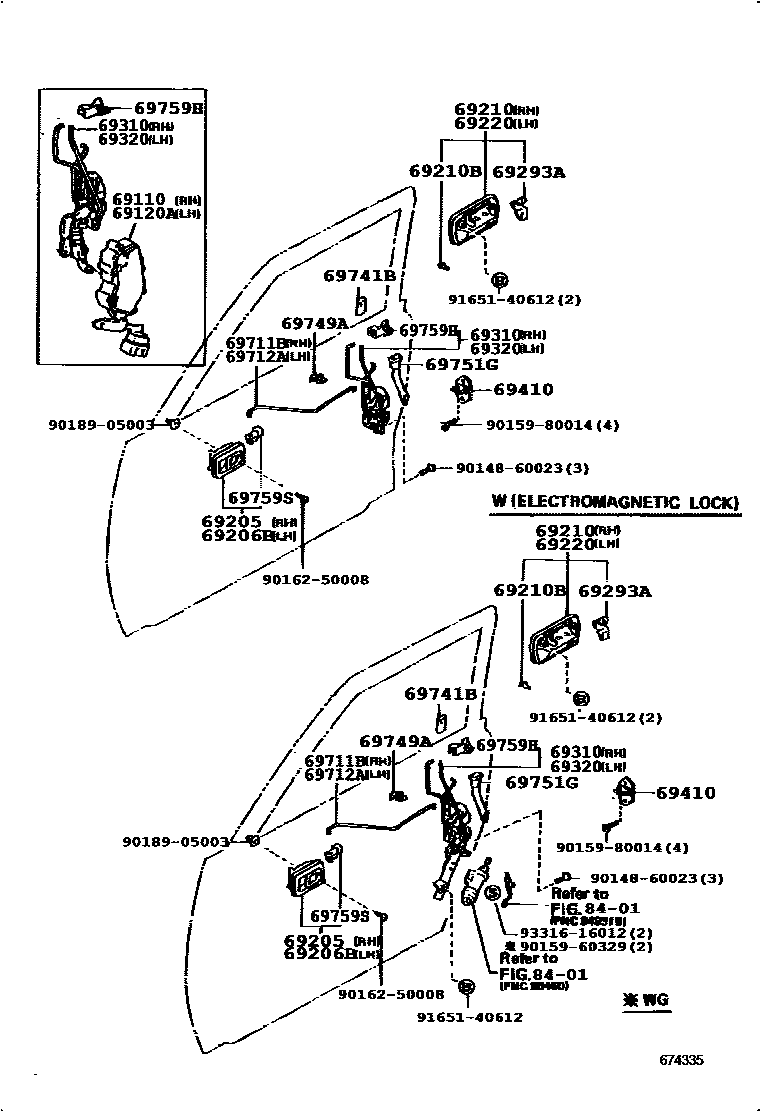

FRONT DOOR LOCK & HANDLE

0001 1 0003 1

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-35010iRN13#,VZN110,13#..SR5199108-199511

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-35010iRN13#,VZN110,13#..SR5199108-199511

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-89105-02iRN13#,VZN13#..2D198808-199108

RED,TRIM3#

sub69205-89105

sub69205-89107

main69205-89105-02iRN10#,110,13#,VZN10#,110,13#..4D,T1198808-199108

RED,TRIM3#,RH

sub69205-89105

sub69205-89107

main69205-89105-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89105-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub69205-89105

sub69205-89107

main69205-89105-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-B0iRN13#,VZN13#..2D198901-199511

MEDIUM GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89105-B0iRN10#,110,13#,VZN10#,110,13#..4D,T1198901-199108

MEDIUM GRAY,TRIM1#,RH

sub69205-89105

sub69205-89107

main69205-89105-E0iRN13#,VZN13#..2D198901-199108

BROWN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-E0iRN13#,VZN13#..2D198901-199108

BROWN,TRIM4#,RH

sub69205-89105

sub69205-89107

main69205-89105-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-J0iRN10#,110,13#,VZN10#,110,13#..4D,T1198901-199511

MEDIUM BLUE,TRIM8#

sub69205-89105

sub69205-89107

main69205-89105-J0iRN13#,VZN13#..2D198901-199108

MEDIUM BLUE,TRIM8#,RH

sub69205-89105

sub69205-89107

main69206-89106-02iRN13#,VZN13#..2D198904-199108

RED,TRIM3#,LH

sub69206-89106

main69206-89106-03iRN13#,VZN13#..2D198904-199108

GRAY,TRIM1#,LH

sub69206-89106

main69206-89106-04iRN13#,VZN13#..2D198904-199108

BLUE,TRIM8#,LH

sub69206-89106

main69206-89106-06iRN13#,VZN13#..2D198904-199108

BROWN,TRIM4#,LH

sub69206-89106

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-89105-02iRN10#,110,13#,VZN10#,110,13#198808-199108

RED,TRIM3#

sub69206-89105

sub69206-89107

main69206-89105-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub69206-89105

sub69206-89107

main69206-89105-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-B0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-E0iRN10#,110,13#,VZN10#,110,13#198901-199108

BROWN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-J0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM BLUE,TRIM8#

sub69206-89105

sub69206-89107

main69206-89106-B0iRN131,VZN13#..2D199108-199308

GRAY,TRIM1#

sub69206-89106

main69206-89106-J0iRN131,VZN13#..2D199108-199301

BLUE,TRIM8#

sub69206-89106

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-89110iRN10#,110,13#,VZN10#,110,13#198808-199511

NO PAINT REQ.

main69210-89111iRN10#,110,13#,VZN10#,110,13#198808-199511

PLATED

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iRN10#,110,13#,VZN10#,110,13#198808-199511

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-89110iRN10#,110,13#,VZN10#,110,13#198808-199511

NO PAINT REQ.

main69220-89111iRN10#,110,13#,VZN10#,110,13#198808-199511

PLATED

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iRN10#,110,13#,VZN10#,110,13#198808-199511

RH

main69293-12040iRN10#,110,13#,VZN10#,110,13#198808-199511

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-35040iVZN110..SR5199108-199308

W(*PW)

main69310-35060iRN131,VZN13#..2D199108-199308

W(*PW)

main69310-35090iRN13#,VZN13#..4D199108-199308

W(*PW)

main69310-35120iRN10#,110,VZN100,110199308-199501

main69310-35130iVZN110..SR5199308-199501

W(*PW)

main69310-35200iRN13#,VZN13#199308-199511

sub69310-35180

main69310-35210iRN13#,VZN13#199308-199511

W(*PW)

main69310-89119iRN10#,110,VZN10#,110198808-199308

main69310-89121iRN101,110,VZN100,110..SR5198808-199108

W(*PW)

main69310-89125iRN13#,VZN13#..4D198904-199308

main69310-89126iRN13#,VZN13#..2D198904-199308

main69310-89127iRN13#,VZN13#..4D198904-199108

W(*PW)

main69310-89128iRN13#,VZN13#..2D198904-199108

W(*PW)

69320LOCK ASSY, FRONT DOOR, LH

main69320-35040iRN131,VZN110,13#..(2D,T1)..SR5199108-199308

W(*PW)

main69320-35080iRN13#,VZN13#..4D199108-199308

W(*PW)

main69320-35110iRN10#,110,VZN100,110199308-199501

main69320-35120iVZN110..SR5199308-199501

W(*PW)

main69320-35180iRN13#,VZN13#199308-199511

sub69320-35190

main69320-35190iRN13#,VZN13#199308-199511

W(*PW)

main69320-89118iRN10#,110,13#,VZN10#,110,13#..2D,T1198808-199308

main69320-89120iRN101,110,13#,VZN100,110,13#..(2D,T1)..SR5198808-199108

W(*PW)

main69320-89124iRN13#,VZN13#..4D198904-199308

main69320-89125iRN13#,VZN13#..4D198904-199108

W(*PW)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iRN10#,110,13#,VZN10#,110,13#198808-199511

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-89104iRN10#,110,VZN10#,110198808-199501

main69711-89105iRN13#,VZN13#..4D198904-199511

main69711-89106iRN13#,VZN13#..2D198904-199308

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-89104iRN10#,110,13#,VZN10#,110,13#..2D,T1198808-199501

main69712-89105iRN13#,VZN13#..4D198904-199511

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-89104-02iRN13#,VZN110,13#;RN10#,110,VZN10#..DLX199004-199108

RED,TRIM3#

sub69741-89104

sub69741-12040

main69741-89104-03iVZN110..SR5199004-199108

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-04iRN10#,110,13#,VZN10#,110,13#199008-199108

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-89104-06iRN10#,110,13#,VZN10#,110,13#199008-199108

BROWN,TRIM4#

sub69741-89104

sub69741-12040

main69741-89104-B0iRN10#,110,13#,VZN10#,110,13#199108-199206

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-B1iRN10#,110,13#,VZN10#,110,13#199206-199511

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-E2iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub69741-89104

sub69741-12040

main69741-89104-E3iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub69741-89104

sub69741-12040

main69741-89104-J0iRN10#,110,13#,VZN10#,110,13#199108-199206

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-89104-J1iRN10#,110,13#,VZN10#,110,13#199206-199511

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-90K00-12iRN10#,110,13#,VZN10#,110,13#198808-199004

RED,TRIM3#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-23iRN10#,110,VZN10#,110198808-198901

MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-44iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-46iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-B1iRN10#,110,13#,VZN10#,110,13#198901-199004

MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E1iRN10#,110,13#,VZN10#,110,13#198901-199004

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J1iRN10#,110,13#,VZN10#,110,13#198901-199004

MEDIUM BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-89101iRN10#,110,13#,VZN10#,110,13#198808-199511

69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-89103iRN10#,110,13#,VZN10#,110,13#..2D,T1198808-199501

RH

main69751-89106iRN13#,VZN13#..4D198904-199511

RH

main69752-89102iRN10#,110,13#,VZN10#,110,13#..2D,T1198808-199501

LH

main69752-89103iRN13#,VZN13#..4D198904-199511

LH

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iRN10#,110,13#,VZN10#,110,13#198808-199511

YELLOW

main69759-20050iRN10#,110,13#,VZN10#,110,13#..4D,T1198808-199511

BROWN

main69759-20100iVZN110..SR5199308-199501

W(*PW),RED

main69759-20100iRN10#,110,13#,VZN10#,110,13#198808-199511

RED

main69759-20110iRN10#,110,13#,VZN10#,110,13#198808-199511

BLACK

main69759-24010iRN10#,110,13#,VZN10#,110,13#198808-199511

NATURAL

main69759-24020iRN10#,110,13#,VZN10#,110,13#198808-199511

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iRN10#,110,13#,VZN10#,110,13#198808-199511

RH

main69759-20070iRN10#,110,13#,VZN10#,110,13#198808-199511

LH

8401

9014860023

main90148-60023

9015960329

main90159-60329

9015980014

main90159-80014

9016250008

main90162-50008

9018905003

main90189-05003

9165140612

main91651-40612

9331616012

main93316-16012

26 parts on this diagram · 2 diagrams in section
