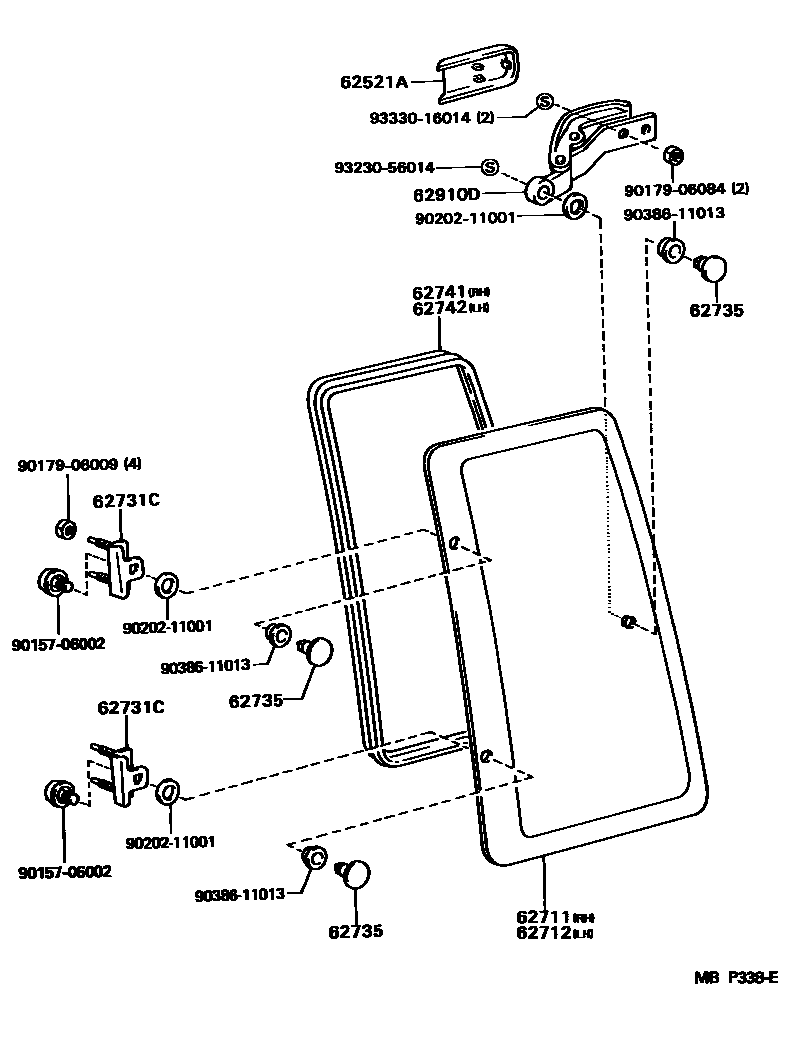

SIDE WINDOW

0001 1 0002 1 0003 1

62521ACOVER, QUARTER TRIM

main62521-89102-02iRN110,VZN110..SR5198808-199108

RED,TRIM3#

sub62521-89102

main62521-89102-02iRN110,VZN110..SR5198808-199108

W(PRIVATE GLASS),RED,TRIM3#

sub62521-89102

main62521-89102-03iRN110,VZN110..SR5198808-199108

W(PRIVATE GLASS),GRAY,TRIM1#

sub62521-89102

main62521-89102-03iRN110,13#,VZN110,13#..2D,T1198808-199303

GRAY,TRIM1#

sub62521-89102

main62521-89102-04iRN110,VZN110..SR5198808-199108

W(PRIVATE GLASS),BLUE,TRIM8#

sub62521-89102

main62521-89102-04iRN110,13#,VZN110,13#..2D,T1198808-199303

BLUE,TRIM8#

sub62521-89102

main62521-89102-06iRN110,VZN110..SR5198808-199108

W(PRIVATE GLASS),BROWN,TRIM4#

sub62521-89102

main62521-89102-06iRN110,13#,VZN110,13#..2D,T1198808-199108

BROWN,TRIM4#

sub62521-89102

main62521-89102-E0iRN131,VZN13#..2D199108-199308

TAN,TRIM4#

sub62521-89102

main62521-89102-R9iRN110,131,VZN110,13#..2D,T1199303-199501

BLUE,TRIM8#

sub62521-89102

main62521-89102-S4iRN110,131,VZN110,13#..2D,T1199303-199501

GRAY,TRIM1#

sub62521-89102

62711GLASS, QUARTER WINDOW, RH

main62711-89113iRN110,VZN110..DLX..CND198808-199501

*TEM,T=4.0

sub62711-89116

main62711-89114iVZN110..SR5198808-199108

*TT,T=4.0,BRONZE

main62711-89115iVZN110..SR5198808-199108

*SERT,T=4.0,BRONZE,W(PRIVATE GLASS)

main62711-89116iVZN110..SR5..CND;RN110,VZN110..USA198808-199501

*TT,T=4.0

main62711-89117iRN110,VZN110..SR5198808-199501

*SERT,T=4.0,GRAY,W(PRIVATE GLASS)

62712GLASS, QUARTER WINDOW, LH

main62712-89113iRN110;VZN110..DLX198808-199501

*TEM,T=4.0

sub62712-89116

main62712-89114iVZN110..SR5198808-199108

*TT,T=4.0,BRONZE

main62712-89115iVZN110..SR5198808-199108

*SERT,T=4.0,BRONZE,W(PRIVATE GLASS)

main62712-89116iRN110..SR5198808-199501

*TT,T=4.0

main62712-89117iRN110,VZN110..SR5198808-199501

*SERT,T=4.0,GRAY,W(PRIVATE GLASS)

62731CHINGE, QUARTER WINDOW, RH

main62731-89101iRN110,VZN110198808-199501

RH

main62731-89102iRN110,VZN110198808-199501

LH

main62731-89103iRN13#,VZN13#..2D198904-199308

62735RETAINER, QUARTER WINDOW HINGE

main62735-89102iRN110,VZN110..SR5198808-199108

W(PRIVATE GLASS)

main62735-89102iRN110,VZN110198808-199501

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-89102iRN110,VZN110198808-199501

main62741-89103iRN13#,VZN13#..2D198904-199308

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-89102iRN110,VZN110198808-199108

RH

main62742-89102iRN13#,VZN13#..2D198904-199308

main62742-89103iRN110,VZN110198808-199108

LH

main62742-89103iRN110,VZN110199108-199501

62910DLOCK ASSY, QUARTER WINDOW

main62910-89102-02iRN110,VZN110..SR5198808-199108

RED,TRIM3#

sub62910-89102

main62910-89102-02iRN110,VZN110198808-199108

W(PRIVATE GLASS),RED,TRIM3#

sub62910-89102

main62910-89102-03iRN110,VZN110198808-199108

W(PRIVATE GLASS),GRAY,TRIM1#

sub62910-89102

main62910-89102-03iRN110,VZN110198808-199108

GRAY,TRIM1#

sub62910-89102

main62910-89102-04iRN110,VZN110198808-199108

BLUE,TRIM8#

sub62910-89102

main62910-89102-04iRN110,VZN110..SR5198808-199108

W(PRIVATE GLASS),BLUE,TRIM8#

sub62910-89102

main62910-89102-06iRN110,VZN110198808-199108

W(PRIVATE GLASS),BROWN,TRIM4#

sub62910-89102

main62910-89102-06iRN110,VZN110..SR5198808-199108

BROWN,TRIM4#

sub62910-89102

main62910-89102-R9iRN110,VZN110199108-199501

BLUE,TRIM8#

sub62910-89102

main62910-89102-S4iRN110,VZN110199108-199501

GRAY,TRIM1#

sub62910-89102

main62910-89103-02iRN13#,VZN13#..2D198904-199108

RED,TRIM3#

sub62910-89103

main62910-89103-03iRN13#,VZN13#..2D198904-199308

GRAY,TRIM1#

sub62910-89103

main62910-89103-04iRN13#,VZN13#..2D198904-199308

BLUE,TRIM8#

sub62910-89103

main62910-89103-06iRN13#,VZN13#..2D198904-199108

BROWN,TRIM4#

sub62910-89103

main62910-89103-E0iRN131,VZN13#..2D199108-199308

TAN,TRIM4#

sub62910-89103

9015706002

main90157-06002

9017906009

main90179-06009

9017906084

main90179-06084

9020211001

main90202-11001

9038611013

main90386-11013

9323056014

main93230-56014

9333016014

main93330-16014

15 parts on this diagram · 3 diagrams in section
