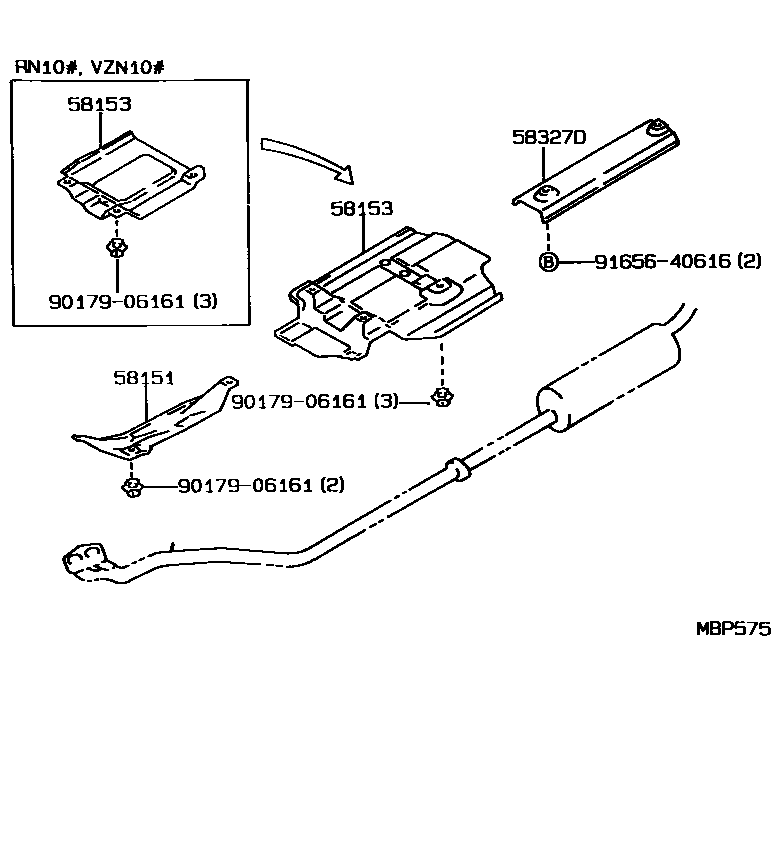

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-89107iRN10#,110,VZN10#,110198905-199501

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-35010iRN101,110,130..USA199208-199511

CALIFORNIA SPEC

main58153-89111iRN10#,13#,VZN10#,13#198808-199511

main58153-89112iRN110,VZN110198808-199501

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-89106iRN10#,110,VZN10#,110198808-199501

9017906161

main90179-06161

9165640616

main91656-40616

5 parts on this diagram · 2 diagrams in section
