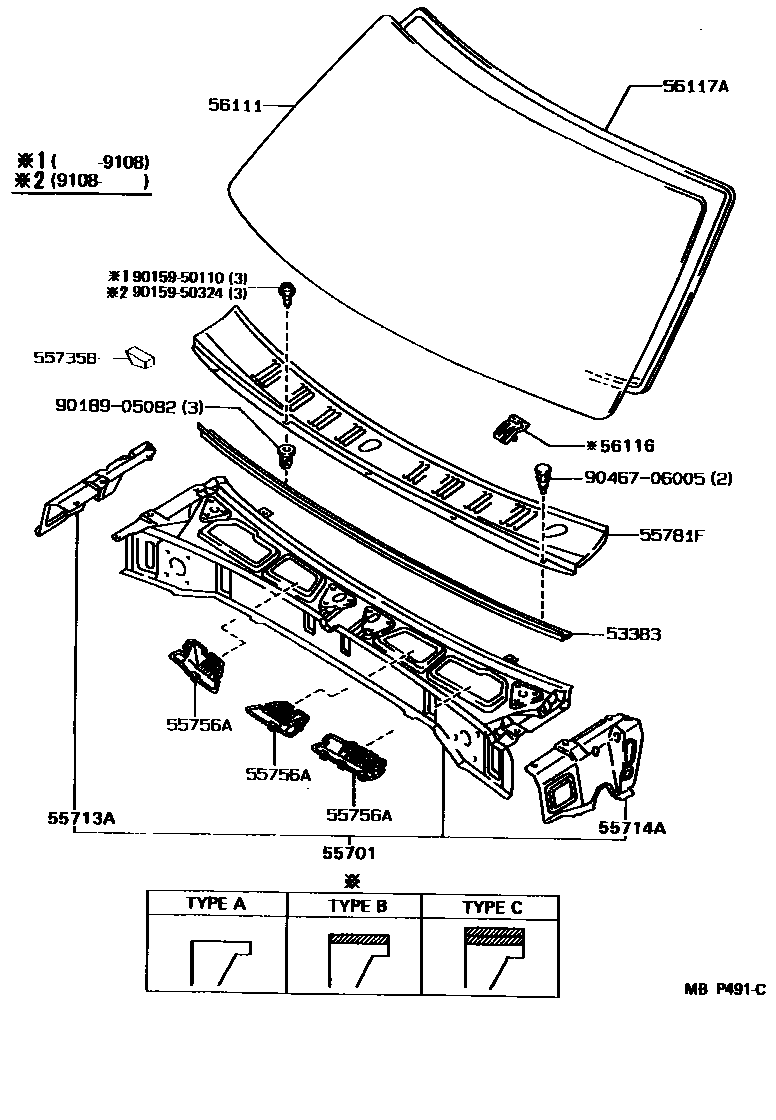

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-89106iRN10#,110,13#,VZN10#,110,13#198808-199511

55701PANEL SUB-ASSY, COWL

main55700-89145iRN10#,110,13#198901-198906

PLANT NO. A51,A52

sub55700-89146

main55700-89146iVZN10#,110,13#198901-199005

PLANT NO. P11

main55700-89146iRN10#,110,13#,VZN10#,110,13#198901-199005

PLANT NO. A51,A52

main55700-89146iRN10#,110,13#199005-199108

PLANT NO.A51,A52

main55700-89146iRN10#,110,13#,VZN10#,110,13#198808-199511

55713APANEL, COWL TOP SIDE, RH

main55713-89105iRN10#,110,13#,VZN10#,110,13#198808-199511

55714APANEL, COWL TOP SIDE, LH

main55714-89106iRN10#,110,13#,VZN10#,110,13#198808-199511

55735BSEAL, FRONT AIR SHUTTER

main55735-89101iRN10#,110,13#,VZN10#,110,13#198808-199511

55756ASCREEN, HEATER AIR DUCT

main55756-89108iRN10#,110,131,VZN10#,110,131..CND198808-199511

LH

main55756-89109iRN10#,110,131,VZN10#,110,131..CND198808-199511

CENTER

main55756-89111iRN10#,110,130,VZN10#,110,130..USA198808-199511

RH

55781FLOUVER, COWL TOP VENTILATOR

main55781-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

56111GLASS, WINDSHIELD

main56111-89147iVZN100,110,13#..SR5198808-199511

*TL,T=5.3,BLUE

sub56111-35410

main56111-89148iVZN13#198808-199511

*TL,T=5.3,BRONZE

main56111-89150iRN130;VZN110..DLX..CND;RN10#,110,131,VZN100..CND198808-199511

*LAM,T=5.3

sub56111-89147

56116SPACER, WINDSHIELD GLASS

main56116-89104iRN10#,110,13#,VZN10#,110,13#198808-199511

TYPE A

main56116-89105iRN10#,110,13#,VZN10#,110,13#198808-199511

TYPE B

main56116-89106iRN10#,110,13#,VZN10#,110,13#198808-199511

TYPE C

56117ADAM, WINDOW GLASS ADHESIVE

main56117-89104iRN10#,110,13#,VZN10#,110,13#198808-199511

9015950110

main90159-50110

9015950324

main90159-50324

9018905082

main90189-05082

9046706005

main90467-06005

14 parts on this diagram · 1 diagram in section
