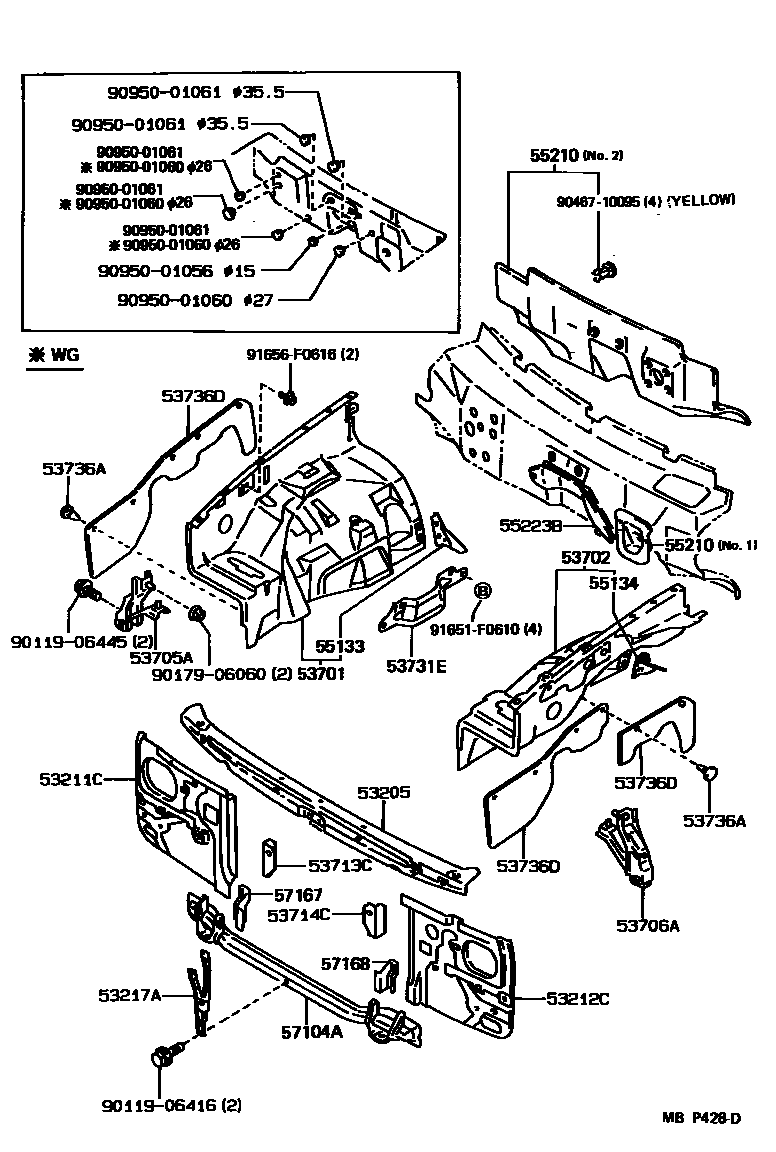

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-35010iRN13#,VZN13#199108-199308

main53216-35011iRN13#,VZN13#199308-199511

sub53216-35010

main53216-89110iRN10#,110,VZN10#,110198808-199501

53211CSUPPORT, RADIATOR, RH

main53202-35050iRN13#,VZN13#199308-199409

sub53202-35080

main53202-35080iRN13#,VZN13#199409-199511

main53211-35040iRN13#,VZN13#199108-199308

sub53202-35050

main53211-89123iRN10#,110,VZN10#,110198808-198908

sub53202-35020

main53211-89124iRN10#,110,VZN10#,110198904-199501

53212CSUPPORT, RADIATOR, LH

main53203-35060iRN13#,VZN13#199308-199409

sub53203-35090

main53203-35090iRN13#,VZN13#199409-199511

main53212-35020iRN13#,VZN13#199108-199308

sub53203-35060

main53212-89120iRN10#,110,VZN10#,110198808-198908

sub53203-35020

main53212-89121iRN10#,110,VZN10#,110198904-199501

53217ABRACE, HOOD LOCK SUPPORT

main53217-89108iRN10#,110,VZN10#,110198808-199501

main53217-89109iRN13#,VZN13#198904-199511

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-35220iVZN130199308-199511

main53701-35230iVZN130199308-199511

W(CRUISE CONTROL)

main53701-89222iRN10#,110198808-199501

main53701-89223iVZN10#,110198808-199501

main53701-89269iRN13#198904-199511

main53701-89271iVZN13#198904-199308

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-35420iVZN13#199308-199511

W(*66)

main53702-35430iVZN13#199308-199511

main53702-89252iRN10#,110,VZN10#,110198808-199501

main53702-89254iVZN100,110..SR5198808-198912

W(CRUISE CONTROL)

sub53702-89252

main53702-89290iRN13#198904-199511

main53702-89293iVZN13#198904-199308

53705ABRACE SUB-ASSY, FENDER APRON, RH

main53705-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-89104iRN10#,110,13#,VZN10#,110,13#198808-199511

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-89104iRN10#,110,13#,VZN10#,110,13#198808-199511

53731EPATCH, FRONT FENDER APRON

main53731-89108iRN10#,110,13#,VZN10#,110,13#198808-199511

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10107iRN10#,110,13#,VZN10#,110,13#198808-199511

53736DSEAL, FENDER APRON

main53736-35070iRN10#,110,13#,VZN10#,110,13#199203-199511

MARK=II

main53736-35090iRN10#,110,13#,VZN10#,110,13#199109-199511

MARK=KK,PLANT A51-54

main53736-35120iRN10#,110,13#,VZN100,110,13#199308-199511

MARK=JJ

sub53736-35070

main53736-89126iRN10#,110,13#,VZN10#,110,13#198808-199203

MARK=II

sub53736-35070

main53736-89127iRN10#,110,13#,VZN10#,110,13#198808-199308

MARK=JJ

sub53736-35120

main53736-89128iRN10#,110,13#,VZN10#,110,13#198808-199203

MARK=KK

sub53736-35080

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

55210INSULATOR ASSY, DASH PANEL

main55210-35130iRN10#,110,13#,VZN10#,110,13#199206-199308

NO.2

sub55210-35131

main55210-35131iRN10#,110,13#,VZN100,110,13#199308-199511

NO.2

main55210-89151iRN10#,110,13#,VZN10#,110,13#198808-199511

NO.1

main55210-89158iRN10#,110,13#,VZN10#,110,13#198808-199206

NO.2

sub55210-35130

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55225-89102iVZN10#,110,13#198808-199511

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-35010iRN13#,VZN13#199008-199511

main57104-89109iRN10#,110,VZN10#,110198808-199501

main57104-89113iRN13#,VZN13#198904-199008

sub57104-35010

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-89102iRN13#,VZN13#198904-199108

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-89102iRN13#,VZN13#198904-199108

9011906416

main90119-06416

9011906445

main90119-06445

9017906060

main90179-06060

9046710095

main90467-10095

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

91651F0610

main91651-F0610

91656F0616

main91656-F0616

29 parts on this diagram · 3 diagrams in section
