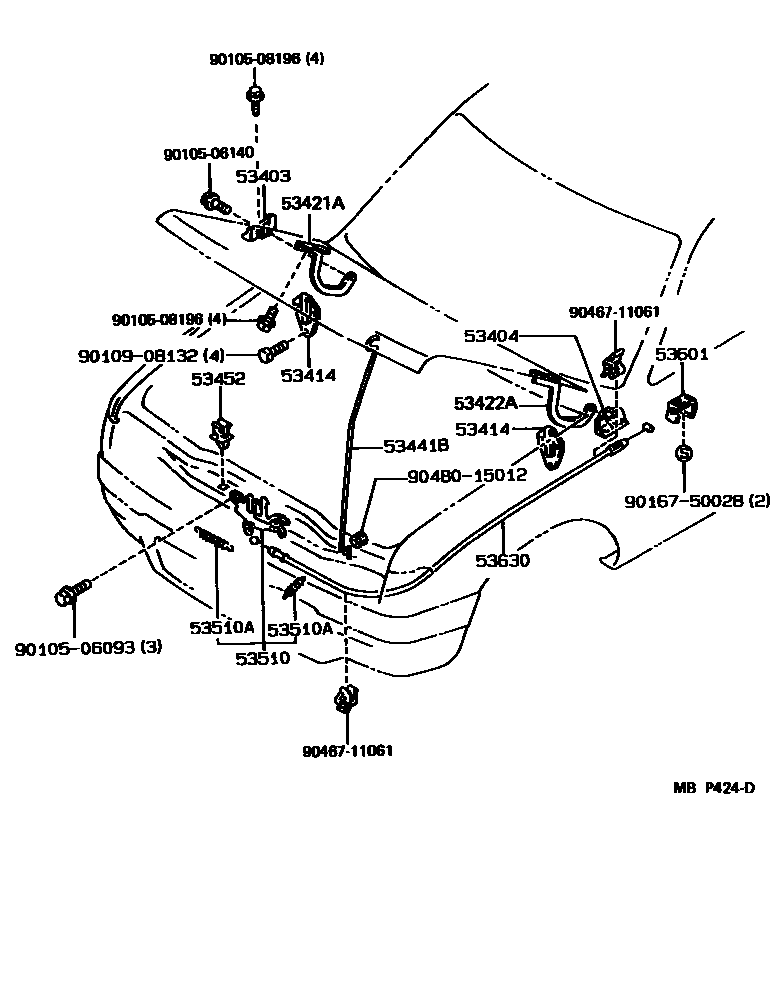

HOOD LOCK & HINGE

53403BRACKET SUB-ASSY, HOOD HINGE, RH

main53403-89102iRN10#,110,13#,VZN10#,110,13#198909-199511

RH,P11

main53403-89102iRN10#,110,13#,VZN10#,110,13#198808-198909

main53403-89103iRN10#,110,13#,VZN10#,110,13#198909-199511

RH,A51-A54

53404BRACKET SUB-ASSY, HOOD HINGE, LH

main53404-89102iRN10#,110,13#,VZN10#,110,13#198808-198909

main53404-89102iRN10#,110,13#,VZN10#,110,13#198909-199511

LH,P11

main53404-89103iRN10#,110,13#,VZN10#,110,13#198909-199511

LH,A51-A54

53414SEAL, HOOD HINGE

main53414-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

53421AARM, HOOD HINGE, RH

main53421-89103iRN10#,110,13#,VZN10#,110,13#198909-199511

RH,P11

main53421-89103iRN10#,110,13#,VZN10#,110,13#198808-198909

main53421-89104iRN10#,110,13#,VZN10#,110,13#198909-199511

RH,A51-A54

53422AARM, HOOD HINGE, LH

main53422-89102iRN10#,110,13#,VZN10#,110,13#198808-198909

main53422-89102iRN10#,110,13#,VZN10#,110,13#198909-199511

LH,P11

main53422-89103iRN10#,110,13#,VZN10#,110,13#198909-199511

LH,A51-A54

53441BSUPPORT, HOOD

main53441-89105iRN10#,110,13#,VZN10#,110,13#198808-199511

53452HOLDER, HOOD STAY

main53452-90351iRN10#,110,13#,VZN10#,110,13#198808-199511

53510LOCK ASSY, HOOD

main53510-35050iRN10#,110,13#,VZN10#,110,13#199108-199511

main53510-89115iRN10#,110,13#,VZN10#,110,13#198808-199108

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-07019iRN10#,110,13#,VZN10#,110,13#199011-199108

WD=0.7,CW=29.25,L=34,L=34

main90506-07021iRN10#,110,13#,VZN10#,110,13#199108-199511

WD=0.7,CW=37.25,L=40

main90506-09039iRN10#,110,13#,VZN10#,110,13#198808-199011

WD=0.9,CW=21.25,L=34

main90506-20008iRN10#,110,13#,VZN10#,110,13#198808-199511

WD=2.0,CW=17,L=59

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-89103-02iRN10#,110,13#,VZN10#,110,13#198808-199108

RED,TRIM3#

sub53601-89103

main53601-89103-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

sub53601-89103

main53601-89103-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

sub53601-89103

main53601-89103-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

sub53601-89103

main53601-89103-B0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM GRAY,TRIM1#

sub53601-89103

main53601-89103-E0iRN10#,110,13#,VZN10#,110,13#198901-199108

BROWN,TRIM4#

sub53601-89103

main53601-89103-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

sub53601-89103

main53601-89103-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

sub53601-89103

main53601-89103-J0iRN10#,110,13#,VZN10#,110,13#198901-199511

MEDIUM BLUE,TRIM8#

sub53601-89103

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-89114iRN10#,110,13#,VZN10#,110,13#198808-199511

9010506093

main90105-06093

9010506140

main90105-06140

9010508196

main90105-08196

9010908132

main90109-08132

9016750028

main90167-50028

9046711061

main90467-11061

9048015012

main90480-15012

18 parts on this diagram · 1 diagram in section
