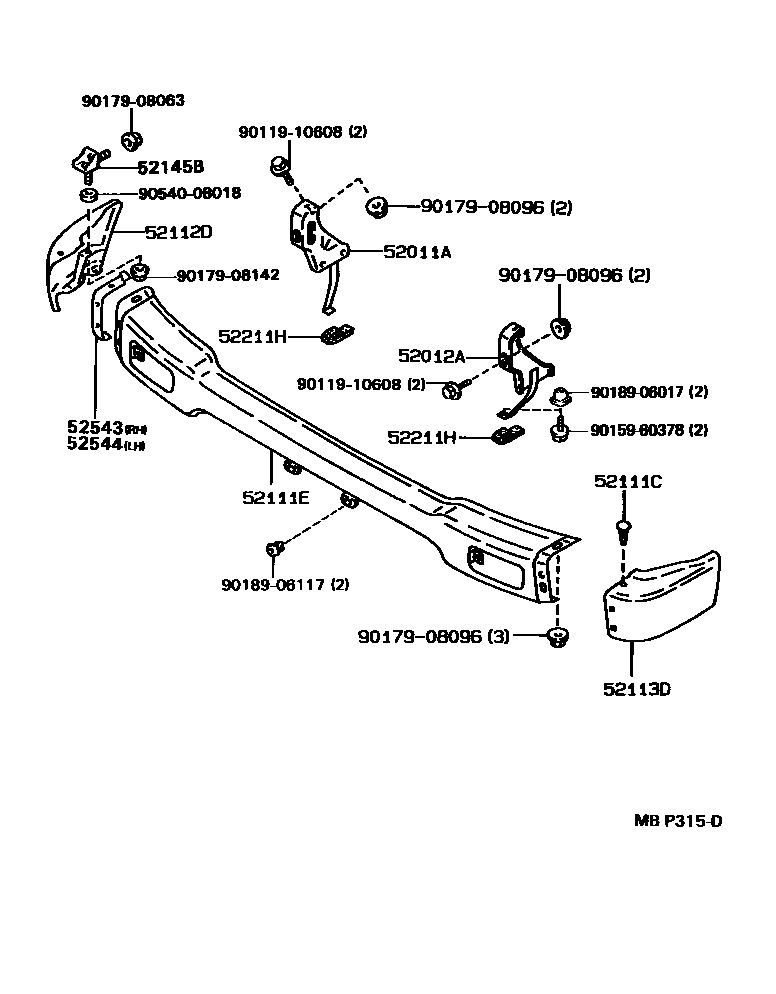

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-35030iRN10#,110,VZN10#,110199108-199501

main52011-35050iRN13#,VZN13#199108-199511

main52011-89116iRN10#,110,VZN10#,110198808-199108

main52011-89117iRN13#,VZN13#198904-199108

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-35030iRN10#,110,VZN10#,110199108-199501

main52012-35050iRN13#,VZN13#199108-199511

main52012-89116iRN10#,110,VZN10#,110198808-199108

main52012-89117iRN13#,VZN13#198904-199108

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08069iRN10#,110,13#,VZN10#,110,13#198808-199108

CHROME PLATED PACKAGE

main90112-08070iRN10#,110,13#,VZN10#,110,13#198808-199108

main90112-08072-03iRN13#,VZN13#198904-199108

SILVER.M,27L

main90112-08072-06iRN13#,VZN13#198904-199008

O.GOLD.M,29L

main90112-08072-13iRN13#,VZN13#198904-199108

D.GRAY.M,28L

52111EBAR, FRONT BUMPER

main52101-35080iRN10#,110,VZN10#,110199108-199501

NO PAINT REQ.

sub52101-35922

main52101-35090iRN10#,110,VZN10#,110199108-199501

PLATED

main52101-35130iRN13#,VZN13#199108-199511

NO PAINT REQ.

sub52101-35905

main52101-35150iVZN131..4D199108-199511

NO PAINT REQ.,W(FRONT WHEEL OPENING EXTENTION)

sub52101-35906

main52101-35160-E0iRN131,VZN131199108-199308

SILVER M.,27L

sub52101-35921

main52101-35160-F0iRN13#,VZN13#199108-199511

BLUE GRAY M.,25T

sub52101-35921

main52101-35170iRN13#,VZN13#199108-199511

PLATED

main52101-35180iVZN131..4D199108-199511

PLATED,W(FRONT WHEEL OPENING EXTENTI0N)

main52101-35190-E0iVZN131..4D199108-199308

W(WHEEL ARCH MOULDING),SILVER M.,27L

sub52101-35906

main52101-35190-F0iVZN131..4D199108-199511

W(WHEEL ARCH MOULDING),BLUE GRAY M.,25T

sub52101-35906

main52101-89113iRN10#,110,13#,VZN10#,110,13#198808-199108

NO PAINT REQ.

main52101-89114iRN10#,110,13#,VZN10#,110,13#198808-199108

PLATED

main52101-89117-03iRN13#,VZN13#198904-199108

SILVER.M,27L

main52101-89117-06iRN13#,VZN13#198904-199008

O.GOLD.M,29L

main52101-89117-13iRN13#,VZN13#198904-199108

D.GRAY.M,28L

52112DEXTENSION, FRONT BUMPER, RH

main52102-89112iRN10#,110,VZN10#,110198808-199108

NO PAINT REQ.

main52102-89113iRN10#,110,VZN10#,110198808-199108

PLATED

main52102-89114iRN13#,VZN13#198904-199108

NO PAINT REQ.

main52102-89115iRN13#,VZN13#198904-199108

PLATED

main52102-89116-03iRN13#,VZN13#198904-199108

SILVER.M,27L

main52102-89116-06iRN13#,VZN13#198904-199008

O.GOLD.M,29L

main52102-89116-13iRN13#,VZN13#198904-199108

D.GRAY.M,28L

52113DEXTENSION, FRONT BUMPER, LH

main52103-89112iRN10#,110,VZN10#,110198808-199108

NO PAINT REQ.

main52103-89113iRN10#,110,VZN10#,110198808-199108

PLATED

main52103-89114iRN13#,VZN13#198904-199108

NO PAINT REQ.

main52103-89115iRN13#,VZN13#198904-199108

PLATED

main52103-89116-03iRN13#,VZN13#198904-199108

SILVER.M,27L

main52103-89116-06iRN13#,VZN13#198904-199008

O.GOLD.M,29L

main52103-89116-13iRN13#,VZN13#198904-199108

D.GRAY.M,28L

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-89102iRN10#,110,13#,VZN10#,110,13#198808-199511

52211HCUSHION(FOR FRONT BUMPER ARM)

main52211-89101iRN10#,110,13#,VZN10#,110,13#198808-199511

52543SEAL, FRONT BUMPER SIDE, RH

main52543-89101iRN10#,110,13#,VZN10#,110,13#198808-199108

52544SEAL, FRONT BUMPER SIDE, LH

main52544-89101iRN10#,110,13#,VZN10#,110,13#198808-199108

9011910608

main90119-10608

9015960378

main90159-60378

9017908063

main90179-08063

9017908096

main90179-08096

9017908142

main90179-08142

9018906017

main90189-06017

9018906117

main90189-06117

9054008018

main90540-08018

18 parts on this diagram · 3 diagrams in section
