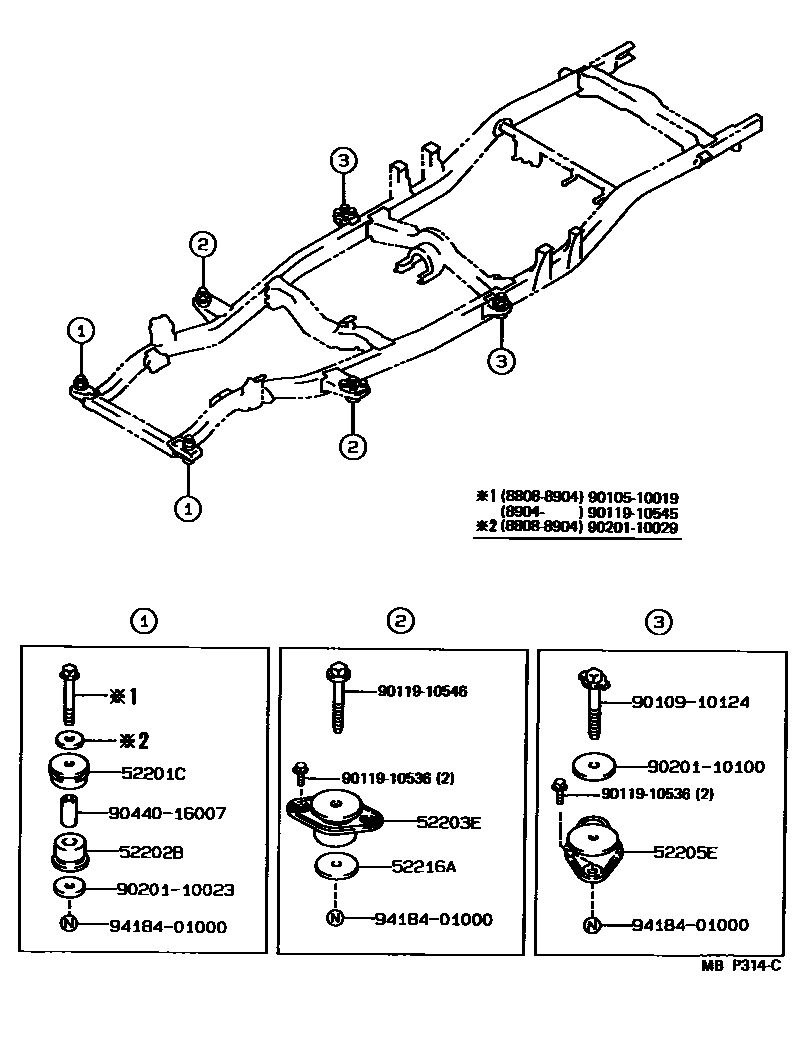

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35050iRN10#,110,VZN10#,110198808-199501

main52201-35060iRN13#,VZN13#198904-199511

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35050iRN10#,110,VZN10#,110198808-199501

main52202-35060iRN13#,VZN13#198904-199511

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-35130iRN10#,VZN10#198808-199501

main52203-35140iRN110,VZN110198808-199501

main52203-35150iRN13#,VZN13#198904-199011

main52203-35170iRN13#,VZN13#199011-199511

52205ECUSHION SUB-ASSY, CAB MOUNTING, NO.3

main52205-35050iRN10#,VZN10#198808-199501

main52205-35060iRN110,VZN110198808-198908

sub52205-35090

main52205-35070iRN13#,VZN13#198904-199511

main52205-35090iRN110,VZN110198908-199501

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-35010iRN10#,110,13#,VZN10#,110,13#198808-199511

9010510019

main90105-10019

9010910124

main90109-10124

9011910536

main90119-10536

9011910545

main90119-10545

9011910546

main90119-10546

9020110023

main90201-10023

9020110029

main90201-10029

9020110100

main90201-10100

9044016007

main90440-16007

9418401000

main94184-01000

15 parts on this diagram · 2 diagrams in section
