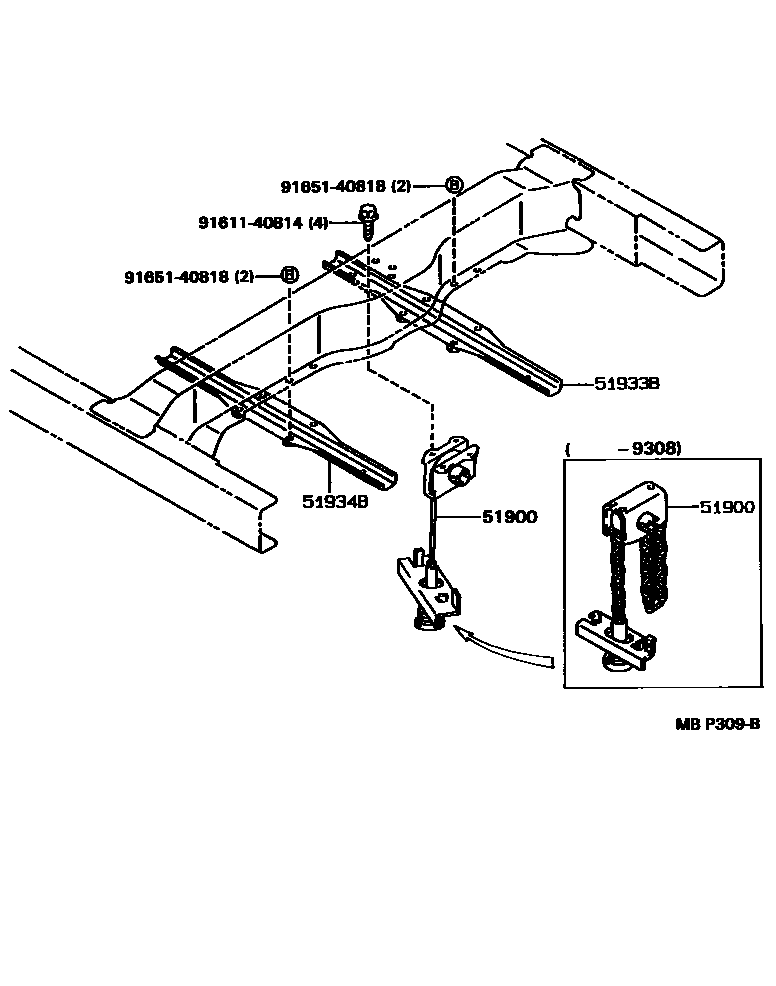

SPARE WHEEL CARRIER

0001 1 0002 1 0003 1

51900CARRIER ASSY, SPARE WHEEL

main51900-34010iRN10#,110,13#,VZN100,110,13#199308-199501

main51900-35121iRN10#,110,13#,VZN10#,110,13#198808-199308

sub51900-35390

main51900-35160iRN13#,VZN13#198908-199308

W(ALUMINUM WHEEL)

main51900-35160iVZN10#,110198808-199308

W(10.5R15 7JJ TIRE)

main51900-35250iVZN13#199108-199511

W(10.5R15 7JJ TIRE)

main51900-35280iRN13#,VZN13#199402-199511

main51900-89102iVZN13#198904-199108

W(10.5R15 7JJ TIRE)

51933BSTOPPER, SPARE WHEEL CARRIER, RH

main51933-34010iRN10#,110,VZN100,110199208-199501

main51933-35040iRN10#,110,VZN10#,110198808-199208

sub51933-34010

main51933-35050iRN13#198908-199108

W(ALUMINUM WHEEL)

main51933-35050iRN13#,VZN13#198904-199511

main51933-35070iVZN100,110..SR5198908-199501

W(10.5R15 7JJ 15 TIRE)

main51933-35070iVZN10#,110198808-198908

W(ALUMINUM WHEEL)

main51933-35110iVZN13#199108-199511

W(ALUMINUM WHEEL)

51934BSTOPPER, SPARE WHEEL CARRIER, LH

main51933-34010iRN10#,110,VZN100,110199208-199501

main51933-35040iRN10#,110,VZN10#,110198808-199208

sub51933-34010

main51933-35050iRN13#,VZN13#198904-199511

main51933-35070iVZN10#,110..DLX198808-199501

W(ALUMINUM WHEEL)

main51933-35110iVZN13#199108-199511

W(ALUMINUM WHEEL)

9161140814

main91611-40814

9165140818

main91651-40818

5 parts on this diagram · 3 diagrams in section
