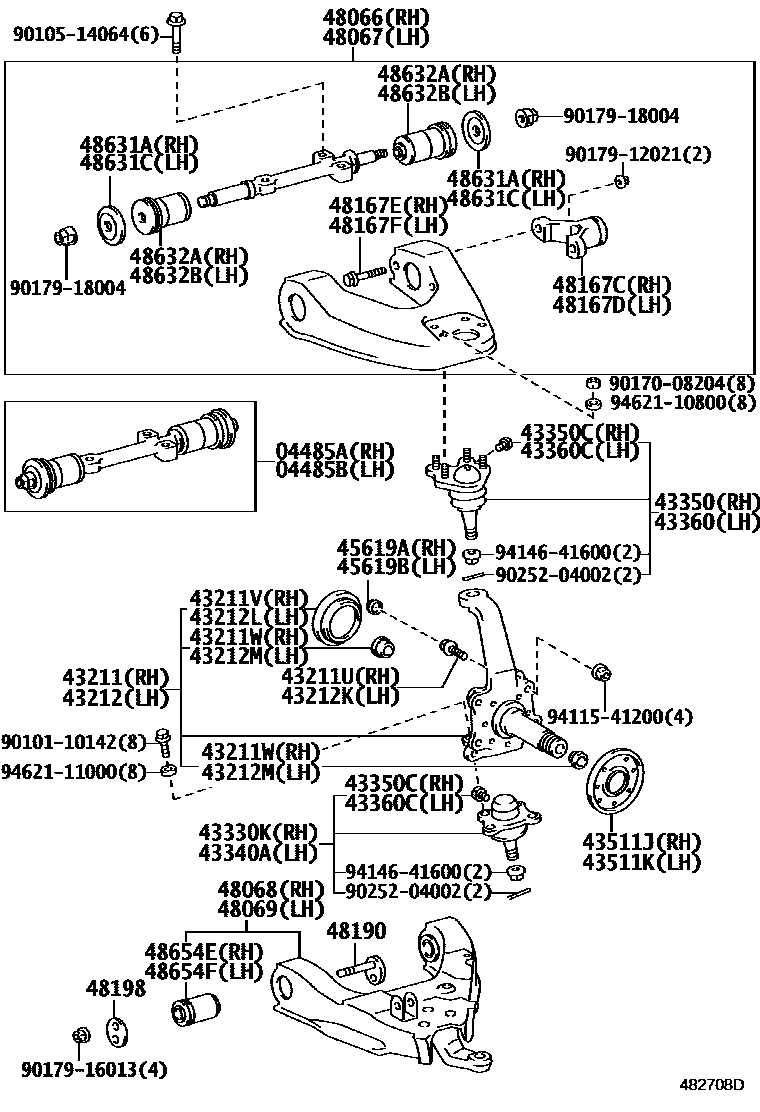

FRONT AXLE ARM & STEERING KNUCKLE

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-35040iRN10#,110,VZN10#,110198808-198906

main04485-35060iRN10#,110,13#,VZN10#,110,13#198904-199511

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-35040iRN10#,110,VZN10#,110198808-198906

main04485-35060iRN10#,110,13#,VZN10#,110,13#198904-199511

43211KNUCKLE, STEERING, RH

main43201-35040iRN13#,VZN13#198808-199511

main43201-35050iVZN13#199308-199511

W(4WHEEL *66)

43211UBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE RH)

main90106-12011iRN10#,110,13#,VZN100,110,13#199408-199410

main90106-12012iRN101,110,13#,VZN100,110,13#199411-199511

main90106-12022iRN101,110,13#,VZN100,110,13#199108-199411

43211VSEAL, OIL (FOR STEERING KNUCKLE RH)

main90316-60002iRN10#,110,13#,VZN10#,110,13#198808-199511

sub90316-60004

sub90304-76005

43211WBUSH (FOR STEERING KNUCKLE RH)

main90381-30003iRN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#198808-199108

main90381-30003iRN10#,110,13#,VZN10#,110,13#199108-199511

OUTER

main90381-30006iVZN10#,110..R..DLX..USA;RN101,110,VZN110..4FC..DLX198907-199501

W(*A.D.D) & W/O(FREEWHEEL HUB)

main90381-30006iRN13#,VZN105,13#;RN101,110,VZN110..4FC..DLX;RN10#,110,VZN100,110..(R,W)..DLX..USA198907-199511

INNER

main90999-70068iRN10#,110,13#,VZN10#,110,13#198808-198907

INNER

sub90999-70069

main90999-70068iRN10#,110,13#,VZN10#,110,13#198808-198907

W(*A.D.D) & W/O(FREEWHEEL HUB)

sub90999-70069

43212KNUCKLE, STEERING, LH

main43202-35030iRN10#,110,13#,VZN10#,110,13#198808-199511

main43202-35040iVZN13#199308-199511

W(4WHEEL *66)

43212KBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE LH)

main90106-12011iRN10#,110,13#,VZN100,110,13#199408-199410

main90106-12012iRN101,110,13#,VZN100,110,13#199411-199511

main90106-12022iRN10#,110,13#,VZN10#,110,13#198808-199411

43212LSEAL, OIL (FOR STEERING KNUCKLE LH)

main90316-60002iRN10#,110,13#,VZN10#,110,13#198808-199511

sub90316-60004

sub90304-76005

43212MBUSH (FOR STEERING KNUCKLE LH)

main90381-30003iRN10#,110,13#,VZN10#,110,13#198808-199511

OUTER

main90381-30006iRN10#,110,VZN100,110198907-199511

main90381-30006iRN13#,VZN13#199108-199511

INNER

main90381-30006iRN110,13#..4FC..SR5198907-199501

W(*A.D.D) & W/O(FREEWHEEL HUB)

main90999-70068iRN10#,110,13#,VZN10#,110,13#198808-198907

W(*A.D.D) & W/O(FREEWHEEL HUB)

sub90999-70069

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39255iRN10#,110,VZN10#,110198808-198904

main43330-39265iRN10#,110,13#,VZN10#,110,13#198904-199108

main43330-39315iRN10#,110,13#,VZN10#,110,13#199108-199511

sub43330-39835

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39235iRN10#,110,VZN10#,110198808-198904

sub43330-39255

main43340-39245iRN10#,110,13#,VZN10#,110,13#198904-199511

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39085iRN10#,110,13#,VZN10#,110,13#198808-199511

43350CPLUG (FOR FRONT UPPER BALL JOINT RH)

main90345-06014iRN10#,110,13#,VZN10#,110,13#198808-199511

43360JOINT ASSY, FRONT UPPER BALL, LH

main43360-39085iRN10#,110,13#,VZN10#,110,13#198808-199511

43360CPLUG (FOR FRONT UPPER BALL JOINT LH)

main90345-06014iRN10#,110,13#,VZN10#,110,13#198808-199511

43511JSEAL, DUST(FOR FRONT AXLE HUB RH)

main90313-92001iRN13#,VZN13#199509-199511

main90313-93002iRN10#,110,13#,VZN10#,110,13#198808-199509

main90313-98001iVZN13#199308-199511

W(4WHEEL *66)

43511KSEAL, DUST(FOR FRONT AXLE HUB LH)

main90313-92001iRN13#,VZN13#199509-199511

main90313-93002iRN10#,110,13#,VZN10#,110,13#198808-199509

main90313-98002iVZN13#199308-199511

W(4WHEEL *66)

45619ACOVER, STEERING KNUCKLE STOPPER, RH

main45619-36010iRN10#,110,13#,VZN10#,110,13#198808-199511

45619BCOVER, STEERING KNUCKLE STOPPER, LH

main45619-36010iRN10#,110,13#,VZN10#,110,13#198808-199511

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35100iRN10#,110,VZN10#,110198808-198906

main48066-35110iRN10#,110,13#,VZN10#,110,13#198904-199511

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-35040iRN10#,110,VZN10#,110198808-198906

main48067-35060iRN10#,110,13#,VZN10#,110,13#198904-199511

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35040iRN10#,110,VZN10#,110198808-198904

main48068-35041iRN10#,110,VZN10#,110198904-198906

sub48068-35042

main48068-35050iRN13#,VZN13#198904-199410

sub48068-35051

main48068-35051iRN101,110,13#,VZN100,110,13#199410-199511

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35040iRN10#,110,VZN10#,110198808-198904

main48069-35041iRN10#,110,VZN10#,110198904-198906

sub48069-35042

main48069-35050iRN10#,110,13#,VZN10#,110,13#198904-199410

sub48069-35051

main48069-35051iRN101,110,13#,VZN100,110,13#199410-199511

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-35011iRN10#,110,13#,VZN10#,110,13#198808-199511

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-35011iRN10#,110,13#,VZN10#,110,13#198808-199511

48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)

main90105-12112iRN10#,110,13#,VZN10#,110,13#198808-199511

48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)

main90105-12112iRN10#,110,13#,VZN10#,110,13#198808-199511

48190CAM ASSY, CAMBER ADJUST

main48190-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

48198CAM, CAMBER ADJUST, NO.2

main48198-35010iRN10#,110,13#,VZN10#,110,13#198808-199511

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02065iRN13#,VZN105,13#;RN101,110,VZN110..4FC..DLX;RN10#,110,VZN100,110..(R,W)..DLX..USA199108-199511

RR

main90948-02065iRN13#,VZN105,13#;RN101,110,VZN110..4FC..DLX;RN10#,110,VZN100,110..(R,W)..DLX..USA198808-199511

FR

main90948-02065iVZN10#,110..R..DLX..USA;RN101,110,VZN110..4FC..DLX199108-199410

W(*A.D.D) & W/O(FREEWHEEL HUB),RR

main90948-02066iRN106;RN101,110..G..USA198808-199506

RR

sub90948-02142

main90948-02066iRN13#,VZN105,13#;RN101,110,VZN110..4FC..DLX;RN10#,110,VZN100,110..(R,W)..DLX..USA199108-199506

FR

sub90948-02142

main90948-02066iRN13#,VZN105,13#;RN101,110,VZN110..4FC..DLX;RN10#,110,VZN100,110..(R,W)..DLX..USA199108-199410

W(*A.D.D) & W/O(FREEWHEEL HUB),FR

sub90948-02142

main90948-02142iRN13#,VZN13#199506-199511

RR

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02065iRN10#,110,13#,VZN10#,110,13#198808-199511

FR

main90948-02066iRN10#,110,13#,VZN10#,110,13#198808-199506

RR

sub90948-02142

main90948-02142iRN13#,VZN13#199506-199511

RR

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-26010iRN10#,110,VZN10#,110198808-198906

FR

main48632-35050iRN10#,110,13#,VZN10#,110,13#198904-199511

FR

main48635-26010iRN10#,110,VZN10#,110198808-198906

RR

main48635-35010iRN10#,110,13#,VZN10#,110,13#198904-199511

RR

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-26010iRN10#,110,VZN10#,110198808-198906

FR

main48632-35050iRN10#,110,13#,VZN10#,110,13#198904-199511

FR

main48635-26010iRN10#,110,VZN10#,110198808-198906

RR

main48635-35010iRN10#,110,13#,VZN10#,110,13#198904-199511

RR

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-35011iRN10#,110,VZN10#,110198808-198906

main48061-35030iRN13#,VZN13#198904-199511

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-35011iRN10#,110,VZN10#,110198808-198906

main48061-35030iRN13#,VZN13#198904-199511

9010110142

main90101-10142

9010514064

main90105-14064

9017008204

main90170-08204

9017912021

main90179-12021

9017916013

main90179-16013

9017918004

main90179-18004

9025204002

main90252-04002

9411541200

main94115-41200

9414641600

main94146-41600

9462110800

main94621-10800

9462111000

main94621-11000

47 parts on this diagram · 1 diagram in section
