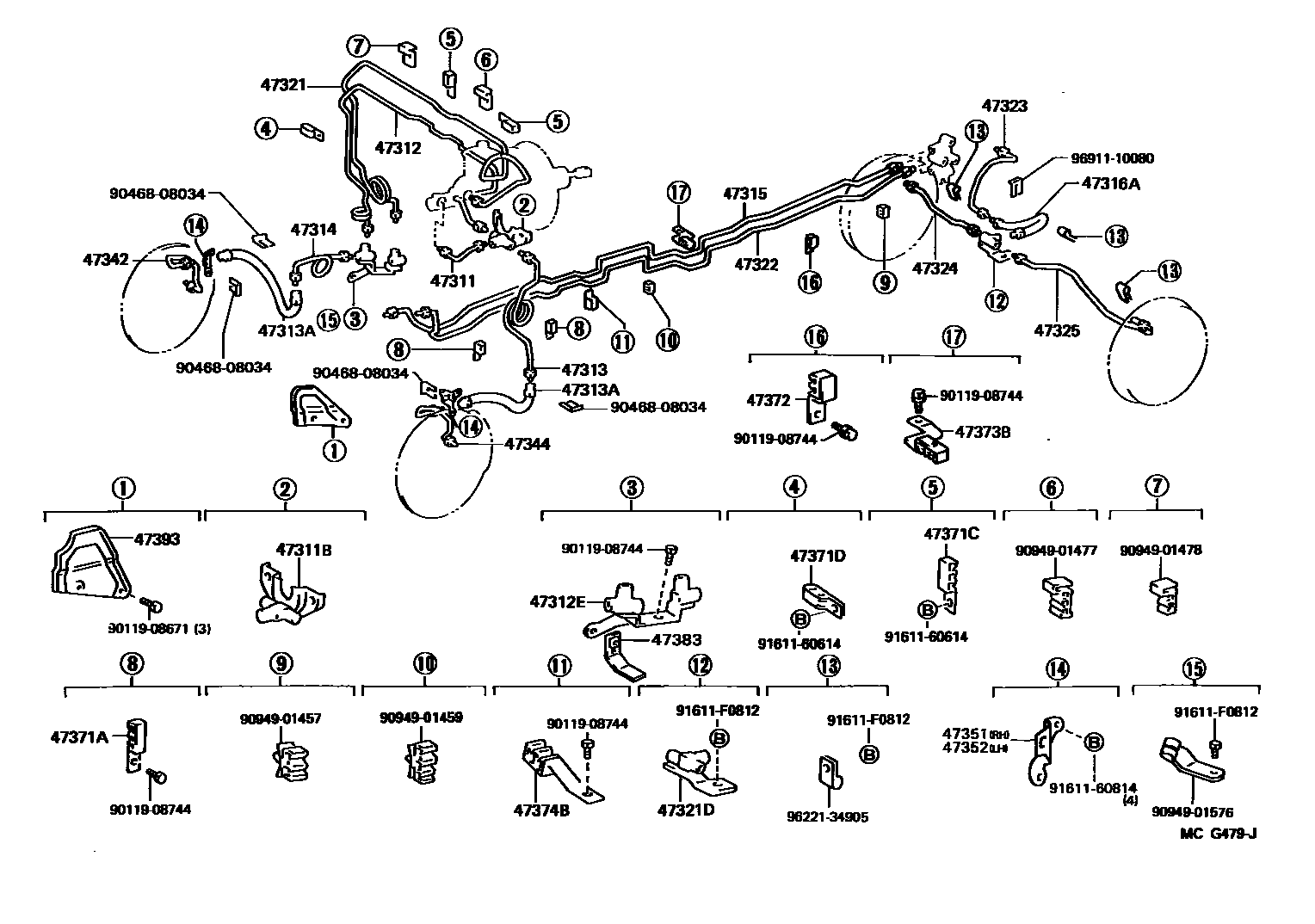

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ABS) 0006 1W(ABS) 0007 1

47311TUBE, FRONT BRAKE, NO.1

main47311-35440iRN10#,110,13#,VZN10#,110,13#198808-199511

main47311-35470iVZN13#199308-199511

W(4WHEEL*66)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10111iRN10#,110,13#,VZN10#,110,13#198808-199511

47312TUBE, FRONT BRAKE, NO.2

main47312-3D040iRN10#,110,13#,VZN10#,110,13#198808-199511

main47312-3D310iVZN13#199308-199411

W(4WHEEL*66)

sub47312-3D311

main47312-3D311iVZN13#199411-199511

W(4WHEEL*66)

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10233iRN10#,110,13#,VZN10#,110,13#198808-199511

main90904-12027iVZN13#199308-199511

W(4WHEEL*66)

47313TUBE, FRONT BRAKE, NO.3

main47313-35590iRN10#,110,13#,VZN10#,110,13#198808-199008

main47313-35790iRN10#,110,13#,VZN10#,110,13#199008-199511

main47313-35850iVZN13#199308-199511

W(4WHEEL*66)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96950-33555iRN13#,VZN13#199508-199511

main96950-33656iRN10#,110,13#,VZN10#,110,13#198808-199508

sub96950-33657

47314TUBE, FRONT BRAKE, NO.4

main47314-35240iRN10#,110,13#,VZN10#,110,13#198808-199008

main47314-35270iRN10#,110,13#,VZN10#,110,13#199008-199511

main47314-35290iVZN13#199308-199511

W(4WHEEL*66)

47315TUBE, FRONT BRAKE, NO.5

main47315-35100iRN101,VZN100198808-199501

main47315-35140iRN106,VZN105198808-199410

main47315-35160iRN110,VZN110198808-199501

main47315-35240iRN13#,VZN13#198904-199308

main47315-35260iRN13#,VZN13#199308-199403

main47315-35261iRN13#,VZN13#199403-199511

main47315-35270iVZN13#199308-199404

W(4WHEEL*66)

sub47315-35271

main47315-35271iVZN13#199404-199511

W(4WHEEL*66)

47316TUBE, FRONT BRAKE, NO.6

main47316-35220iVZN13#199308-199511

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02599iRN13#,VZN13#198904-199508

main90947-02600iRN13#,VZN13#199508-199511

sub90947-02599

main96940-34406iRN10#,110,VZN10#,110198808-199501

sub96940-34405

47321TUBE, REAR BRAKE, NO.1

main47321-35560iRN10#,110,13#,VZN10#,110,13#198808-199511

main47321-35720iVZN13#199308-199511

W(4WHEEL*66)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10162iRN10#,110,VZN10#,110198808-199501

main90413-10235iRN13#,VZN13#198904-199511

47322TUBE, REAR BRAKE, NO.2

main47322-35430iRN110;VZN110..DLX198808-199501

main47322-35440iRN101;VZN100..DLX198808-199501

main47322-35450iRN106,VZN105198808-199410

main47322-35470iRN13#,VZN13#198904-199308

main47322-35600iRN101..SR5198908-199501

W(2WHEEL*66)

main47322-35610iRN110..SR5198908-199501

W(2WHEEL*66)

main47322-35610iVZN110..SR5198908-199501

main47322-35650iRN13#198908-199511

W(2WHEEL*66)

main47322-35660iRN13#199308-199403

main47322-35661iRN13#199403-199511

main47322-35700iRN106,VZN105199008-199410

W(2WHEEL*66)

main47322-35710iVZN13#199308-199404

W(4WHEEL*66)

sub47322-35711

main47322-35711iVZN13#199404-199511

W(4WHEEL*66)

47323TUBE, REAR BRAKE, NO.3

main47323-35110iRN13#,VZN13#198904-199511

main47323-35120iRN10#,110,VZN10#,110198808-199501

47324TUBE, REAR BRAKE, NO.4

main47324-35160iRN10#,110,VZN10#,110198808-199501

main47324-35220iRN13#,VZN13#198904-199511

47325TUBE, REAR BRAKE, NO.5

main47325-35170iRN10#,110,VZN10#,110198808-199501

main47325-35230iRN13#,VZN13#198904-199511

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35100iRN10#,110,13#,VZN10#,110,13#198808-199511

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35100iRN10#,110,13#,VZN10#,110,13#198808-199511

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47352-35170iRN10#,110,13#,VZN10#,110,13#198808-199511

main47352-35260iVZN13#199308-199511

W(4WHEEL*66)

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47354-35080iRN10#,110,13#,VZN10#,110,13#198808-199511

main47354-35090iVZN13#199308-199511

W(4WHEEL*66)

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35080iRN10#,VZN100198808-199511

47371CCLAMP, BRAKE TUBE, NO.7

main47371-35130iRN10#,110,13#,VZN10#,110,13#198808-199511

main47371-35200iVZN13#199308-199511

W(*66)

47371DCLAMP, BRAKE TUBE, NO.8

main47371-35260iVZN13#199308-199511

W(*66)

main47372-35080iRN10#,110,13#,VZN10#,110,13#198808-199511

47372CLAMP, BRAKE TUBE, NO.2

main47372-35030iRN10#,110,13#,VZN10#,110,13#198808-199511

47373BCLAMP, BRAKE TUBE, NO.3

main47371-35120iRN13#,VZN13#198904-199511

main47371-35150iRN10#,110,VZN10#,110198808-199501

47374BCLAMP, BRAKE TUBE, NO.4

main47372-35130iVZN13#199308-199511

W(*66)

main47373-35050iRN10#,110,13#,VZN10#,110,13#198808-199511

47383BRACKET, CONNECTOR

main47383-35010iRN10#,110,13#,VZN10#,110,13#199108-199511

47393INSULATOR, BRAKE TUBE HEAT

main47393-35110iRN10#,110,13#,VZN10#,110,13#198904-199511

main47393-35120iRN10#,110,VZN10#,110198808-198904

9011908671

main90119-08671

9011908744

main90119-08744

9046808034

main90468-08034

9094901457

main90949-01457

9094901459

main90949-01459

9094901477

main90949-01477

9094901478

main90949-01478

9094901576

main90949-01576

9161160614

main91611-60614

9161160814

main91611-60814

91611F0812

main91611-F0812

9622134905

main96221-34905

9691110080

main96911-10080

41 parts on this diagram · 7 diagrams in section
