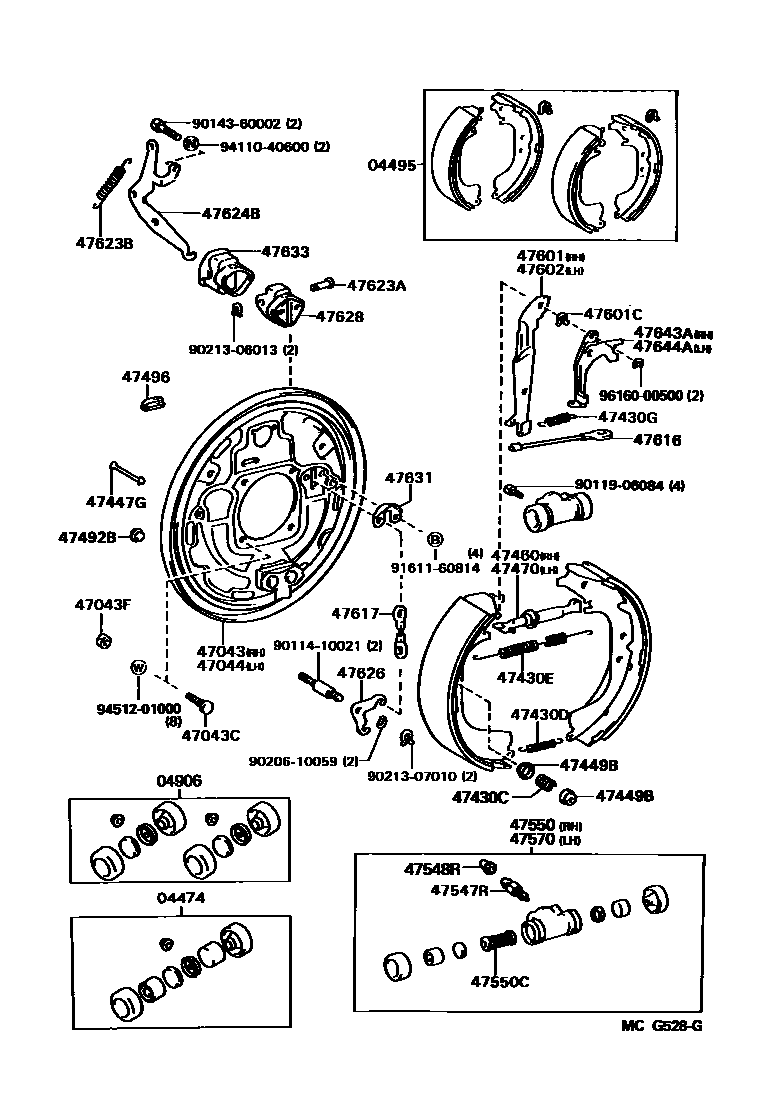

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-26030iRN13#,VZN13#¥2,440199106-199511

sub04474-35090¥1,870

sub90029-60009¥90

main04474-35060iRN10#,110,VZN10#,110¥2,440198808-199501

sub04474-35080¥2,460

sub90029-60011¥90

04495SHOE KIT, REAR BRAKE

main04495-35150iRN10#,110,VZN10#,110¥12,200198808-198809

MARK AK LA509

sub04495-35151¥14,400

main04495-35151iRN10#,110,13#,VZN10#,110,13#¥14,400198809-199511

MARK NBK LN508

sub04495-35230¥14,600

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26050iRN13#,VZN13#¥960199108-199511

sub04906-35120¥870

main04906-35100iRN10#,110,VZN10#,110¥960198808-200106

main04906-35120iRN13#,VZN13#¥870199106-199108

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35150iRN10#,110,VZN10#,110¥6,700198808-199501

main47043-35160iRN13#,VZN13#¥4,570198904-199511

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iRN10#,110,13#,VZN10#,110,13#¥120198808-199511

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067iRN10#,110,13#,VZN10#,110,13#¥90198808-199511

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35140iRN10#,110,VZN10#,110¥6,700198808-199501

main47044-35150iRN13#,VZN13#¥4,570198904-199511

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iRN10#,110,13#,VZN10#,110,13#¥120198808-199511

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iRN10#,110,13#,VZN10#,110,13#¥370198808-199511

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iRN10#,110,VZN10#,110¥400198808-199511

RH

main90506-26011iRN13#,VZN13#¥400199108-199511

LH

main90506-26014iRN13#,VZN13#¥400199108-199511

RH

main90506-26014iRN10#,110,13#,VZN10#,110,13#¥400198808-199511

LH

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031iRN10#,110,13#,VZN10#,110,13#¥180198808-199511

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iRN10#,110,13#,VZN10#,110,13#¥130198808-199511

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iRN10#,110,13#,VZN10#,110,13#¥120198808-199511

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iRN10#,110,VZN10#,110¥1,960198808-199511

main47062-60011iRN13#,VZN13#¥1,960198904-199511

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-60011iRN13#,VZN13#¥1,960198904-199511

main47062-60011iRN10#,110,VZN10#,110¥1,960198808-199511

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iRN10#,110,13#,VZN10#,110,13#¥130198808-199511

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iRN10#,110,13#,VZN10#,110,13#¥140198808-199511

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-60020iRN10#,110,13#,VZN10#,110,13#¥230198808-199511

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iRN10#,110,13#,VZN10#,110,13#¥160198808-199511

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26110iRN13#,VZN13#¥3,540199106-199511

main47550-35170iRN10#,110,VZN10#,110¥5,100198808-199501

sub47550-35190¥5,800

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-60010iRN13#,VZN13#¥670199106-199511

main90501-09079iRN10#,110,VZN10#,110¥90198808-199501

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26110iRN13#,VZN13#¥3,540199106-199511

main47550-35170iRN10#,110,13#,VZN10#,110,13#¥5,100198808-199501

sub47550-35190¥5,800

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iRN10#,110,VZN10#,110¥910198808-199511

main47612-35040iRN13#,VZN13#¥910198904-199511

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iRN10#,110,13#,VZN10#,110,13#¥110198808-199511

T=1.6

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47611-35040iRN13#,VZN13#¥910198904-199511

main47612-35040iRN10#,110,VZN10#,110¥910198808-199511

47616WIRE, PARKING BRAKE, RH

main47616-35020iRN10#,110,VZN10#,110¥880198808-199501

47617WIRE, PARKING BRAKE, NO.2

main47617-35010iRN10#,110,VZN10#,110¥1,010198808-199501

sub46361-35100¥370

47623APIN(FOR PARKING BRAKE BELL CRANK)

main90249-08068iRN10#,110,VZN10#,110¥190198808-199501

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20019iRN10#,110,VZN10#,110¥530198808-199501

47624BCRANK, PARKING BRAKE BELL, NO.1

main47624-35020iRN10#,110,VZN10#,110¥1,550198808-199501

RH

main47625-35020iRN10#,110,VZN10#,110¥1,550198808-199501

LH

47626CRANK, PARKING BRAKE BELL, NO.3

main47626-35010iRN10#,110,VZN10#,110¥930198808-199501

47628BRACKET, REAR BRAKE BELLCRANK

main47628-35020iRN10#,110,VZN10#,110¥1,130198808-199501

47631COVER, REAR BRAKE BELLCRANK DUST

main47631-35010iRN10#,110,VZN10#,110¥230198808-199501

47633BOOT, PARKING BRAKE BELLCRANK

main47633-35020iRN10#,110,VZN10#,110¥720198808-199501

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-60010iRN10#,110,VZN10#,110¥310198808-199511

main47644-60010iRN13#,VZN13#¥310198904-199511

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-60010iRN13#,VZN13#¥310198904-199511

main47644-60010iRN10#,110,VZN10#,110¥310198808-199511

9011410021

main90114-10021¥310

9011906084

main90119-06084¥100

9014360002

main90143-60002¥120

9020610059

main90206-10059¥200

9021306013

main90213-06013¥110

9021307010

main90213-07010¥110

9161160814

main91611-60814¥100

9411040600

main94110-40600¥80

9451201000

main94512-01000¥90

9616000500

main96160-00500¥100
