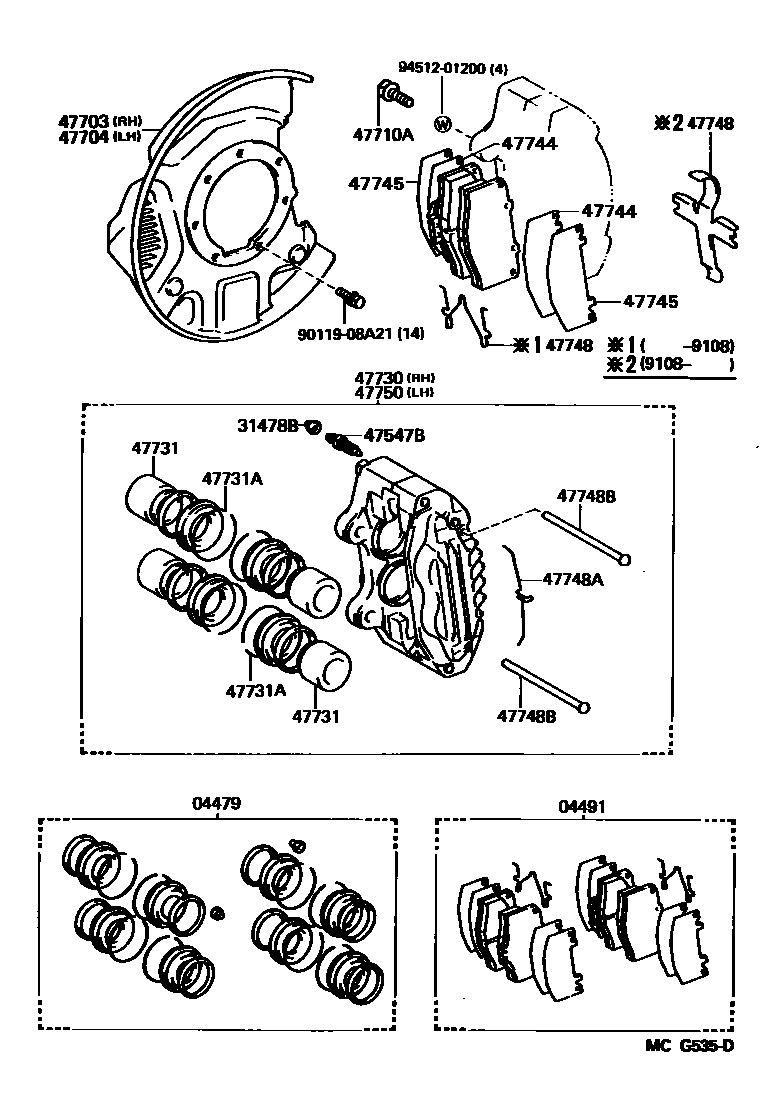

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-35010iRN10#,110,13#,VZN10#,110,13#198808-199501

main04479-60020iRN13#,VZN13#199106-199511

04491PAD KIT, DISC BRAKE, FRONT

main04491-35160iRN10#,110,VZN10#,110199108-199405

sub04465-35040

main04491-35171iRN10#,110,VZN100,110199405-199501

sub04465-35031

main04491-35190iRN10#,110,13#,VZN10#,110,13#198808-199108

sub04491-35160

main04491-35240iRN13#,VZN13#199106-199309

sub04465-35140

main04491-35241iRN13#,VZN13#199309-199312

sub04465-35140

main04491-35250iRN13#,VZN13#199312-199408

sub04491-35251

main04491-35251iRN13#,VZN13#199408-199505

sub04465-35060

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRN10#,110,13#,VZN10#,110,13#198808-199511

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iRN10#,110,13#,VZN10#,110,13#198808-199511

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-35060iRN10#,110,13#,VZN10#,110,13#198808-199106

sub47703-35061

main47703-35061iRN10#,110,13#,VZN10#,110,13#199106-199308

sub47703-35062

main47703-35062iRN10#,110,13#,VZN100,110,13#199308-199511

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-35060iRN10#,110,13#,VZN10#,110,13#198808-199106

sub47704-35061

main47704-35061iRN10#,110,13#,VZN10#,110,13#199106-199308

sub47704-35062

main47704-35062iRN10#,110,13#,VZN100,110,13#199308-199511

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144iRN10#,110,13#,VZN10#,110,13#198808-199511

*12-1.25PX38-23

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35080iRN10#,110,13#,VZN10#,110,13#198808-199501

main47730-35090iRN13#,VZN13#199106-199511

47731PISTON, FRONT DISC BRAKE

main47731-35010iRN10#,110,13#,VZN10#,110,13#198808-199501

main47731-60010iRN13#,VZN13#199106-199511

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-48044iRN10#,110,13#,VZN10#,110,13#198808-199501

main90522-50003iRN13#,VZN13#199106-199511

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35020iRN10#,110,VZN100,110198808-199511

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60010iRN10#,110,VZN10#,110198808-199501

main47748-60030iRN13#,VZN13#199106-199511

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12015iRN10#,110,13#,VZN10#,110,13#198808-199501

main90468-12019iRN13#,VZN13#199108-199511

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06014iRN13#,VZN13#199106-199511

main90240-06158iRN10#,110,13#,VZN10#,110,13#198808-199501

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35080iRN10#,110,13#,VZN10#,110,13#198808-199501

main47750-35090iRN13#,VZN13#199106-199511

9011908A21

main90119-08A21

9451201200

main94512-01200

18 parts on this diagram · 2 diagrams in section
