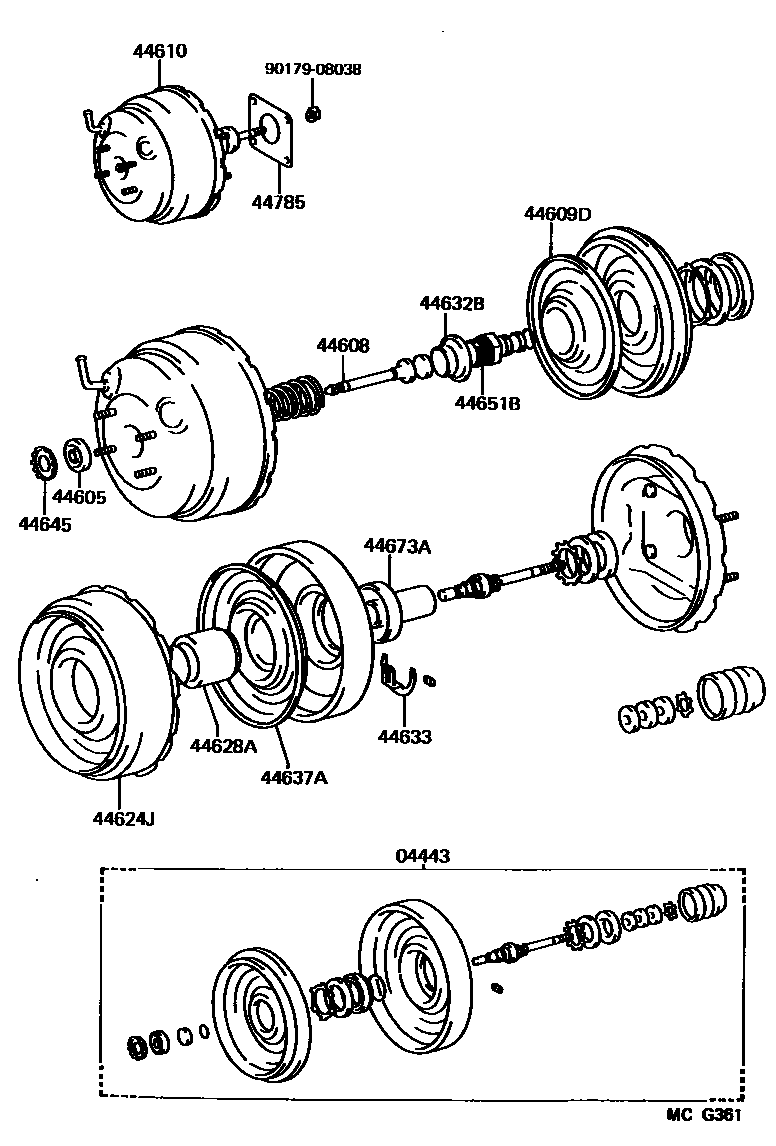

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-35860iRN10#,110,VZN10#,110199106-199108

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-30350iRN10#,110,13#,VZN10#,110,13#198808-199106

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-17090iRN10#,110,13#,VZN10#,110,13#198808-199106

44609DPLATE & RETAINER SUB-ASSY, BOOSTER

main44609-26380iRN10#,110,VZN10#,110199106-199108

44610BOOSTER ASSY, BRAKE

main44610-3D330iRN10#,110,13#,VZN10#,110,13#198808-199106

main44610-3D470iRN10#,110,13#,VZN10#,110,13#199108-199110

main44610-3D560iRN13#,VZN13#199106-199108

main44610-3D580iRN13#,VZN13#199111-199112

main44610-3D610iRN13#,VZN13#199308-199511

main44610-3D620iVZN13#199308-199511

W(4WHEEL*66)

44624JPLATE, BOOSTER CENTER

main44624-28300iRN10#,110,13#,VZN10#,110,13#198808-199106

44628ABODY, BOOSTER CENTER

main44628-20810iRN10#,110,13#,VZN10#,110,13#198808-199106

44632BHUB, BOOSTER REACTION DISK

main44632-30730iRN10#,110,13#,VZN10#,110,13#198808-199106

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iRN10#,110,13#,VZN10#,110,13#198808-199106

44637APLATE, BOOSTER DIAPHRAGM

main44637-28300iRN10#,110,VZN10#,110199106-199108

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iRN10#,110,13#,VZN10#,110,13#198808-199106

44651BNUT, BOOSTER

main44651-20810iRN10#,110,VZN10#,110199106-199108

44673ABODY, BOOSTER VALVE

main44673-20810iRN10#,110,13#,VZN10#,110,13#198808-199106

44785GASKET, BRAKE BOOSTER

main44785-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

9017908038

main90179-08038

15 parts on this diagram · 3 diagrams in section
