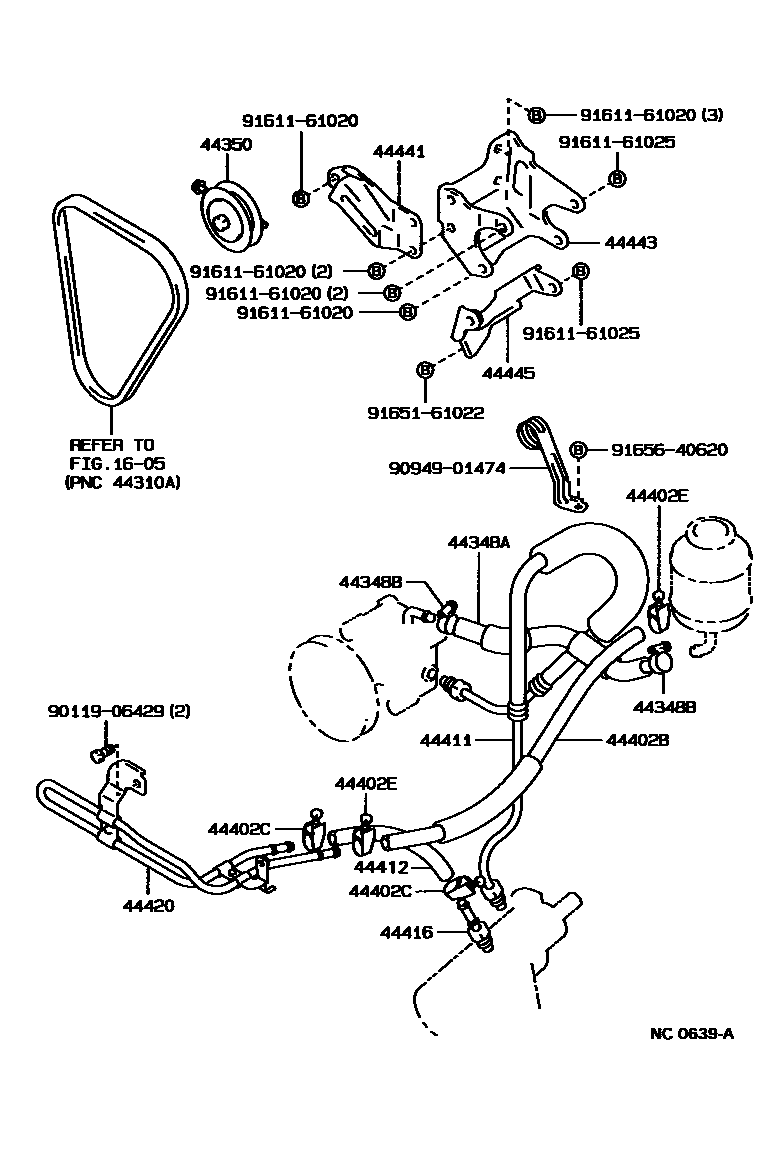

POWER STEERING TUBE

0001 1 0002 1W(ANTI-LOCK BRAKING SYSTEM) 0003 1 0004 1W(ANTI-LOCK BRAKING SYSTEM)

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35100iRN10#,110,13#198808-199511

sub44348-35101

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iRN10#,110,13#198808-199404

main90467-21005iRN10#,110,13#199404-199511

sub90467-21010

44350PULLEY ASSY, POWER STEERING IDLE

main44350-35010iRN10#,110,13#198808-199511

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90447-18039iRN13#199108-199511

W(*66)

main90447-18039iRN10#,110,13#198808-199511

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001iRN10#,110,13#198808-199404

main90467-16008iRN10#,110,13#199404-199511

W(*66)

sub90467-16019

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iVZN100,110..SR5;RN10#,110,13#,VZN13#198808-199404

main90467-16008iRN10#,110,13#,VZN100,110,13#199404-199511

sub90467-16019

44411HOSE, PRESSURE FEED

main44411-35290iRN10#,110,13#198808-199511

main44411-35340iVZN10#,110,13#198908-199511

44412HOSE, RETURN

main44412-35090iVZN10#,110,13#198808-199511

sub44412-35091

main44412-35130iRN10#,110198908-199511

W(*66)

main44412-35210iRN13#199108-199511

main90445-18138iRN10#,110198808-199501

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

44420COOLER ASSY, OIL

main44420-35040iRN10#,110,13#198808-199501

main44420-35070iRN13#199108-199511

44441BRACKET, PUMP, FRONT

main44441-20010iRN10#,110,13#198808-199511

main44441-35020iVZN10#,110,13#198808-199511

44443BRACKET, PUMP

main44443-35020iRN10#,110,13#198808-199511

44445BRACKET, PUMP, LOWER

main44445-35010iRN10#,110,13#198808-199511

9011906429

main90119-06429

9094901474

main90949-01474

9161161020

main91611-61020

9161161025

main91611-61025

9165161022

main91651-61022

9165640620

main91656-40620

20 parts on this diagram · 4 diagrams in section
