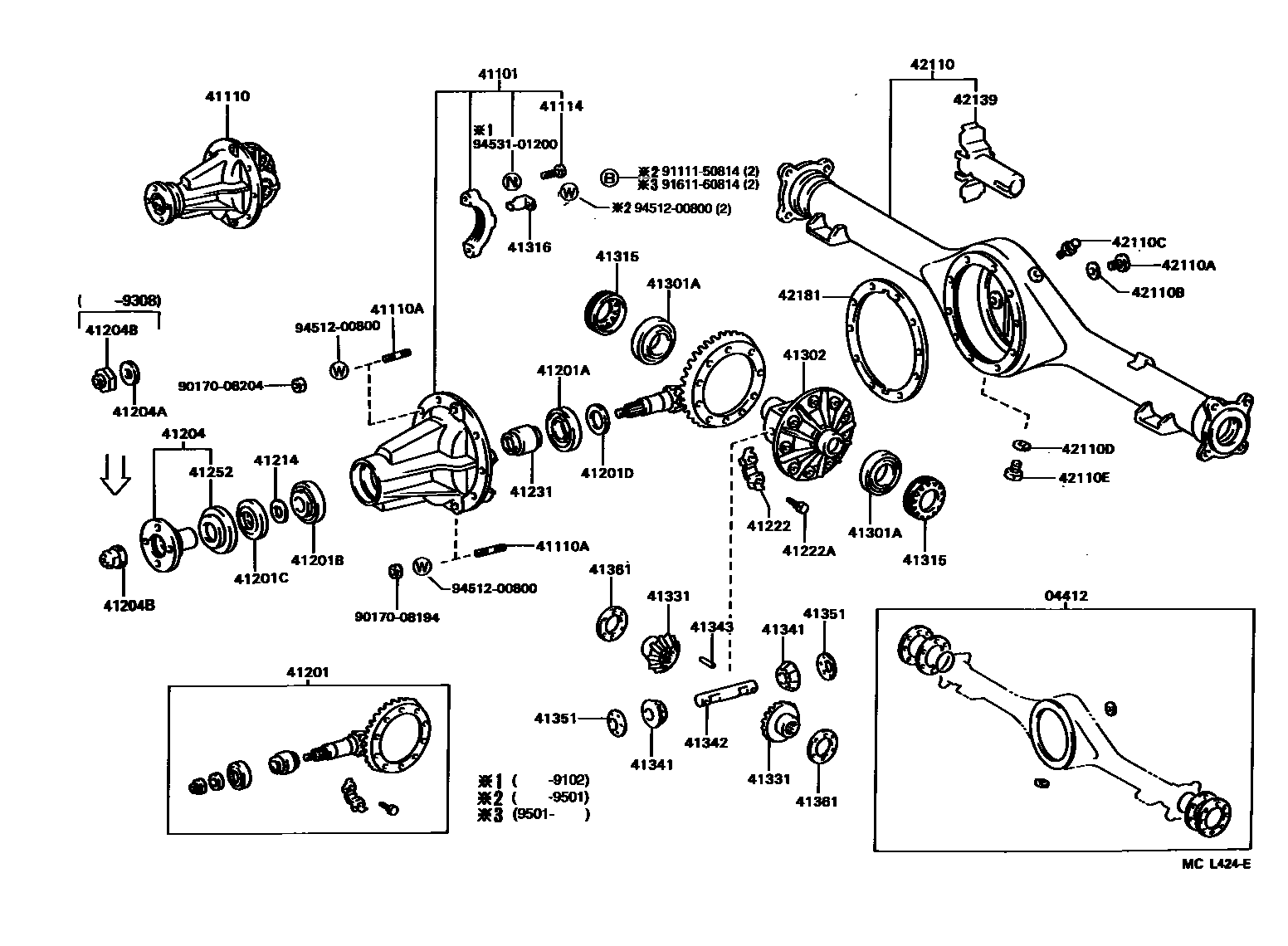

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-25060iRN10#,110,13#,VZN10#,110,13#198808-199108

main04412-35120iRN10#,110,13#,VZN10#,110,13#199108-199511

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35030iRN10#,110,13#198808-198905

sub41101-35031

sub90116-08329

main41101-35031iRN10#,110,13#198905-199511

main41101-35070iVZN10#,110,13#198808-198905

sub41101-35071

sub90116-08329

sub90116-08334

main41101-35071iVZN13#199308-199511

W(4 WHEEL *66)

sub41101-35170

main41101-35071iVZN10#,110..DLX198905-199501

sub41101-35170

main41101-35090iRN101,110,13#..SR5198908-199511

W(2 WHEEL *66)

main41101-35100iVZN100,110,13#..SR5198908-199511

main41101-35100iVZN10#,110..DLX199008-199501

W(2 WHEEL *66)

main41101-35120iVZN110..4FC..SR5199108-199511

W(7JJX15 DISC WHEEL)

main41101-35120iVZN110..4FC..SR5199108-199501

W(2 WHEEL *66 & 7JJ DISC WHEEL)

main41101-60061iVZN110..4FC..DLX199108-199501

W(7JJX15 DISC WHEEL)

sub41101-60160

main41101-60061iVZN13#..4FC199308-199511

W(4 WHEEL *66 & 7JJ DISC WHEEL)

sub41101-60160

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26161iVZN13#..R199308-199511

*FGR=43:10=4.300,W(4 WHEEL *66)

sub41110-3D020

main41110-26161iVZN10#,110..R..DLX199108-199501

*FGR=43:10=4.300

sub41110-3D020

main41110-35201iRN10#,110,13#..5F198808-198905

*FGR=41:10=4.100

sub41110-35202

sub90116-08329

main41110-35202iRN10#,110,13#..5F198905-199511

*FGR=41:10=4.100

sub41110-26430

main41110-35221iRN106,110,13#..4FC198808-198905

*FGR=41:9=4.555

sub41110-35222

sub90116-08329

main41110-35222iRN10#,110,13#..4FC198905-199511

*FGR=41:9=4.555

sub41110-3D260

main41110-35390iVZN10#,110,13#198808-198905

*FGR=41:10=4.100

sub41110-35391

sub90116-08329

sub90116-08334

main41110-35391iVZN10#,110..DLX198905-199108

*FGR=41:10=4.100

sub41110-26150

main41110-35490iVZN10#,110,13#198808-198905

*FGR=41:9=4.555

sub41110-35491

sub90116-08329

main41110-35491iVZN10#,110..R..DLX198905-199501

*FGR=41:9=4.555

sub41110-3D090

main41110-35491iVZN13#..4FC199308-199511

*FGR=41:9=4.555,W(4 WHEEL *66)

sub41110-3D090

main41110-35560iRN10#,110,13#..5F198908-199511

*FGR=41:10=4.100,W(2 WHEEL *66)

main41110-35570iRN110,13#..4FC..SR5198908-199511

*FGR=41:9=4.555,W(2 WHEEL *66)

main41110-35580iVZN100,110,13#..SR5198908-199108

*FGR=41:10=4.100

main41110-35580iVZN10#,110..DLX199008-199108

*FGR=41:10=4.100,W(2 WHEEL *66)

main41110-35590iVZN13#..R198908-199511

*FGR=41:9=4.555

sub41110-35591

main41110-35590iVZN10#,110..DLX199008-199501

*FGR=41:9=4.555,W(2 WHEEL *66)

sub41110-35591

main41110-35660iVZN110,13#..R..SR5199108-199511

*FGR=43:10=4.300

sub41110-35661

main41110-35660iVZN10#,110..R..DLX199108-199501

*FGR=43:10=4.300,W(2 WHEEL *66)

sub41110-35661

main41110-35680iVZN110..4FC..DLX199108-199501

*FGR=39:8=4.875,W(2 WHEEL *66)

main41110-35680iVZN110..4FC..SR5199108-199511

*FGR=39:8=4.875

main41110-60380iVZN110..4FC..DLX199108-199501

*FGR=39:8=4.875

sub41110-60690

main41110-60380iVZN13#..4FC199308-199511

*FGR=39:8=4.875,W(4 WHEEL *66)

sub41110-60690

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08233iRN10#,110,13#,VZN10#,110,13#198808-199511

S=14 & 14,L=42

main90116-08235iRN10#,110,13#,VZN10#,110,13#198808-198905

S=12 & 15,L=34

sub90116-08418

main90116-08329iRN10#,110,13#,VZN10#,110,13#198905-199511

S=17 & 12,L=37

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iRN10#,110,13#,VZN10#,110,13#198808-199511

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29536iRN10#,110,13#..4FC198808-199511

*FGR=41:9=4.556

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29855iVZN10#,110,13#..R199108-199305

*FGR=43:10=4.300

sub41201-29856

main41201-29856iVZN100,110,13#..R199305-199511

*FGR=43:10=4.300

sub41201-80104

main41201-39676iRN10#,110,13#..5F198808-199511

*FGR=41:10=4.100

sub41201-39677

sub41204-35081

sub41214-26011

main41201-39755iVZN10#,110,13#198808-199108

*FGR=41:10=4.100

sub41201-39756

sub41204-35081

sub41214-26011

main41201-69285iVZN110..4FC..SR5199108-199511

*FGR=39:8=4.875

sub41201-80183

sub41204-35081

sub41214-26011

main41201-80011iVZN13#..R198808-199501

*FGR=41:9=4.556

sub41201-80059

main41201-80059iVZN110..R..SR5199305-199511

*FGR=41:9=4.556

sub41201-80105

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iVZN10#,110,13#198808-199511

sub90366-35087

main90366-35044iRN10#,110,13#198808-199511

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iRN10#,110,13#198808-199511

sub90366-30078

main90366-30025iVZN10#,110,13#198808-199511

sub90366-30067

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38035iRN10#,110,13#198808-199511

sub90311-38047

main90311-38133iVZN10#,110,13#198808-199511

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.70

main90201-35498iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.73

main90201-35499iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.76

main90201-35500iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.79

main90201-35501iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.82

main90201-35502iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.85

main90201-35503iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.88

main90201-35504iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.91

main90201-35505iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.94

main90201-35506iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=1.97

main90201-35507iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.00

main90201-35508iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.03

main90201-35509iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.06

main90201-35510iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.09

main90201-35511iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.12

main90201-35512iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.15

main90201-35513iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.18

main90201-35514iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.21

main90201-35515iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.24,MARK 01

main90201-35516iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.27,MARK 02

main90201-35517iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.30,MARK 03

main90201-35518iRN10#,110,13#,VZN10#,110,13#198808-199511

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iRN10#,110,13#,VZN10#,110,13#198808-199511

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iRN10#,110,13#,VZN10#,110,13#198808-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-20001iRN10#,110,13#,VZN10#,110,13#198808-199308

main90179-20018iRN10#,110,13#,VZN100,110,13#199308-199511

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iRN10#,110,13#,VZN10#,110,13#198808-199511

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iRN10#,110,13#,VZN10#,110,13#198808-199511

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iVZN10#,110,13#198808-199511

main41231-40011iRN10#,110,13#198808-199511

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35010iRN10#,110,13#,VZN10#,110,13#198808-199303

sub41252-35020

main41252-35020iRN10#,110,13#,VZN100,110,13#199303-199511

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iVZN10#,110,13#198808-199511

main90368-45066iRN10#,110,13#198808-199511

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iVZN10#,110,13#198808-199511

sub41302-26010

main41311-40020iRN10#,110,13#198808-199511

sub41311-40021

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iRN10#,110,13#198808-199511

main41315-35020iVZN10#,110,13#198808-199511

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iRN10#,110,13#198808-199305

main41316-35010iVZN10#,110,13#198808-199511

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35011iRN10#,110,13#198808-199511

main41331-35040iVZN10#,110,13#198808-199511

sub41039-34060

sub41039-34080

41341PINION, REAR DIFFERENTIAL

main41341-30020iVZN100,110,13#199408-199511

sub41341-30050

main41341-35010iVZN10#,110,13#198808-199408

sub41341-14041

main41341-35020iRN10#,110,13#198808-199511

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iRN10#,110,13#198808-199511

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iRN10#,110,13#198808-199511

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iRN10#,110,13#198808-199511

main41351-30060iVZN10#,110,13#198808-199511

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iVZN10#,110,13#198808-199509

T=0.90

sub41361-60E10

main41361-24020iVZN10#,110,13#198808-199509

T=1.00

sub41361-60E50

main41361-24030iVZN10#,110,13#198808-199509

T=1.10

sub41361-60E90

main41361-24040iVZN10#,110,13#198808-199509

T=1.20

sub41361-60F30

main41361-24050iVZN10#,110,13#198808-199509

T=1.30

sub41361-60F70

main41361-35310iVZN13#199509-199511

T=0.9

main41361-35320iVZN13#199509-199511

T=1.0

main41361-35330iVZN13#199509-199511

T=1.1

main41361-35340iVZN13#199509-199511

T=1.2

main41361-35350iVZN13#199509-199511

T=1.3

main41361-40021iRN10#,110,13#198808-199511

T=1.6

main41362-40021iRN10#,110,13#198808-199511

T=1.7

main41363-40021iRN10#,110,13#198808-199511

T=1.8

42110HOUSING ASSY, REAR AXLE

main42110-35421iRN110,VZN110198808-199501

main42110-35430iRN10#,VZN10#198808-199501

main42110-35450iRN13#,VZN13#198904-199511

main42110-35520iRN130,VZN13#199308-199511

W(4 WHEEL *66)

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iRN10#,110,13#,VZN100,110,13#199406-199511

main90341-18049iRN10#,110,13#,VZN10#,110,13#198808-199406

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iRN10#,110,13#,VZN10#,110,13#198808-199511

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iRN10#,110,13#,VZN10#,110,13#198808-199511

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iRN10#,110,13#,VZN10#,110,13#198808-199511

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iRN10#,110,13#,VZN10#,110,13#198808-199511

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42139-40010iRN10#,110,13#,VZN10#,110,13#198808-199511

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-60020iRN10#,110,13#,VZN10#,110,13#198808-199511

9017008194

main90170-08194

9017008204

main90170-08204

9111150814

main91111-50814

9161160814

main91611-60814

9451200800

main94512-00800

9453101200

main94531-01200

42 parts on this diagram · 2 diagrams in section
