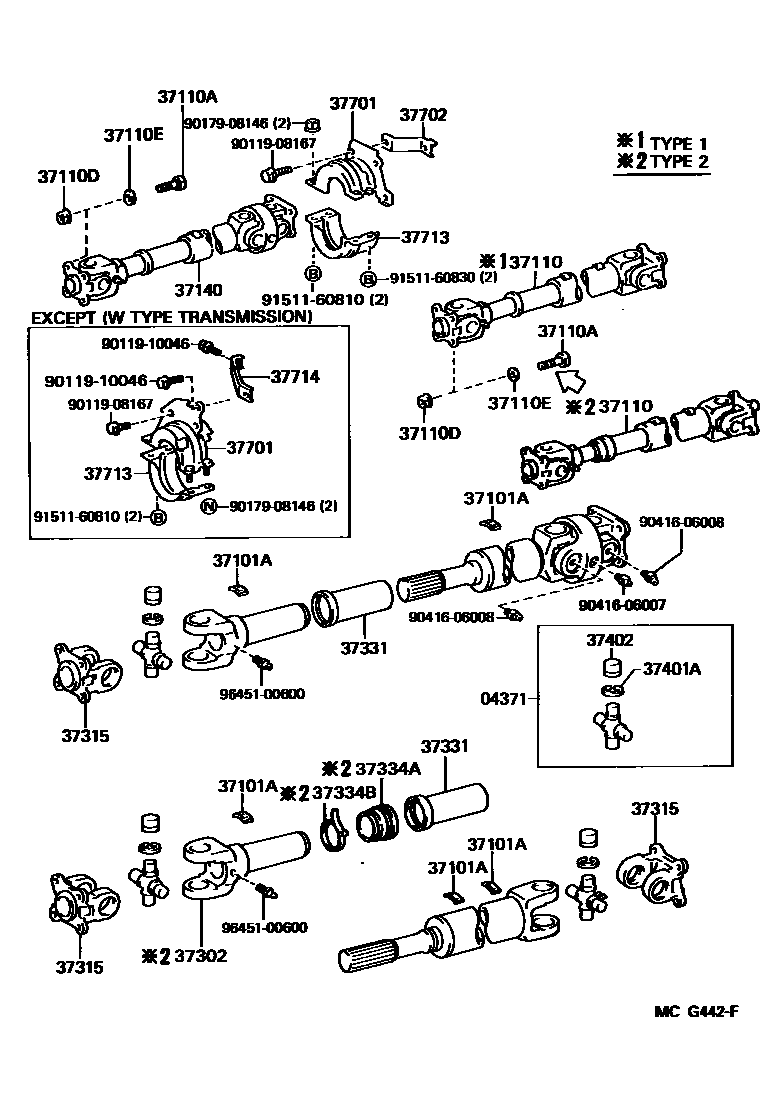

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-35031iRN10#,110,13#,VZN10#,110,13#198808-199511

sub04371-35050

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iRN10#,110,13#,VZN10#,110,13#198808-199511

10G,L=20.7

main90937-01136iRN10#,110,13#,VZN10#,110,13#199108-199511

20G,L=41.4

main90937-01147iRN10#,110,13#,VZN10#,110,13#198808-199511

2G,T=2.0

main90937-01148iRN10#,110,13#,VZN10#,110,13#198808-199511

4G,T=2.0

main90937-01149iRN10#,110,13#,VZN10#,110,13#198808-199511

6G,L=12.4

main90937-01150iRN10#,110,13#,VZN10#,110,13#198808-199511

8G,L=16.6

main90937-01151iRN10#,110,13#,VZN10#,110,13#198808-199511

12G,L=24.9

main90937-01152iRN10#,110,13#,VZN10#,110,13#198808-199511

14G,L=29.0

main90937-01153iRN10#,110,13#,VZN10#,110,13#199108-199511

16G,L=33.2

main90937-01154iRN10#,110,13#,VZN10#,110,13#199108-199511

18G,L=37.3

main90937-01155iRN10#,110,13#,VZN10#,110,13#199108-199511

22G,L=45.6

main90937-01156iRN10#,110,13#,VZN10#,110,13#199108-199511

24G,L=49.7

main90937-01157iRN10#,110,13#,VZN10#,110,13#199108-199511

26G,L=53.9

main90937-01158iRN10#,110,13#,VZN10#,110,13#199108-199511

28G,L=58.1

main90937-01184iRN10#,110,13#,VZN10#,110,13#198808-199511

4G,T=1.6

main90937-01191iRN10#,110,13#,VZN10#,110,13#198808-199511

8G,T=1.6

main90937-01192iRN10#,110,13#,VZN10#,110,13#198808-199511

12G,T=4.5

main90937-01193iRN10#,110,13#,VZN10#,110,13#198808-199511

16G,T=4.5

main90937-01194iRN10#,110,13#,VZN10#,110,13#198808-199511

20G,T=4.5

main90937-01201iRN10#,110,13#,VZN10#,110,13#198808-199511

30G,T=4.5,L=27.4

main90937-01202iRN10#,110,13#,VZN10#,110,13#198808-199511

32G,T=4.5,L=29.2

main90937-01203iRN10#,110,13#,VZN10#,110,13#198808-199511

34G,T=4.5,L=31.0

main90937-01204iRN10#,110,13#,VZN10#,110,13#198808-199511

36G,T=4.5,L=32.9

main90937-01205iRN10#,110,13#,VZN10#,110,13#198808-199511

38G,T=4.5,L=34.7

main90937-01206iRN10#,110,13#,VZN10#,110,13#198808-199511

40G,T=4.5,L=36.5

main90937-01207iRN10#,110,13#,VZN10#,110,13#198808-199511

42G,T=4.5,L=38.4

main90937-01208iRN10#,110,13#,VZN10#,110,13#198808-199511

44G,T=4.5,L=40.2

main90937-01209iRN10#,110,13#,VZN10#,110,13#198808-199511

46G,T=4.5,L=42.0

main90937-01210iRN10#,110,13#,VZN10#,110,13#198808-199511

48G,T=4.5,L=43.8

main90937-01211iRN10#,110,13#,VZN10#,110,13#198808-199511

50G,T=4.5,L=45.7

main90937-01268iRN10#,110,13#,VZN10#,110,13#198808-199511

36G,L=23.1,T=8.0

main90937-01269iRN10#,110,13#,VZN10#,110,13#198808-199511

40G,L=25.6

main90937-01270iRN10#,110,13#,VZN10#,110,13#198808-199511

44G,L=22.6

main90937-01271iRN10#,110,13#,VZN10#,110,13#198808-199511

48G,L=24.6

main90937-01272iRN10#,110,13#,VZN10#,110,13#198808-199511

52G,L=26.7

main90937-01273iRN10#,110,13#,VZN10#,110,13#198808-199511

56G,L=28.7

main90937-01274iRN10#,110,13#,VZN10#,110,13#198808-199511

60G,L=28.7

37110SHAFT ASSY, PROPELLER

main37110-35241iRN101,13#..W198808-198908

sub37110-35242

main37110-35242iRN101,13#..W198908-199501

main37110-35390iRN13#..4FC198904-198908

sub37110-35391

main37110-35441iVZN100,13#..R198808-198908

sub37110-35442

main37110-35442iVZN100,13#..R198908-199511

main37110-35450iVZN13#..4FC198904-198908

sub37110-35451

main37110-35451iVZN13#..4FC199108-199511

TYPE 1

main37110-35451iVZN13#..4FC198908-199108

main37110-35461iVZN105..R198808-198908

sub37110-35462

main37110-35462iVZN105..R198908-199208

main37110-35470iVZN105..4FC198808-198908

sub37110-35471

main37110-35471iVZN105..4FC198908-199008

main37110-35480iRN106..W198808-198908

sub37110-35481

main37110-35481iRN106..W198908-199208

main37110-35490iRN106..4FC198808-198908

main37110-35510iRN101..G198808-198908

sub37110-35511

main37110-35511iRN101..G198908-199008

main37110-35540iRN110..W198808-199501

sub37110-3D040

main37110-35550iVZN110..R;RN110..4FC198808-199501

sub37110-3D050

main37110-35560iRN110..G;VZN110..4FC198808-199501

sub37110-3D420

main37110-35580iRN106..G199008-199410

main37110-35600iRN13#..G198904-198908

sub37110-35601

main37110-35601iRN13#..G;RN101..G..DLX198908-199511

main37110-35641iRN101,13#..4FC198908-199511

main37110-35651iRN106..4FC198908-199008

main37110-35660iVZN13#..4FC199108-199511

TYPE 2

sub37110-35451

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iRN10#,110,13#..W;VZN105,110,13#..4FC198808-199511

*10-1.00PX27-13

37110DNUT (FOR PROPELLER SHAFT)

main90179-10059iRN10#,110,13#,VZN10#,110,13#198808-199511

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iRN10#,110,13#,VZN10#,110,13#198808-199511

sub90560-10H00

37140SHAFT ASSY, PROPELLER, FRONT

main37140-35050iVZN10#,110,13#198904-199511

main37140-35060iRN10#,110,13#..W198808-199501

main37140-35070iRN101,110..G;RN106,110..4FC198808-198904

main37140-35071iRN101,110,13#..G;RN106,110,13#..4FC198904-199511

main37140-35080iVZN10#,110198808-198904

sub37140-35050

main37140-35090iRN10#,110,13#..4FC198908-199511

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-35060iRN13#,VZN13#..4FC199108-199511

sub37302-35050

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040iRN10#,110,13#,VZN10#,110,13#198808-199511

37331COVER, SLIDING SHAFT DUST

main37305-35020iRN10#,110,13#,VZN10#,110,13#198808-199511

37334ABOOT, SLIDING SHAFT

main37334-35010iRN13#,VZN13#..4FC199108-199511

37334BCLAMP (FOR SLIDING SHAFT BOOT)

main90949-01761iRN13#,VZN13#..4FC199108-199511

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26038iVZN110..R;RN110..4FC198808-199511

T=2.125,MARK 1

main90520-26040iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.175,MARK 2

main90520-26041iVZN110..R;RN110..4FC198808-199511

T=2.225,MARK 3

main90520-26042iRN110..5F;VZN110..4FC;RN10#,13#,VZN10#,13#198808-199511

T=2.275,MARK 4

main90520-26043iVZN110..R;RN110..4FC198808-199511

T=2.325,MARK 5

main90520-26044iVZN110..R;RN110..4FC198808-199511

T=2.375,MARK 6

main90520-26045iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.425,MARK 7

main90520-26046iRN10#,110,13#,VZN10#,110,13#198808-199511

T=2.475,MARK 8

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-30011iRN10#,13#,VZN10#,13#198808-199511

sub04371-60070

sub04371-60100

main37402-30021iRN10#,13#,VZN10#,13#198808-199511

RED PAINTED

sub04371-60070

sub04371-60100

37701COVER SUB-ASSY, PROPELLER SHAFT DUST

main37701-35071iRN10#,110,13#,VZN10#,110,13#..G,R198808-199511

main37701-35081iVZN105,110,13#..4FC198808-199008

main37701-35082iVZN110,13#..4FC199008-199511

main37701-35100iRN10#,110,13#..W198808-199501

main37701-35110iRN10#,110,13#..4FC198908-199511

37702STAY SUB-ASSY, PROPELLER SHAFT DUST COVER

main37702-35030iRN10#,110,13#..W198808-199501

37713COVER, PROPELLER SHAFT DUST, NO.2

main37713-35041iRN10#,110,13#..W198808-199501

main37713-35060iRN106,110,13#,VZN105,110,13#..4FC198808-199511

main37713-35070iRN10#,110,13#,VZN10#,110,13#..G,R198808-199511

37714STAY, PROPELLER SHAFT DUST COVER

main37714-35050iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

sub37714-35051

main37714-35061iVZN105,110,13#..4FC198808-199008

main37714-35062iVZN110,13#..4FC199008-199511

9011908167

main90119-08167

9011910046

main90119-10046

9017908146

main90179-08146

9041606007

main90416-06007

9041606008

main90416-06008

9151160810

main91511-60810

9151160830

main91511-60830

9645100600

main96451-00600

26 parts on this diagram · 2 diagrams in section
