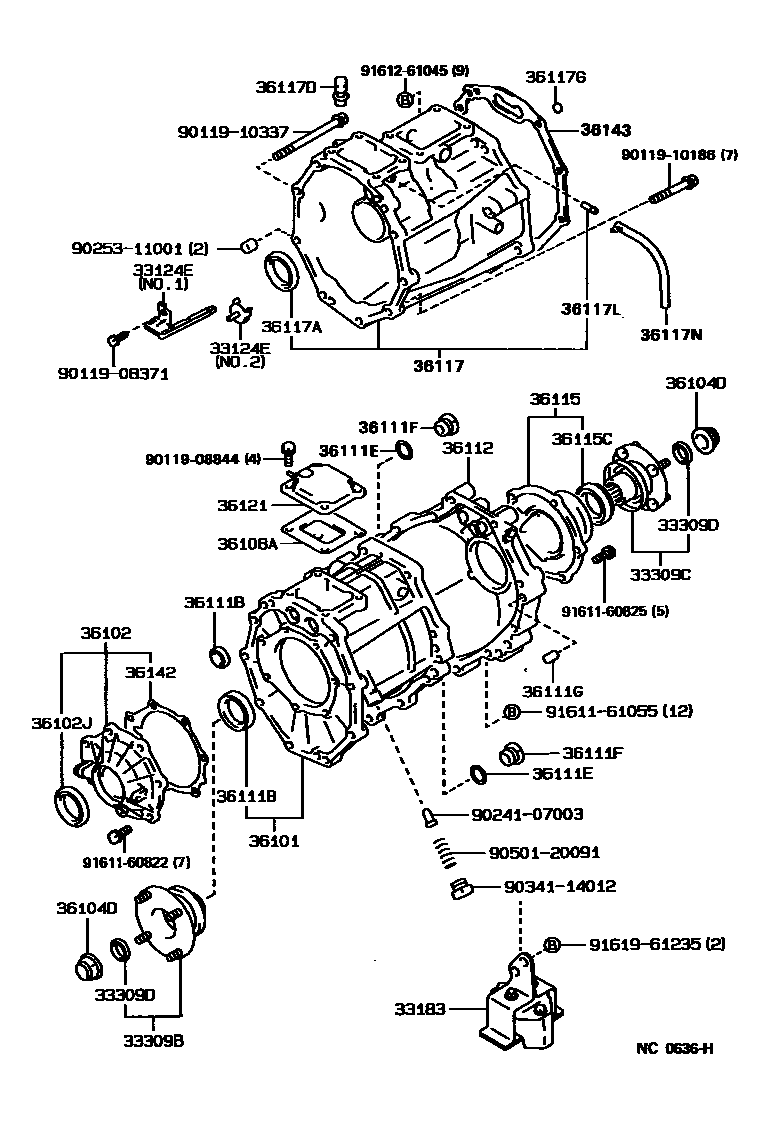

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0005 1 0006 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35010iRN10#,110,13#..W198808-199110

sub33106-35040

main33106-35020iRN10#,110,130..W199110-199501

main33124-35070iRN10#,110,13#..G198808-199511

NO.2

main33124-35100iVZN100,110,13#..R199405-199511

main33124-36010iVZN10#,110,13#..R198808-199405

main33124-36010iRN10#,110,13#..G198808-199511

NO.1

33183DAMPER, TRANSFER DYNAMIC

main33183-35010iRN10#,13#,VZN10#,13#..G,R198808-199511

main33183-35020iRN110,VZN110..G,R199108-199501

main33183-35032iVZN105,13#..4FC198808-199511

main33183-35040iVZN110..4FC199108-199501

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35030iRN10#,110,13#..W198808-199501

main33309-35061iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

sub33309-35063

sub90311-41017

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35040iRN10#,110,13#..W198808-199501

main33309-35080iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

sub33309-35100

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

36101CASE SUB-ASSY, TRANSFER

main36101-35020iVZN10#,110..R198808-198904

sub36101-35021

sub90341-18006

sub90430-18008

main36101-35021iVZN10#,110,13#..R198904-199106

sub36101-35022

sub36314-35101

main36101-35022iVZN10#,110,13#..R199106-199108

main36101-35030iRN101,110..G198808-198904

sub36101-35031

sub90341-18006

sub90430-18008

main36101-35031iRN101,110,13#..G198904-199106

sub36101-35032

sub36314-35091

main36101-35032iRN131;RN10#,110,130..G;RN101,110,130..4FC199106-199108

main36101-35050iVZN10#,110,13#..R199108-199511

main36101-35060iRN131;RN10#,110,130..G;RN101,110,130..4FC199108-199511

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35011iRN101,110,13#,VZN10#,110,13#..G,R198808-199506

sub36102-35012

main36102-35012iRN13#;VZN13#..R199506-199511

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40007iRN101,110,13#,VZN10#,110,13#..G,R198808-199506

main90311-40021iRN13#;VZN13#..R199506-199511

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iRN10#,110,13#..W198808-199501

main90179-22016iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35030iRN101,110,13#..G198808-199511

sub36108-35031

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iRN101,110,13#..G198808-199511

FORK SHAFT SIDE

main90311-41006iVZN10#,110,13#..R198808-199406

sub90311-41008

main90311-41006iRN10#,110,13#..G;RN10#,110,13#..4FC198808-199406

FR OUTPUT SIDE

sub90311-41008

main90311-41008iVZN100,110,13#..R199406-199511

FR OUTPUT SIDE

sub90311-41011

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iRN101,110,VZN10#,110..G,R198808-199511

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iRN10#,110,13#,VZN10#,110,13#..G,R198808-199511

FILLER

main90341-18057iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

DRAIN

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

L=14,OD=10

main90250-10232iRN10#,110,13#..W198808-199501

L=15,OD=8

36112CASE, TRANSFER, REAR

main36112-35020iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

36115HOUSING, TRANSFER EXTENSION

main36105-35020iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

sub36105-35040

main36115-35010iRN10#,110,13#..W198808-199501

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iRN10#,110,13#..W198808-199501

main90311-41005iRN10#,110,13#..4FC;RN10#,110,13#,VZN10#,110,13#..G,R198808-199406

sub90311-41007

main90311-41007iRN101,110..4FC;RN106,13#,VZN100;RN101,110,VZN110,13#..G,R199406-199511

sub90311-41020

36117ADAPTER, TRANSFER

main36107-35071iVZN10#,110,13#..R198808-199011

sub36107-35072

sub90930-03075

main36107-35072iVZN10#,110,13#..R199011-199208

sub36107-35150

sub33521-35240

main36107-35080iRN10#,110,13#..W198808-199110

main36107-35100iRN10#,110,13#..G198808-199511

main36107-35140iRN10#,110,130..W199110-199501

main36107-35150iVZN100,110,13#..R199208-199405

main36107-35180iVZN100,110,13#..R199405-199511

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-32009iRN10#,110,13#..W198808-199501

main90311-40007iRN10#,110,13#,VZN10#,110,13#..G,R198808-199511

36117DPLUG(FOR TRANSFER ADAPTER)

main90930-03085iRN10#,110,13#..G198808-199511

main90930-03114iVZN10#,110,13#..R198808-199511

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90331-21003iVZN100,110,13#..R199208-199511

main90341-10065iRN10#,110,13#..W198808-199501

main90341-20010iRN10#,110,13#..G198808-199511

main96411-41800iVZN10#,110,13#..R198808-199208

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iRN10#,110,13#,VZN10#,110,13#..G,R198808-199511

sub90406-T0007

36117NHOSE(FOR TRANSFER ADAPTER)

main90445-08265iRN101,110,13#..G198808-199511

36121COVER, TRANSFER CASE, NO.1

main36102-35020iRN10#,110,13#..G;RN10#,110,13#..4FC198808-199511

sub36102-35040

main36121-35010iRN10#,110,13#..W198808-199501

36142GASKET, TRANSFER COVER

main36142-35010iRN101,110,13#,VZN10#,110,13#..G,R198808-199511

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iRN10#,110,13#..W198808-199501

main36143-35030iVZN10#,110,13#..R198808-199511

9011908371

main90119-08371

9011908844

main90119-08844

9011910186

main90119-10186

9011910337

main90119-10337

9024107003

main90241-07003

9025311001

main90253-11001

9034114012

main90341-14012

9050120091

main90501-20091

9161160822

main91611-60822

9161160825

main91611-60825

9161161055

main91611-61055

9161261045

main91612-61045

9161961235

main91619-61235

39 parts on this diagram · 5 diagrams in section
