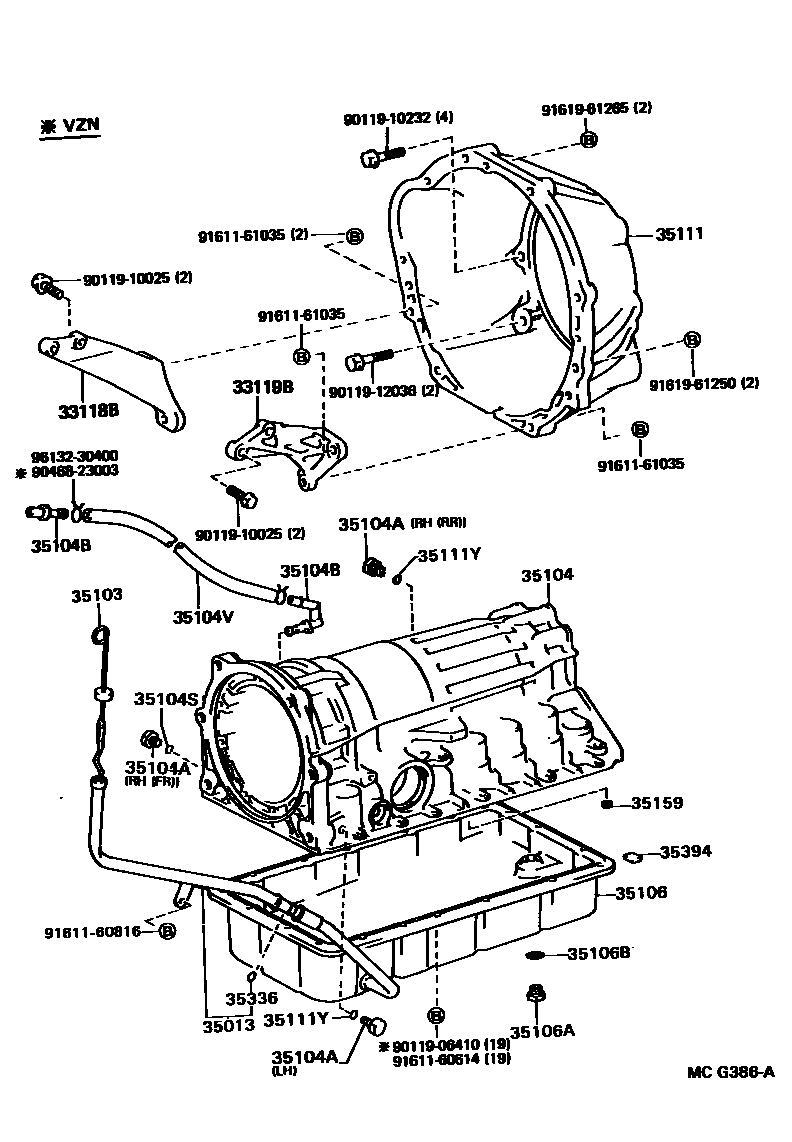

TRANSMISSION CASE & OIL PAN (ATM)

33118BPLATE, STIFFENER, RH(ATM)

main33118-35020iRN10#,110,13#..4FC198808-199511

main33118-35040iVZN105,110,13#..4FC198808-199511

33119BPLATE, STIFFENER, LH(ATM)

main33119-35021iRN10#,110,13#..4FC198808-199511

main33119-35030iVZN105,110,13#..4FC198808-199511

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-35140iRN10#,110,13#..4FC198808-199511

main35013-35171iVZN105,110..4FC198808-198903

main35013-35200iVZN105,110,13#..4FC198903-199511

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-35130iRN106,110,13#..4FC198808-198908

main35103-35151iVZN105,110..4FC198808-198903

main35103-35190iVZN105,110,13#..4FC198903-199511

main35103-35200iRN10#,110,13#..4FC198908-199511

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-35011iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iVZN105,110,13#..4FC198808-199511

RH(RR) OR LH

main90341-08001iRN10#,110,13#,VZN105,110,13#..4FC198908-199511

main90341-14011iRN101,110,131..4FC198808-199511

RH(FR)

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iRN101,110,131..4FC198808-199511

MISSION CASE SIDE

main90930-03099iRN10#,110,13#..4FC198808-199511

BODY SIDE

main90930-03116iVZN105,110,13#..4FC198808-199511

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-11006iRN101,110,131,VZN110..4FC198808-199511

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iRN101,110,131..4FC198808-199511

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-35010iRN106,110,13#..4FC198808-198908

sub35106-35011

main35106-35011iRN10#,110,13#..4FC198908-199001

sub35106-35012

main35106-35012iRN101,110,131..4FC199001-199511

main35106-35020iVZN105,110,13#..4FC198808-198905

sub35106-35021

main35106-35021iVZN105,110,13#..4FC198908-198911

sub35106-35022

main35106-35022iVZN105,110,13#..4FC198911-199511

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iVZN110..4FC..DLX;RN106,110,VZN105..4FC198808-199511

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iRN131,VZN13#..4FC198808-199511

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35031iRN101,110,131..4FC198808-199511

main35111-35051iVZN13#..4FC198808-199511

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35159GASKET, BRAKE DRUM

main35159-30010iRN101,110,131,VZN110,13#..4FC198808-199511

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iVZN105,110,13#..4FC198808-199511

main90301-09173iRN10#,110,13#..4FC198808-199511

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

9011906410

main90119-06410

9011910025

main90119-10025

9011910232

main90119-10232

9011912036

main90119-12036

9046823003

main90468-23003

9161160614

main91611-60614

9161160816

main91611-60816

9161161035

main91611-61035

9161961250

main91619-61250

9161961265

main91619-61265

9613230400

main96132-30400

28 parts on this diagram · 1 diagram in section
