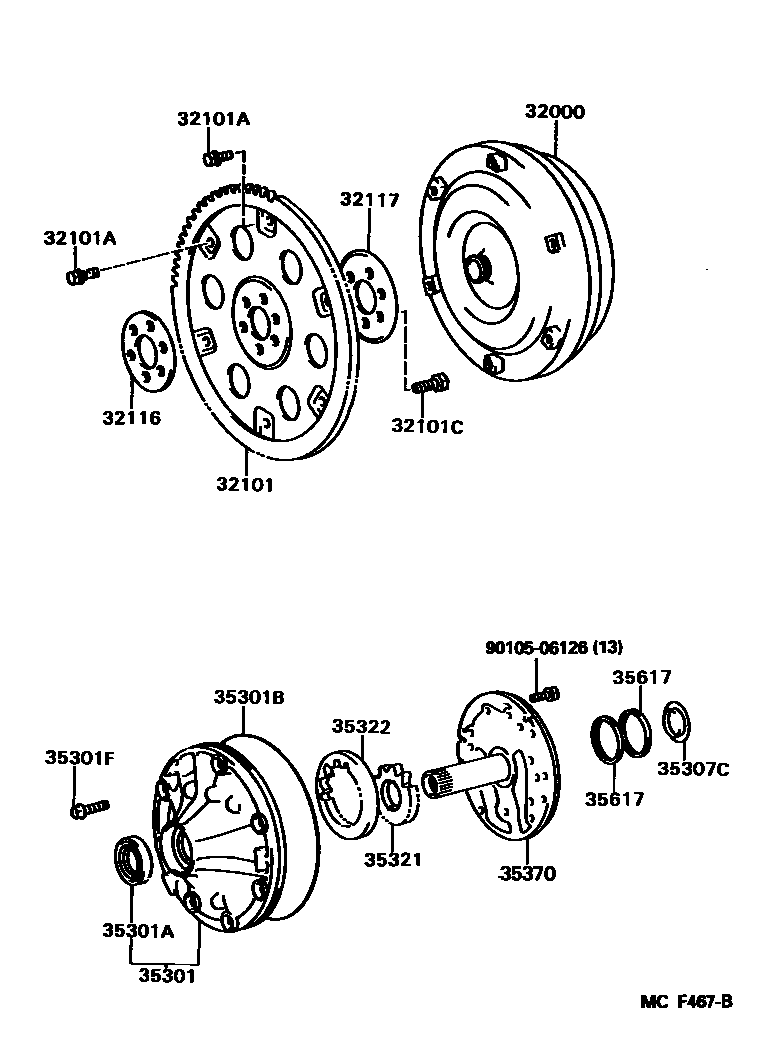

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-35050iRN101,110,131..4FC198808-199511

main32000-35080iVZN105,110,13#..4FC198808-198908

main32000-35090iVZN110,13#..4FC199108-199511

main32000-35100iVZN110,13#..4FC198908-199108

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20050iRN10#,110,13#..4FC198808-199511

main32101-35010iVZN105,110,13#..4FC198808-199511

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iRN10#,110,13#..4FC198808-199511

*8-1.25PX12-8.4

main90119-08498iRN10#,110,13#..4FC198808-199511

*8-1.25PX12-8

main90119-09009iVZN105,110,13#..4FC198808-199511

*9-1.25PX12.8-8.8

main90119-09010iVZN105,110,13#..4FC198808-199511

*9-1.25PX12.8-9

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iVZN105,110,13#..4FC198906-199511

*10-1.25PX18-13

main90105-10095iVZN105,110,13#..4FC198808-198906

*10-1.25PX18-13

sub90105-10048

main90913-01011iRN10#,110,13#..4FC198808-199511

*17-1.25PX26-18

32116SPACER, DRIVE PLATE, FRONT

main32116-20011iRN10#,110,13#..4FC198808-199511

main32116-32020iVZN105,110,13#..4FC198808-199511

32117SPACER, DRIVE PLATE, REAR

main32117-20021iRN10#,110,13#..4FC198808-199511

main32117-32020iVZN105,110,13#..4FC198808-199511

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30040iRN101,110,131..4FC198908-199511

main35301-35010iVZN13#..4FC198808-199511

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iRN131,VZN13#..4FC198808-199511

*8-1.25PX35-35

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iRN101,110,131,VZN110,13#..4FC198808-199511

T=3.7

sub35789-30340

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iVZN13#..4FC198808-199511

T=10.690-10.699

main35321-12030iVZN13#..4FC198808-199511

T=10.700-10.709

main35321-12040iVZN105,110,13#..4FC198808-199511

T=10.710-10.720

main35321-12050iVZN13#..4FC198808-199511

T=10.721-10.730

main35321-12060iRN106,110,13#,VZN105,110,13#..4FC198808-199511

T=10.731-10.740

main35321-12090iRN101,110,13#..4FC199108-199307

T=9.460-9.470

main35321-32050iRN10#,110,13#..4FC198908-199108

T=9.456-9.474

sub35321-12090

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12080iRN101,110,13#..4FC199108-199307

T=9.460-9.470

main35322-32050iRN10#,110,13#..4FC198908-199108

T=9.456-9.474

sub35322-12080

main35322-35010iVZN105,110,13#..4FC198808-199511

T=10.690-10.740

sub35322-12030

35370SHAFT ASSY, STATOR

main35370-30031iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

9010506126

main90105-06126

16 parts on this diagram · 1 diagram in section
