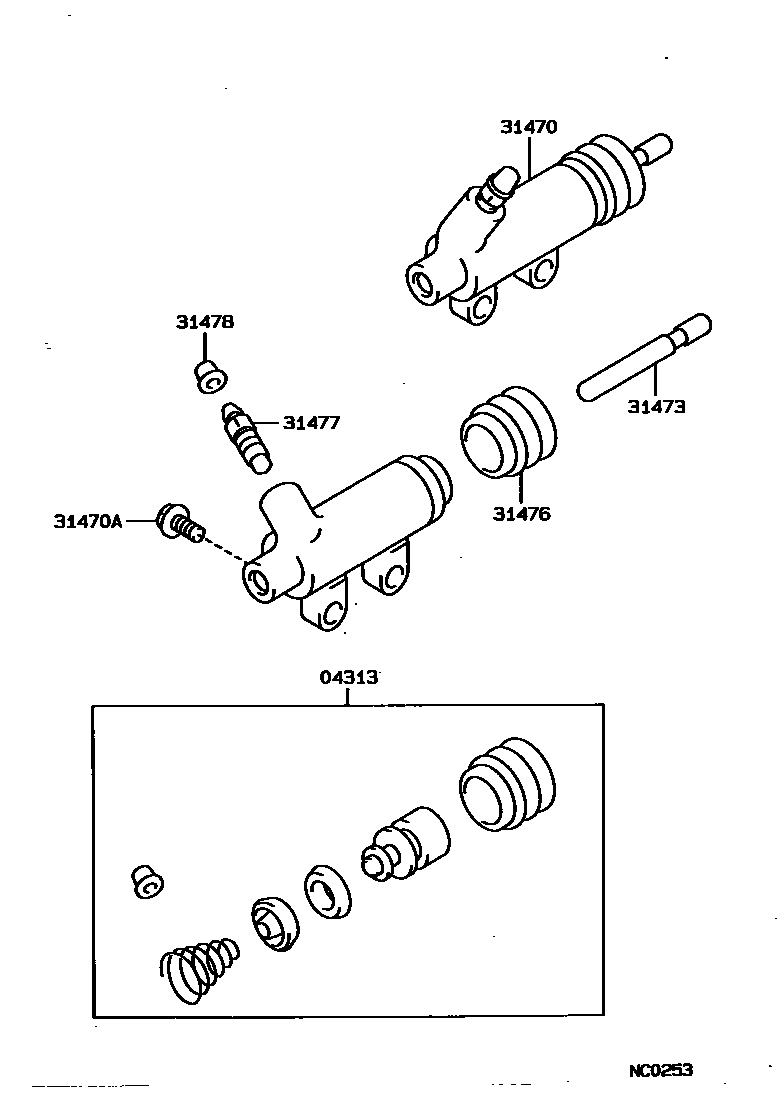

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iRN10#,110,13#,VZN10#,110,13#..5F¥800198808-199110

main04313-17010iVZN10#,110,13#..R¥780198909-199511

main04313-22030iRN10#,110,13#..5F¥860199110-199511

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22150iRN10#,110,13#..5F¥7,400199110-199511

main31470-30260iRN10#,110,13#..5F¥7,400198808-199110

main31470-35071iVZN10#,110,13#..R¥7,400198808-198909

sub31470-35100¥7,400

main31470-35100iVZN10#,110,13#..R¥7,400198909-199511

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iVZN10#,110,13#..R¥200198808-199501

*8-1.25PX20-20

sub91611-G0820¥160

main91611-60825iRN10#,110,13#..5F¥140198808-199511

*8-1.25PX25-25

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iRN10#,110,13#,VZN10#,110,13#..5F¥720198808-199110

main31473-35050iVZN10#,110,13#..R¥250198909-199511

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iRN10#,110,13#,VZN10#,110,13#..5F¥230198808-199511

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRN10#,110,13#,VZN10#,110,13#..5F¥180198808-199511

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRN10#,110,13#,VZN10#,110,13#..5F¥160198808-199511

7 parts on this diagram · 1 diagram in section
