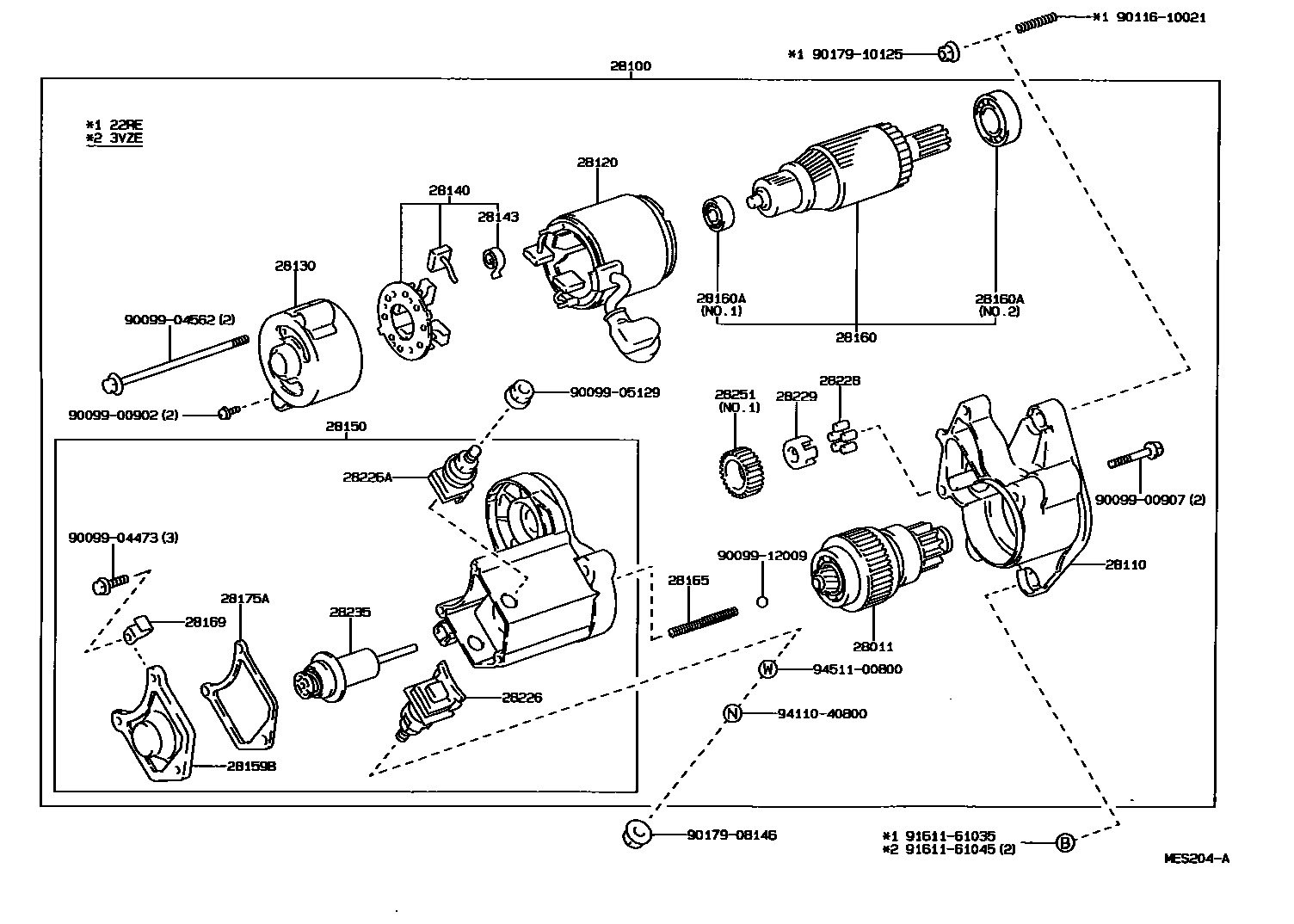

STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 1.4KW 0004 112V 1.4KW,1.6KW

28011CLUTCH SUB-ASSY, STARTER

main28011-35030i3VZE..VZN10#,110,13#198808-199511

main28011-76070i22RE..RN10#,110,13#199108-199511

28100STARTER ASSY

main28100-08020i22RE..RN10#,110,13#199301-199308

12V 1.4KW,12V 1.4KW,NIPPONDENSO USA

main28100-08040i22RE..RN10#,110,13#199308-199501

12V 1.4KW,12V 1.4KW,NIPPONDENSO USA

main28100-08040i22RE..RN13#199501-199511

12V 1.4KW,NUMMI

main28100-35030i22RE..RN130198808-199108

12V 1.0KW

sub28100-35060

main28100-35040i22RE..RN10#,110,130..USA198808-199108

12V 1.4KW,COLD SPEC

sub28100-35060

main28100-35040i22RE..RN10#,110,131..CND198808-199108

12V 1.4KW

sub28100-35060

main28100-35060i22RE..RN10#,110,13#199108-199308

12V 1.4KW,12V 1.4KW,NIPPONDENSO

main28100-35090i22RE..RN10#,110,13#199308-199501

12V 1.4KW,12V 1.4KW,NIPPONDENSO

main28100-35090i22RE..RN13#199501-199511

12V 1.4KW,NIPPONDENSO

main28100-65010i3VZE..VZN130..R198808-199108

12V 1.0KW

sub28100-65030

main28100-65020i3VZE..VZN130..R198808-199308

12V 1.4KW

sub28100-65030

main28100-65020i3VZE..VZN130..R198808-199108

12V 1.4KW,COLD SPEC

sub28100-65030

main28100-65030i3VZE..VZN110,131..4FC..CND198808-199308

12V 1.6KW

main28100-65030i3VZE..VZN105,110,130..4FC..USA198808-199308

12V 1.6KW,COLD SPEC

main28100-65090i3VZE..VZN100,130;3VZE..VZN110..USA;3VZE..VZN110,131..R..CND199308-199511

12V 1.4KW

sub28100-65100

main28100-65100i3VZE..VZN110,130..4FC..USA199308-199511

12V 1.6KW

main28100-65100i3VZE..VZN110,130..4FC..USA199308-199511

12V 1.6KW,COLD SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-34080i22RE..RN10#,110,130..USA198808-199108

main28110-35020i22RE..RN130198808-199108

COLD SPEC

main28110-35060i22RE..RN10#,110,13#199108-199511

main28110-65010i3VZE..VZN130..R198808-199108

main28110-65020i3VZE..VZN10#,110,130..R..USA198808-199108

COLD SPEC

main28110-65020i3VZE..VZN10#,110,13#199108-199511

28120YOKE ASSY, STARTER

main28120-15090i3VZE..VZN10#,130;3VZE..VZN110..USA;3VZE..VZN110,131..R..CND199108-199511

main28120-15090i3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND198808-199108

COLD SPEC

main28120-26071i22RE..RN130;3VZE..VZN130..R198808-199108

main28120-65030i3VZE..VZN110,130..4FC..USA198808-199511

COLD SPEC

main28120-65030i3VZE..VZN110,131..4FC..CND198808-199511

main28120-74070i22RE..RN10#,110,13#199108-199511

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-34060i22RE..RN130;3VZE..VZN130..R198808-199108

main28130-35020i22RE..RN10#,110,130..USA198808-199108

COLD SPEC

main28130-35060i22RE..RN10#,110,13#199108-199511

main28130-65090i3VZE..VZN100,110,13#199308-199511

main28130-72020i3VZE..VZN110..R..CND;3VZE..VZN10#,131..CND;3VZE..VZN105,110,130..4FC198808-199108

COLD SPEC

main28130-72020i3VZE..VZN10#,110,13#199108-199308

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i22RE..RN10#,110..CND198808-198901

COLD SPEC

main28140-26070i3VZE..VZN105,110..R..USA;22RE,3VZE..RN10#,110,VZN100..USA198808-198901

main28140-35060i22RE..RN10#,110,13#199108-199511

main28140-65010i22RE..RN130;3VZE..VZN130..R198901-199108

main28140-65020i3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND198808-199108

COLD SPEC

main28140-65020i3VZE..VZN10#,110,13#199108-199511

28143SPRING, STARTER BRUSH

main90099-17112i22RE..RN10#,110,13#198808-199511

28150SWITCH ASSY, MAGNET STARTER

main28150-35030i22RE..RN10#,110..USA198808-198901

sub28150-35031

main28150-35031i22RE..RN130198901-199108

main28150-35040i22RE..RN10#,110..CND198808-198901

COLD SPEC

sub28150-35041

main28150-35041i22RE..RN130198901-199108

COLD SPEC

main28150-35060i22RE..RN10#,110,13#199108-199308

main28150-65010i3VZE..VZN10#,110..R..USA198808-198901

sub28150-65011

main28150-65011i3VZE..VZN10#,110,130..R..USA198901-199108

main28150-65020i3VZE..VZN105,110..4FC;3VZE..VZN10#,110..R..CND198808-198901

COLD SPEC

sub28150-65021

main28150-65021i3VZE..VZN10#,110,130..R..USA198901-199108

COLD SPEC

main28150-65021i3VZE..VZN10#,110,13#199108-199308

main28150-65090i3VZE..VZN100,110,13#199308-199511

main28150-72160i22RE..RN10#,110,13#199308-199511

28159BCOVER, MAGNET SWITCH

main28159-10040i3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130198808-199511

main28159-55050i22RE..RN10#,110,13#199108-199511

28160ARMATURE ASSY, STARTER

main28160-15090i3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND198808-198908

COLD SPEC

sub28160-15091

main28160-15090i3VZE..VZN10#,130;3VZE..VZN110..USA;3VZE..VZN110,131..R..CND199108-199511

sub28160-15091

main28160-15091i22RE..RN130;3VZE..VZN130..R198908-199108

COLD SPEC

main28160-26070i3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA198808-198908

sub28160-26071

main28160-26071i3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA198908-199108

main28160-65030i3VZE..VZN105,110,130..4FC..USA198808-198908

COLD SPEC

sub28160-65031

main28160-65031i3VZE..VZN110,131..4FC..CND198908-199511

main28160-65031i3VZE..VZN110,130..4FC..USA198908-199511

COLD SPEC

main28160-74070i22RE..RN10#,110,13#199108-199511

28160ABEARING, STARTER ARMATURE

main28253-45020i3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA198808-199108

NO.1

main90099-10113i3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA198808-199108

NO.2

main90099-10143i3VZE..VZN10#,110,13#198808-199511

NO.2

main90099-10143i3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND198808-199108

COLD SPEC,NO.2

main90099-10144i22RE..RN130;3VZE..VZN130..R198808-199108

COLD SPEC,NO.1

main90099-10144i22RE..RN130;3VZE..VZN130..R198808-199511

NO.1

main90099-10196i22RE..RN10#,110,13#199108-199511

NO.1

main90099-10197i22RE..RN10#,110,13#199108-199511

NO.2

main90099-65030i3VZE..VZN105,110,130..4FC..USA198808-199108

NO.2

main90099-65030i3VZE..VZN110,131..4FC..CND198808-199108

COLD SPEC,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

main28165-76070i22RE..RN10#,110,13#199108-199511

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130198808-199511

main28169-55050i22RE..RN10#,110,13#199108-199511

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130198808-199511

main28175-55050i22RE..RN10#,110,13#199108-199511

28226STARTER KIT, BATTERY TERMINAL

main28226-16130i22RE..RN10#,110,13#199108-199308

main28226-55050i22RE..RN10#,110,13#199308-199511

sub28226-64370

main28226-70040i3VZE..VZN100,110,13#199308-199511

main28226-72080i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199308

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

main28226-74070i22RE..RN10#,110,13#199108-199511

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

28229RETAINER, STARTER IDLE GEAR

main28229-26040i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

main28229-74070i22RE..RN10#,110,13#199108-199511

28235PLUNGER, MAGNET SWITCH

main28235-35080i3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130198808-199511

main28235-55050i22RE..RN10#,110,13#199108-199511

28251PINION, STARTER DRIVE

main28251-15090i22RE..RN130;3VZE..VZN130..R198808-199108

COLD SPEC,NO.2

main28251-15090i3VZE..VZN10#,110,13#199108-199511

main28251-15090i3VZE..VZN130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,110,131198808-199108

NO.2

main28254-45020i22RE..RN130;3VZE..VZN130..R198808-199108

COLD SPEC,NO.1

main28254-45020i22RE..RN130;3VZE..VZN130..R198808-199108

NO.1

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011610021

main90116-10021

9017908146

main90179-08146

9017910125

main90179-10125

9161161035

main91611-61035

9161161045

main91611-61045

9411040800

main94110-40800

9451100800

main94511-00800

33 parts on this diagram · 4 diagrams in section
