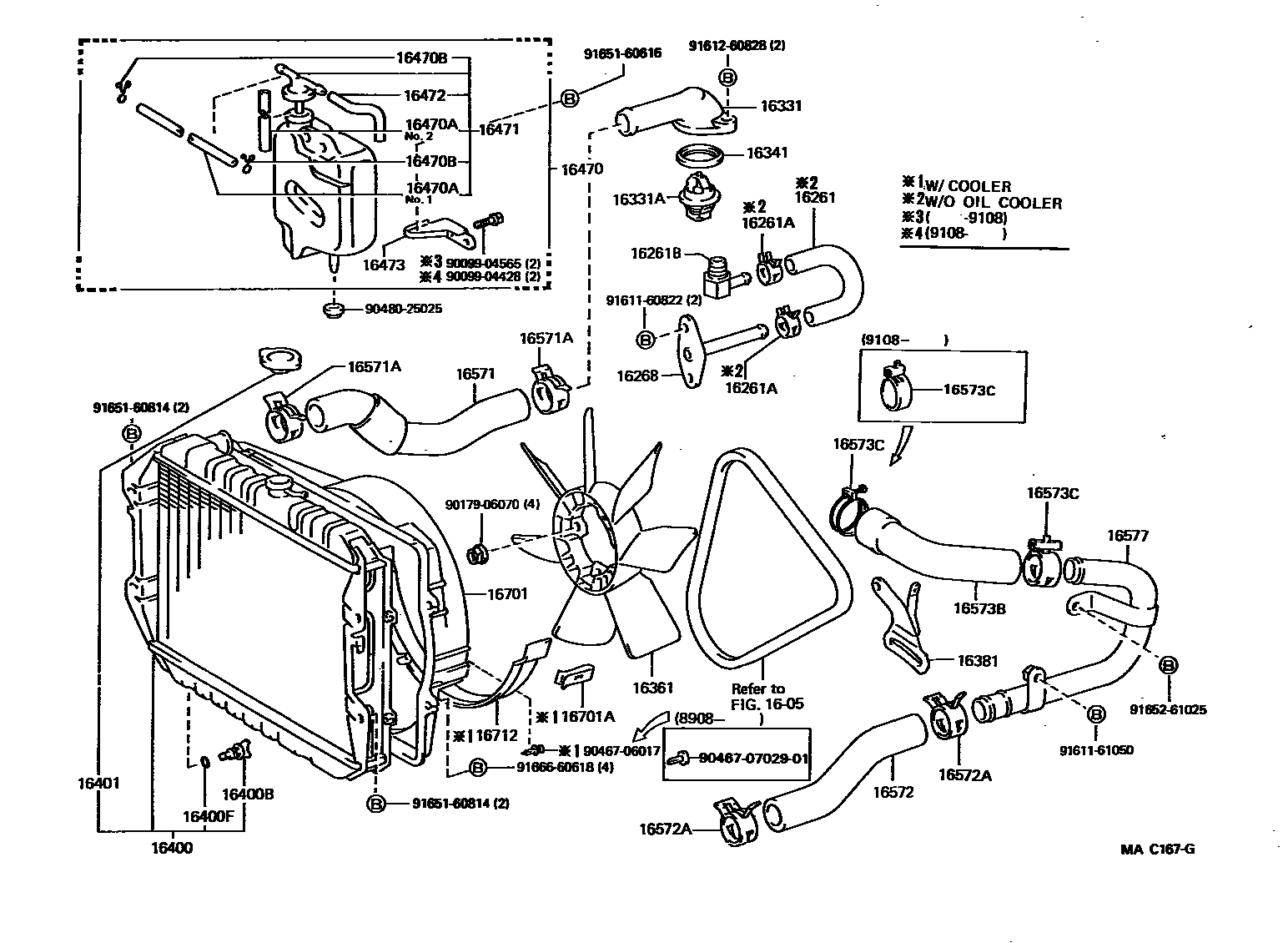

RADIATOR & WATER OUTLET

0001 1 0002 1

1605

16261HOSE, WATER BY-PASS

main16261-35030i22RE..RN10#,110;22RE..RN13#..5F198808-199511

main16261-65011i3VZE..VZN10#,110,13#198808-199108

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-20005i22RE..RN10#,110;22RE..RN13#..5F198808-199511

sub96134-41900

main90467-23003i3VZE..VZN10#,110,13#198808-199108

sub96134-42300

16261BUNION(FOR WATER BY-PASS HOSE)

main90407-53007i22RE..RN10#,110,13#198808-199511

16268PIPE, WATER BY-PASS, NO.1

main16268-35030i22RE..RN10#,110,13#198808-199511

main16268-65011i3VZE..VZN10#,110,13#198808-199511

16331OUTLET, WATER

main16331-35040i22RE..RN10#,110,13#198808-199009

sub16331-35041

main16331-35041i22RE..RN10#,110,13#199009-199511

main16331-65011i3VZE..VZN10#,110,13#198808-199108

main16331-65020i3VZE..VZN10#,110,13#199108-199511

16331ATHERMOSTAT

main90916-03078i22RE..RN10#,110,13#198808-199511

*WAX 88-100

main90916-03079i3VZE..VZN10#,110,13#198808-199511

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-35010i22RE..RN10#,110,13#198808-199511

main16341-65010i3VZE..VZN10#,110,13#198808-199511

sub16341-35010

16361FAN

main16361-38010i22RE..RN10#,110,13#198808-199511

main16361-65010i3VZE..VZN10#,110,13#198808-199308

main16361-65020i3VZE..VZN100,110,13#199308-199511

16381BAR, FAN BELT ADJUSTING

main16381-35021i22RE..RN10#,110,13#198808-199511

main16381-65010i3VZE..VZN10#,110,13#198808-199511

16400RADIATOR ASSY

main16400-35350i22RE..RN10#,110..5F198808-199501

main16400-35380i22RE..RN10#,110..4FC198808-199501

main16400-35520i22RE..RN13#..5F198904-199511

sub16400-35530

main16400-35530i22RE..RN13#..4FC198904-199511

main16400-65040i3VZE..VZN10#,110,13#..R198808-199005

sub16400-65060

main16400-65041i3VZE..VZN10#,110,13#..R199005-199108

sub16400-65070

main16400-65060i3VZE..VZN105,110,13#..4FC198808-199005

main16400-65061i3VZE..VZN105,110,13#..4FC199005-199108

sub16400-65070

main16400-65100i3VZE..VZN10#,110,13#..R199108-199511

sub16400-65120

main16400-65120i3VZE..VZN110,13#..4FC199108-199511

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i3VZE..VZN10#,110,13#198808-199511

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96711-19007i3VZE..VZN10#,110,13#198808-199511

16401CAP SUB-ASSY, RADIATOR

main16401-63010i3VZE..VZN10#,110,13#198808-199511

16470TANK ASSY, RADIATOR RESERVE

main16470-35070i22RE..RN10#,110,13#198808-199108

sub16470-35110

main16470-35080i3VZE..VZN10#,110,13#198808-198908

sub16470-65010

main16470-35110i22RE..RN10#,110,13#199108-199511

main16470-65010i3VZE..VZN10#,110,13#198908-199108

main16470-65020i3VZE..VZN10#,110,13#199108-199511

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-70070i3VZE..VZN10#,110,13#198808-199511

NO.3

main90445-12078i22RE..RN10#,110,13#198808-199511

L=600,NO.1,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i22RE..RN10#,110,13#198808-199511

16471CAP SUB-ASSY, RESERVE TANK

main16405-35010i22RE..RN10#,110,13#198808-199511

main16405-35040i3VZE..VZN10#,110,13#198808-199511

16472HOSE, BREATHER

main85338-71030i22RE..RN10#,110,13#198808-199511

16473SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-35110i22RE..RN10#,110,13#199108-199511

16571HOSE, RADIATOR, INLET

main16571-35080i22RE..RN10#,110..5F198808-199205

sub16571-35180

main16571-35130i22RE..RN13#;22RE..RN10#,110..4FC198808-199205

sub16571-35180

main16571-35180i22RE..RN10#,110,13#199205-199511

main16571-65011i3VZE..VZN10#,110,13#198808-199511

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37003i22RE..RN10#,110,13#198808-199511

16572HOSE, RADIATOR, OUTLET

main16572-35030i22RE..RN10#,110..5F198808-199108

main16572-35070i22RE..RN10#,110..4FC198808-199108

main16572-35100i22RE..RN13#198904-199108

main16572-35120i22RE..RN10#,110..5F199108-199501

main16572-35150i22RE..RN101,110..4FC199108-199501

main16572-35160i22RE..RN13#199108-199511

main16572-65010i3VZE..VZN10#,110,13#198808-199511

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002i22RE..RN10#,110,13#199001-199108

sub90467-37005

main90467-38001i3VZE..VZN10#,110,13#198808-199511

sub90466-38001

16573BHOSE, RADIATOR, NO.3

main16573-35030i22RE..RN10#,110,13#199108-199511

main16573-38020i22RE..RN10#,110,13#198808-199108

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-37002i22RE..RN10#,110,13#199001-199108

PIPE SIDE

sub90467-37005

main90467-38001i22RE..RN10#,110,13#198808-199511

PIPE SIDE

sub90466-38001

main90467-41006i22RE..RN10#,110,13#199108-199511

CHAIN COVER SIDE

sub90467-41002

main96111-10490i22RE..RN10#,110,13#198808-199108

CHAIN COVER SIDE

16577PIPE, RADIATOR, NO.7

main16577-35030i22RE..RN10#,110,13#198808-199108

sub16577-35070

main16577-35070i22RE..RN10#,110,13#199108-199511

16701SHROUD SUB-ASSY, FAN

main16711-35020i22RE..RN10#,110..5F198808-199501

main16711-35050i22RE..RN10#,110..4FC198808-199204

sub16711-35051

main16711-35051i22RE..RN101,110..4FC199204-199501

main16711-35060i22RE..RN13#198904-198908

main16711-35061i22RE..RN13#198908-199511

main16711-65030i3VZE..VZN10#,110,13#198808-199005

main16711-65031i3VZE..VZN10#,110,13#199005-199511

16701ACLIP(FOR FAN SHROUD)

main90468-06013i22RE..RN10#,110198808-199511

16712SHROUD, FAN, NO.2

main16712-35010i22RE..RN13#198904-198908

main16712-35011i22RE..RN13#198908-199511

main16712-54050i22RE..RN10#,110198808-199501

main16712-65010i3VZE..VZN10#,110,13#198808-199511

9009904428

main90099-04428

9009904565

main90099-04565

9017906070

main90179-06070

9046706017

main90467-06017

904670702901

main90467-0702901

9048025025

main90480-25025

9161160822

main91611-60822

9161161050

main91611-61050

9161260828

main91612-60828

9165160616

main91651-60616

9165160814

main91651-60814

9165261025

main91652-61025

9166660618

main91666-60618

43 parts on this diagram · 2 diagrams in section
