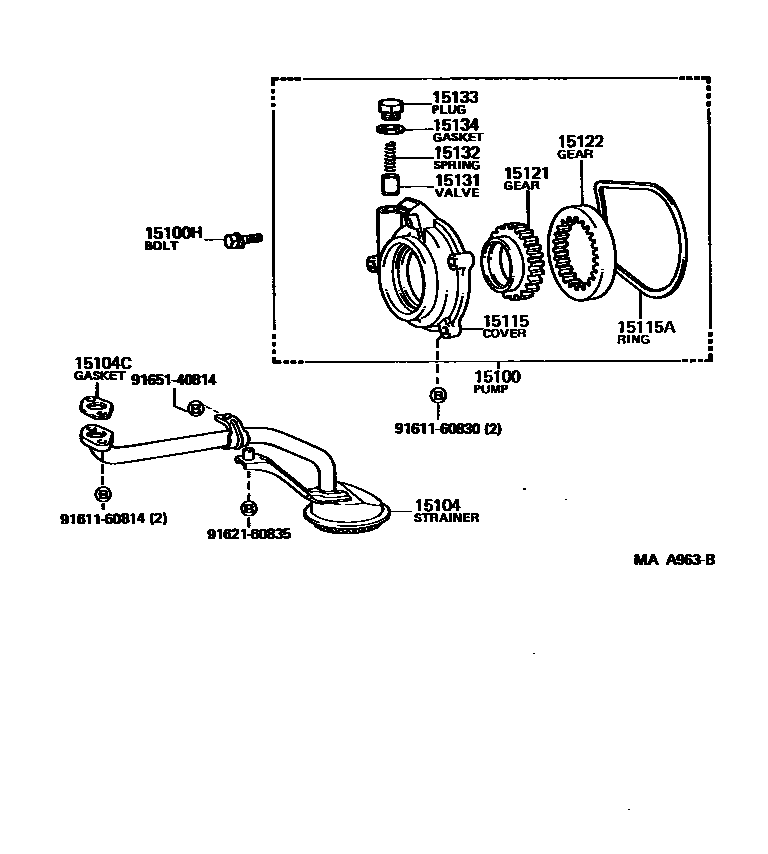

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-35020i22RE..RN10#,110,13#198808-199511

main15100-65020i3VZE..VZN10#,110,13#198808-199511

15100HBOLT, SEAL

main15189-38020i22RE..RN10#,110,13#198808-199511

15104STRAINER SUB-ASSY, OIL

main15104-35010i22RE..RN10#,110,13#198808-199511

main15104-65010i3VZE..VZN10#,110,13#198808-199511

15104CGASKET(FOR OIL STRAINER)

main15147-38020i22RE..RN10#,110,13#198808-199511

main15147-62020i3VZE..VZN10#,110,13#198808-199511

15115COVER, OIL PUMP

main15115-35020i22RE..RN10#,110,13#198808-199511

main15115-65020i3VZE..VZN10#,110,13#198808-199511

15115ARING, O(FOR OIL PUMP COVER)

main15188-38030i22RE..RN10#,110,13#198808-199511

15121GEAR, OIL PUMP DRIVE

main15121-38020i22RE..RN10#,110,13#198808-199511

15122GEAR, OIL PUMP DRIVEN

main15122-38020i22RE..RN10#,110,13#198808-199511

15131VALVE, OIL PUMP RELIEF

main15131-24010i3VZE..VZN10#,110,13#198808-199511

main15131-38030i22RE..RN10#,110,13#198808-199511

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46010i22RE..RN10#,110,13#198808-199511

main15132-65020i3VZE..VZN10#,110,13#198808-199511

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i22RE..RN10#,110,13#198808-199511

main15133-24010i3VZE..VZN10#,110,13#198808-199511

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i22RE..RN10#,110,13#198808-199511

9161160814

main91611-60814

9161160830

main91611-60830

9162160835

main91621-60835

9165140814

main91651-40814

16 parts on this diagram · 2 diagrams in section
