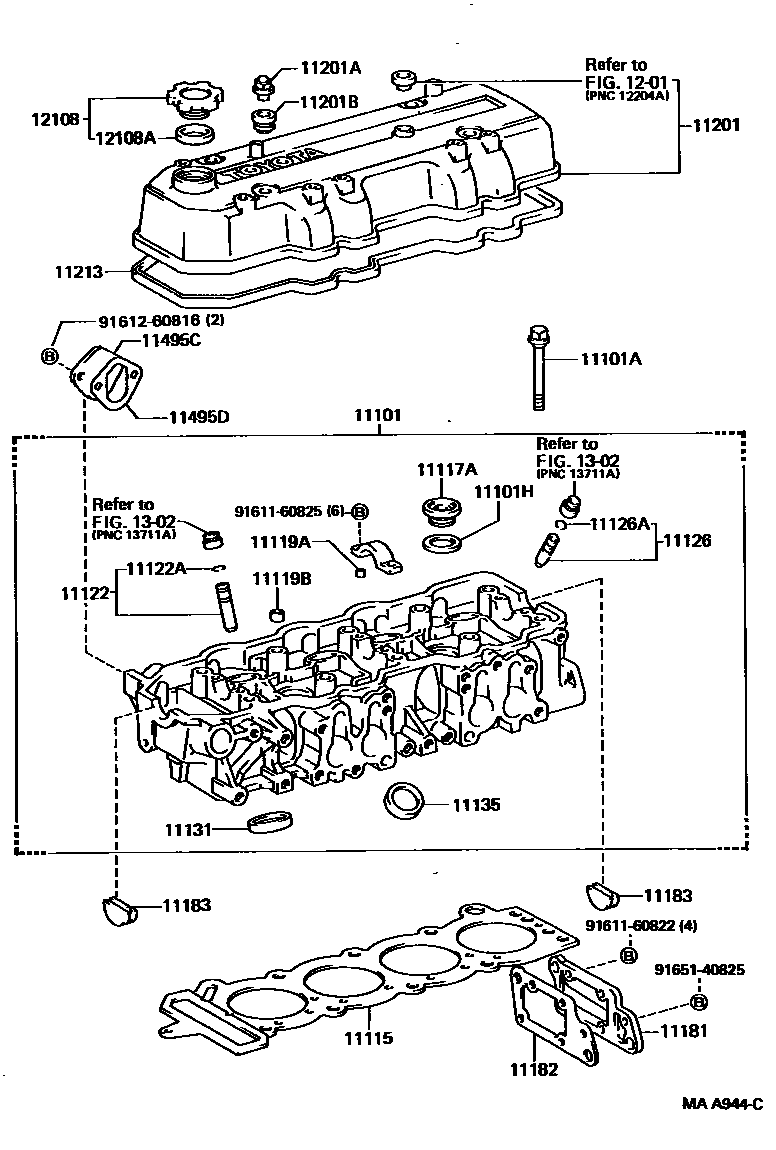

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-35060i22RE..RN10#,110,13#198808-199511

sub11101-35080

main11101-65010i3VZE..VZN10#,110,13#198808-199205

RH

main11101-65011i3VZE..VZN10#,110,13#199205-199511

RH

main11102-65010i3VZE..VZN10#,110,13#198808-199108

LH

main11102-65020i3VZE..VZN10#,110,13#199108-199205

LH

main11102-65021i3VZE..VZN10#,110,13#199205-199511

LH

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12092×10i22RE..RN10#,110,13#198808-199511

main90910-02075×16i3VZE..VZN10#,110,13#198808-199511

11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-33133i22RE..RN10#,110,13#198808-199511

11115GASKET, CYLINDER HEAD

main11115-35060i22RE..RN10#,110,13#198808-199511

main11115-65020i3VZE..VZN10#,110,13#198808-199001

sub90119-10653

main11115-65030i3VZE..VZN10#,110,13#199001-199403

main11115-65031i3VZE..VZN100,110,13#199403-199511

sub11115-65032

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-32070i22RE..RN10#,110,13#198808-199511

11119PLUG, CYLINDER HEAD HARNESS HOLE

main11119-65010i3VZE..VZN10#,110,13#198808-199511

11119APIN, STRAIGHT, NO.1

main90253-11021×6i22RE..RN10#,110,13#198808-199511

L=8,OD=11

11119BPIN, STRAIGHT, NO.2

main90253-16020×5i22RE..RN10#,110,13#198808-199511

L=16,OD=15.5

11122BUSH, INTAKE VALVE GUIDE

main11122-35020×4i22RE..RN10#,110,13#198808-199511

STD

main11122-65020×6i3VZE..VZN10#,110,13#198808-199511

STD

main11123-35020×4i22RE..RN10#,110,13#198808-199511

O/S 0.05

main11123-65020×6i3VZE..VZN10#,110,13#198808-199511

O/S 0.05

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-12049×4i22RE..RN10#,110,13#198808-199511

11126BUSH, EXHAUST VALVE GUIDE

main11122-38021×4i22RE..RN10#,110,13#198808-199511

STD

main11122-65020×6i3VZE..VZN10#,110,13#198808-199511

STD

main11123-38021×4i22RE..RN10#,110,13#198808-199511

O/S 0.05

main11123-65020×6i3VZE..VZN10#,110,13#198808-199511

O/S 0.05

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-12049×4i22RE..RN10#,110,13#198808-199511

11131SEAT, INTAKE VALVE

main11131-35010×4i22RE..RN10#,110198808-198904

STD

main11131-35011×4i22RE..RN10#,110,13#198904-199511

STD

main11131-65010×6i3VZE..VZN10#,110,13#198808-199511

STD

main11132-35010×4i22RE..RN10#,110198808-198904

O/S 0.03

main11132-35011×4i22RE..RN10#,110,13#198904-199511

O/S 0.03

main11132-65010×6i3VZE..VZN10#,110,13#198808-199511

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-35010×4i22RE..RN10#,110,13#198808-199511

STD

sub11135-35020

main11135-65010×6i3VZE..VZN10#,110,13#198808-199211

STD

main11135-65011×6i3VZE..VZN100,110,13#199211-199511

STD

main11136-35010×4i22RE..RN10#,110,13#198808-199511

O/S 0.03

sub11136-35020

main11136-65010×6i3VZE..VZN10#,110,13#198808-199211

O/S 0.03

main11136-65011×6i3VZE..VZN100,110,13#199211-199511

O/S 0.03

11181PLATE, CYLINDER HEAD, REAR

main11181-35050i22RE..RN10#,110,13#198808-199511

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-35050i22RE..RN10#,110,13#198808-199511

11183PLUG, SEMICIRCULAR

main11183-38010×2i22RE..RN10#,110,13#198808-199511

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-35031i22RE..RN10#,110,13#198808-199208

main11201-35032i22RE..RN10#,110,13#199208-199511

main11201-65010i3VZE..VZN10#,110,13#198808-199004

NO.1

main11201-65020i3VZE..VZN10#,110,13#199004-199108

NO.1

main11201-65030i3VZE..VZN10#,110,13#199108-199511

NO.1

main11202-65030i3VZE..VZN10#,110,13#198808-199004

NO.2

main11202-65040i3VZE..VZN10#,110,13#199004-199108

NO.2

main11202-65050i3VZE..VZN10#,110,13#199108-199511

NO.2

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08041×4i22RE..RN10#,110,13#198808-199511

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-08026×4i22RE..RN10#,110,13#198808-199309

main90210-08040×4i22RE..RN10#,110,13#199309-199511

11213GASKET, CYLINDER HEAD COVER

main11213-35010i22RE..RN10#,110,13#198808-199511

main11213-65010i3VZE..VZN10#,110,13#198808-199511

11495CPLUG, PLATE(FOR CYLINDER HEAD)

main11495-40010i22RE..RN10#,110,13#198808-199511

11495DGASKET(FOR CYLINDER HEAD)

main11496-35010i22RE..RN10#,110,13#198808-199511

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i22RE..RN101..5F;22RE..RN106,110,13#198808-199003

sub12180-55010

main12180-15010i22RE..RN10#,110,13#199208-199309

main12180-15011i22RE..RN10#,110,13#199309-199511

main12180-65010i3VZE..VZN10#,110,13#198808-199107

main12180-65011i22RE..RN130199401-199511

BRAZIL SPEC

main12180-65020i3VZE..VZN100,110,13#199208-199309

main12180-65021i3VZE..VZN100,110,13#199309-199511

12108AGASKET(FOR OIL FILLER CAP)

main90430-37004i3VZE..VZN10#,110,13#198808-199511

main90430-37140i22RE..RN101..5F;22RE..RN106,110,13#198808-199003

1302

9161160822

main91611-60822

9161160825

main91611-60825

9161260816

main91612-60816

9165140825

main91651-40825

31 parts on this diagram · 2 diagrams in section
