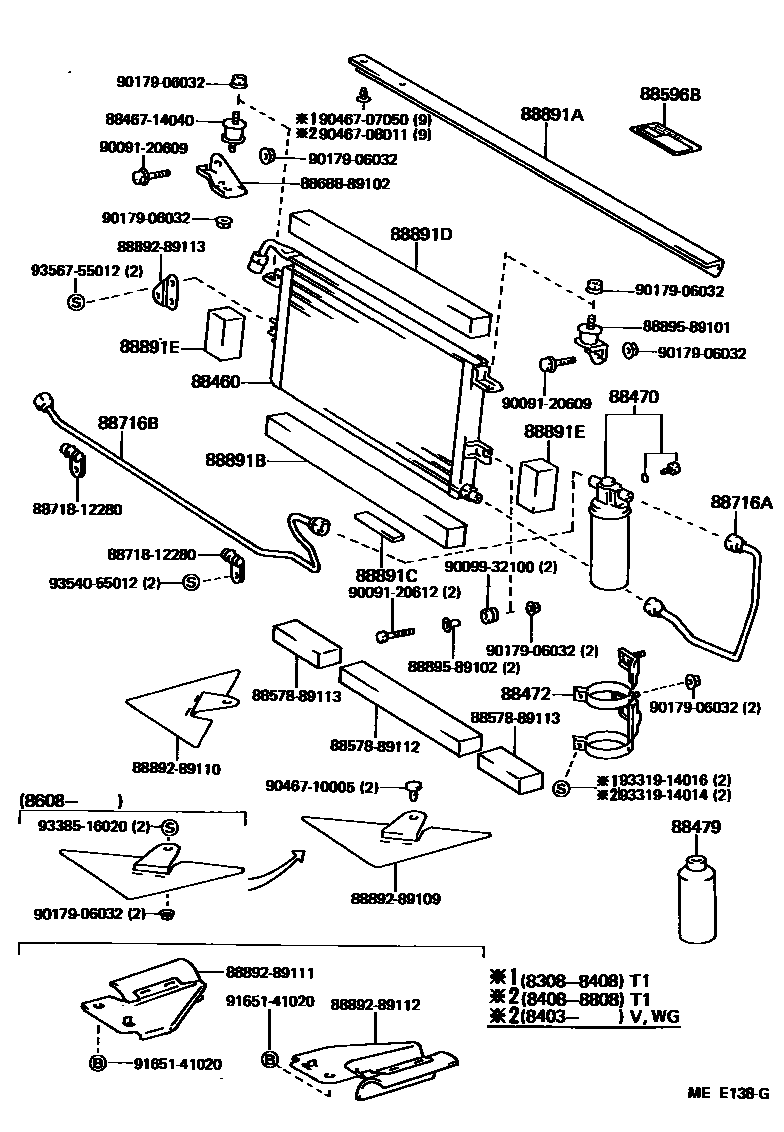

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88460CONDENSER ASSY, COOLER

main88460-89109iLN56,6#,RN5#,6#,7#,VZN6#..T1¥34,500198308-198808

main88460-89110iRN60,61,VZN61..V,WG¥49,100198403-198903

sub88460-89111¥49,100

main88460-89111iRN61,VZN61..(V,WG)..USA¥49,100198508-198903

US TERRITORY SPEC

main88460-89112iRN55,75..HVY..USA¥34,500198501-198608

US TERRITORY SPEC

sub88460-89113¥34,500

main88460-89113iRN55,75..HVY..USA¥34,500198608-198808

US TERRITORY SPEC

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iLN56,6#,RN5#,6#,7#,VZN6#¥7,200198308-198903

sub04884-33110¥5,200

main88470-89101iRN55..W..HVY..USA¥8,700198501-198903

US TERRITORY SPEC

88472BRACKET, RECEIVER TANK, NO.1

main88472-89109iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

400G

sub90986-02004

sub90986-02005

88596BPLATE, CAUTION, NO.1

main88596-12010iLN56,6#,RN5#,6#,7#198408-198608

sub88723-12010

main88723-12010iLN56,66,RN5#,6#,7#,VZN6#198608-198903

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-89132iLN56,6#,RN5#,6#,7#,VZN6#..T1¥3,090198308-198808

main88716-89138iRN60,61,VZN61..V,WG¥2,860198403-198903

main88716-89152iRN5#,70..G..USA..CBU¥3,960198608-198808

US TERRITORY SPEC

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-89133iLN56,65,RN5#,6#..T1¥4,950198308-198708

main88716-89139iRN60..V,WG¥4,920198403-198903

sub88710-89101¥5,500

main88716-89147iRN50..(4F,4FC)..USA;RN55,60..T1..USA..CBU;LN56,65,RN50,65..(DLX,SR5)..USA..CBU¥4,920198501-198608

US TERRITORY SPEC

main88716-89151iRN5#,70..G..USA..CBU¥6,200198605-198808

US TERRITORY SPEC

main88716-89151iRN55,75..4HC..IV¥6,200198605-198708

88891APACKING A (FOR COOLER)

main53381-89103iLN56,6#,RN5#,6#,7#,VZN6#¥3,180198308-198903

88891BPACKING B (FOR COOLER)

main88578-89101iLN56..DSL198308-198608

main88578-89108iRN60..V,WG198403-198903

main88578-89109iRN55..W..HVY..USA¥1,290198501-198903

US TERRITORY SPEC

main88578-89115iVZN61..(V,WG)..USA198711-198903

US TERRITORY SPEC

main88578-89116iVZN6#198711-198903

88891CPACKING C (FOR COOLER)

main88578-89107iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

88891DPACKING D (FOR COOLER)

main88578-89101iRN5#,6#,7#198308-198903

main88578-89117iVZN6#198711-198903

main88893-89114iLN56,65..DSL198308-198608

88891EPACKING E (FOR COOLER)

main88578-89103iLN56,65,RN5#,7#..CBR,DSL,EFI,TBO198308-198903

main88578-89111iRN55,75..HVY..USA198501-198903

US TERRITORY SPEC

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8857889112PAKING, COOLER AIR DUCT

main88578-89112

8857889113PAKING, COOLER AIR DUCT

main88578-89113

8868889102BRACKET, COOLER DIAPHRAGM

main88688-89102

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8889289109BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89109

8889289110BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89110

8889289111BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89111

8889289112BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89112

8889289113BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89113

8889589101HOLDER, FUSE

main88895-89101

8889589102HOLDER, FUSE

main88895-89102¥0

9009120609

main90091-20609

9009120612

main90091-20612

9009932100

main90099-32100

9017906032

main90179-06032¥120

9046707050

main90467-07050¥170

9046708011

main90467-08011¥100

9046710005

main90467-10005¥90

9165141020

main91651-41020¥90

9331914014

main93319-14014¥260

9331914016

main93319-14016¥190

9338516020

main93385-16020¥130

9354055012

main93540-55012¥60

9356755012

main93567-55012¥120

37 parts on this diagram · 4 diagrams in section
