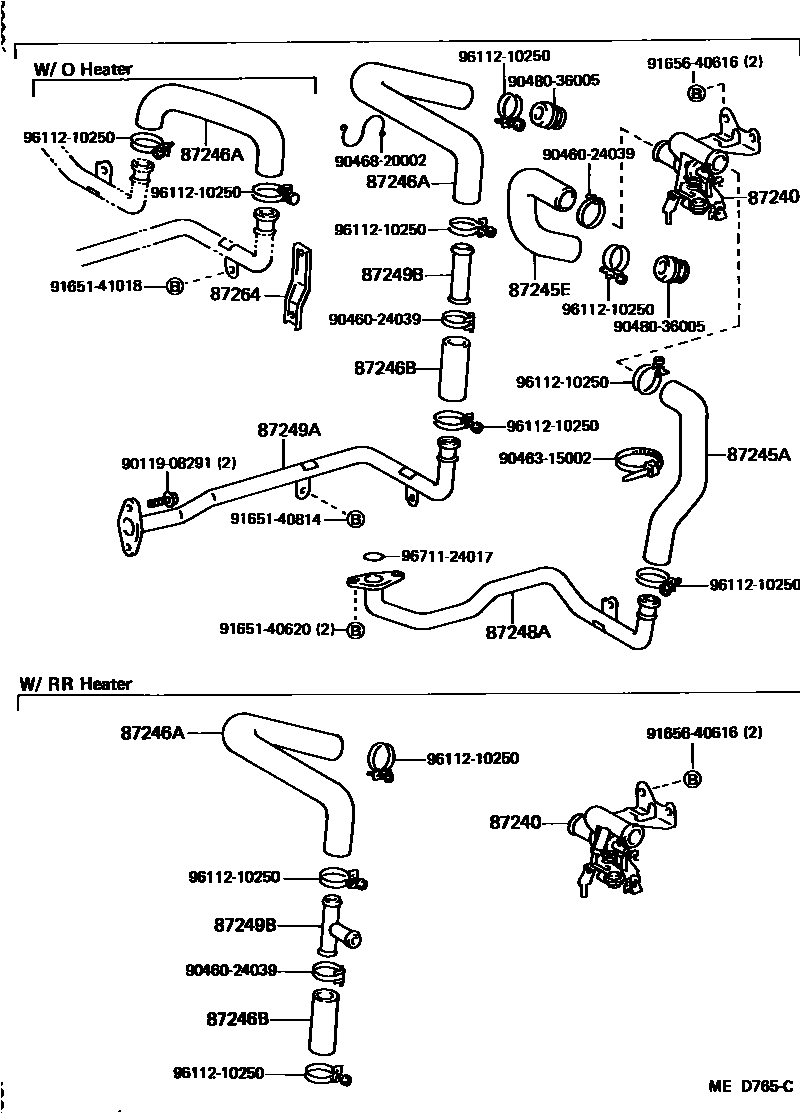

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

87240VALVE ASSY, HEATER WATER

main87240-89116iLN5#,6#198308-198708

main87240-89117iRN61..(V,WG)..USA198308-198903

main87240-89118iRN61..V..USA198403-198903

W/RR HEATER

main87240-89123iVZN6#198711-198903

87245AHOSE, HEATER WATER, INLET A

main87245-89149iLN5#,65..DSL198308-198708

main87245-89156iRN5#,6#198308-198408

sub87245-89181

main87245-89181iRN5#,6#,7#198408-198903

main87245-89206iVZN6#198711-198903

W/O RR HEATER

main87245-89213iVZN61..V,WG198711-198903

W/RR HEATER

87245EHOSE, HEATER WATER, INLET E

main87245-89146iLN5#,6#,RN5#,6#,7#198308-198903

main87245-89207iVZN6#198711-198903

87246AHOSE, HEATER WATER, OUTLET A

main87245-89153iLN5#,65..DSL198308-198708

main87245-89163iRN61..(V,WG)..USA198308-198903

main87245-89177iRN60,61..WG..EFI198403-198708

W/RR HEATER

main87245-89184iRN55..TBO198501-198508

main87245-89188iRN61..SRT..USA198508-198708

W/RR HEATER

main87245-89193iRN55,6#..TBO198508-198708

main87245-89204iVZN6#198711-198903

main87245-89215iRN61..WG198708-198903

W/RR HEATER

main99556-30340iRN5#,6#..T1..USA..CBU198308-198411

*H,L=340,W/O HEATER

sub99556-30500

main99556-30360iRN5#,6#..T1..USA..(CBR,EFI)..CBU198411-198508

*H,L=360,W/O HEATER

sub99556-30500

main99556-30500iRN75..DLX..USA198508-198808

*H,L=360,W/O HEATER

87246BHOSE, HEATER WATER, OUTLET B

main87245-89170iRN60,61..V..CND..EFI198403-198903

W/RR HEATER

sub99556-30300

main87245-89189iRN61..SRT..USA198508-198708

W/RR HEATER

main87245-89205iVZN6#198711-198903

main99556-30050iRN5#,6#..CBR,EFI198308-198508

*H,L=50

sub99556-30100

main99556-30100iRN5#,6#,7#..T1..(CBR,EFI)198508-198903

*H,L=50

87248APIPE, HEATER WATER INLET, A

main87208-14210iRN5#..EFI198308-198408

main87208-14280iRN5#,6#,75..EFI,TBO198408-198903

sub87208-35170

main87208-22130iRN5#,6#,7#..T1..EFI198408-198808

sub87208-35160

main87208-89116iRN5#,6#..CBR198308-198408

main87265-89106iVZN61..V,WG198711-198903

W/RR HEATER

87249APIPE, HEATER WATER OUTLET, A

main87208-89121iRN5#,6#,7#..CBR,EFI198308-198903

sub87208-35130

main87248-89123iRN55,61,66..TBO198501-198808

main87265-89104iVZN6#198711-198903

W/O RR HEATER

main87265-89105iVZN61..V,WG198711-198903

W/RR HEATER

87249BPIPE, HEATER WATER OUTLET, B

main87248-14090iRN5#,6#,7#..T1..(CBR,EFI)198308-198903

main87265-89102iRN60,61..WG198403-198903

W/RR HEATER

87264BRACKET, HEATER WATER HOSE

main87263-14140iRN55..STD..HLF..CND..EFI;RN5#,6#,70..T1..USA..(CBR,EFI)..CBU198308-198808

W/O HEATER

main87263-89108iLN5#,65..DSL198308-198708

9011908291

main90119-08291

9046024039

main90460-24039

9046315002

main90463-15002

9046820002

main90468-20002

9048036005

main90480-36005

9165140620

main91651-40620

9165140814

main91651-40814

9165141018

main91651-41018

9165640616

main91656-40616

9611210250

main96112-10250

9671124017

main96711-24017
