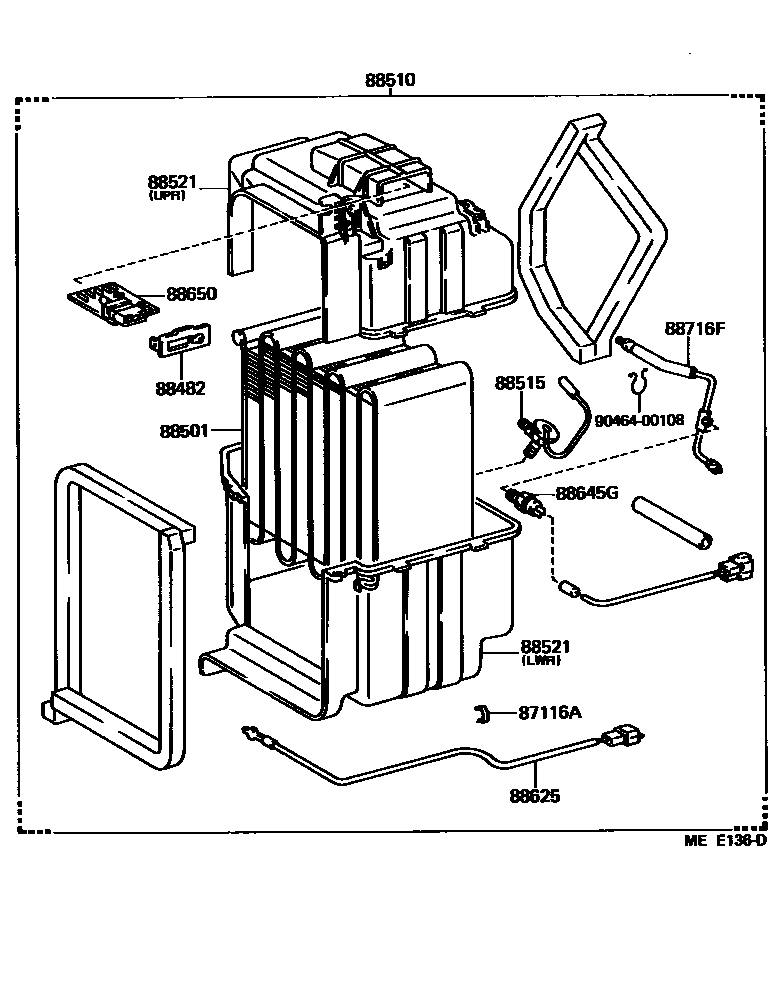

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iLN56,6#,RN5#,6#,7#198308-198903

88482CAP, COOLER

main88482-60010iLN56,6#,RN5#,6#,7#198308-198903

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-89106iLN56,6#,RN5#,6#,7#198308-198601

sub88501-89109

main88501-89109iLN56,66,RN5#,6#,7#,VZN6#198601-198903

88510UNIT ASSY, COOLER

main88510-89115iLN56,65,RN5#,6#198308-198708

main88510-89118iRN5#,6#,70..CBR198408-198608

sub88510-89123

main88510-89129iRN55,6#,75..EFI,TBO198508-198608

main88510-89132iRN5#,6#,70..CBR198608-198808

main88510-89133iRN5#,6#,75..EFI,TBO198608-198903

main88510-89140iVZN6#198711-198903

88515VALVE, COOLER EXPANSION

main88515-16030iLN56,6#,RN5#,6#,7#198308-198708

sub88515-16031

main88515-16031iRN5#,6#,7#,VZN6#198608-198903

88521CASE, COOLER UNIT

main88521-89102iLN56,6#,RN5#,6#,7#198308-198903

UPPER

main88521-89103iLN56,6#,RN5#,6#,7#198308-198903

LOWER

88625THERMISTOR, COOLER, NO.1

main88625-89101iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

88645GSWITCH, PRESSURE

main88645-12020iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14070iRN55,6#,75..EFI,TBO198508-198608

main88650-16010iRN5#,6#,70..CBR198408-198608

main88650-20100iRN5#,6#..EFI,TBO198308-198708

sub88650-14051

main88650-89102iRN5#,6#,70..CBR198608-198808

main88650-89103iRN55,6#,75..EFI,TBO198608-198903

main88650-89104iVZN6#198711-198903

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-89146iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

9046400108

main90464-00108

11 parts on this diagram · 2 diagrams in section
