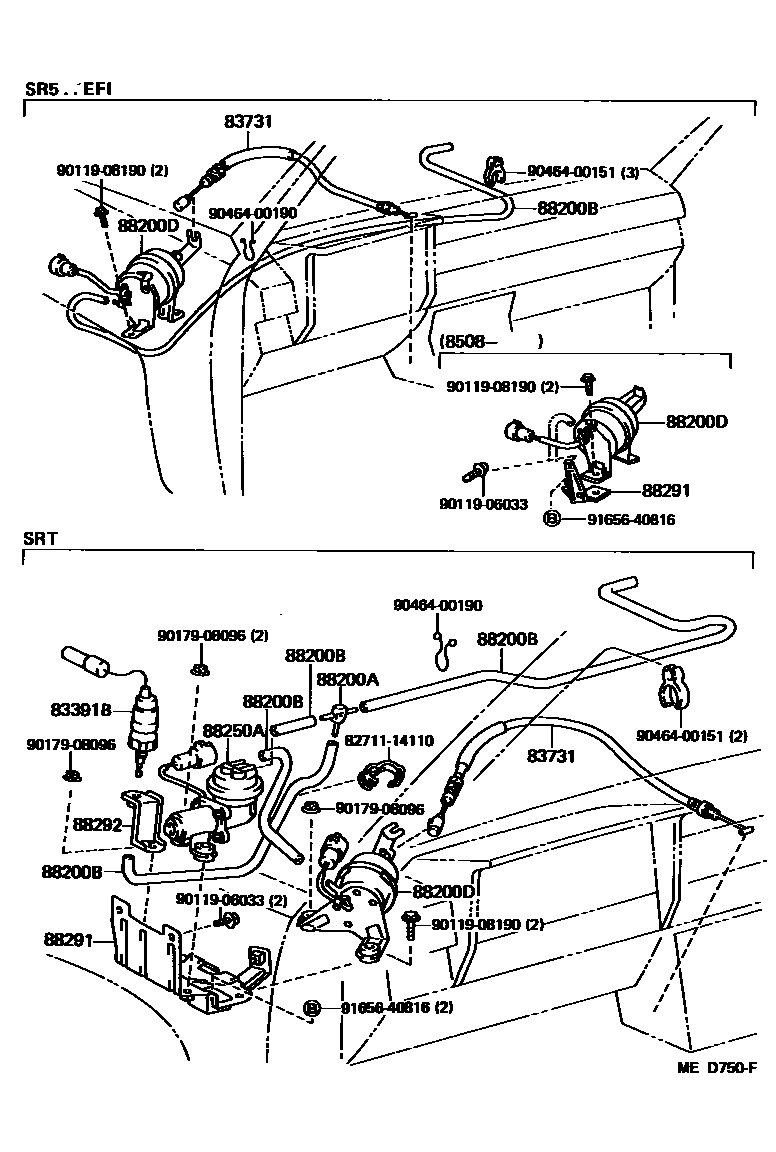

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1 0004 1

83391BSWITCH, AUTO DRIVE VACUUM

main83391-22040iRN55,61,66..SRT198501-198808

83731CABLE, CRUISE CONTROL

main83731-35010iLN56,65198308-198508

main83731-35030iRN55..TBO198501-198508

main83731-35031iRN55,6#..SRT198508-198608

main83731-35051iRN55,6#..SR5198508-198608

main83731-35080iRN55,6#..SRT198608-198708

main83731-35090iRN55,6#..SR5198608-198708

main83731-35110iRN55,6#,VZN6#..SR5198708-198903

main83731-35140iRN55..TBO198708-198808

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90413-04005iLN56..IV198308-198408

CALIFORNIA SPEC

main90413-04005iLN56,65..TD198408-198608

88200BHOSE, CRUISE CONTROL VACUUM

main88283-35010iRN55,6#..SRT198608-198808

main90445-08169iRN55,6#..SR5198508-198608

L=1050

sub90999-92006

main90445-08179iLN56,65..TD198408-198508

L=300(*H,L=30)

sub95411-10130

main90445-08205iRN5#,6#..SR5..EFI198308-198501

L=1150

sub90445-08207

main90445-08209iLN56..IV198308-198408

L=1500,CALIFARNIA SPEC

sub90445-08218

main90445-08215iRN5#,6#..SR5198501-198508

L=1070

sub90445-08207

main90445-08218iLN56,65..DSL198308-198508

L=1650

sub90999-92007

main90447-04055iRN55,61,66..SRT198501-198808

L=230

main90447-04099iRN55,6#..SR5198608-198903

L=1050

main90447-04113iVZN6#..SR5198711-198903

L=1270

main90999-92002iRN55..TBO198803-198808

L=1450(*H,L=140)

main95411-19930iRN55,61,66..SRT198501-198608

*H,L=60,MARK=#*

sub90999-92002

main95411-19930iRN55,61,66..SRT198501-198803

*H,L=140,MARK=#*

sub90999-92002

main95411-19930iLN56..IV198308-198408

*H,L=100,MARK=#*,CALIFARNIA SPEC

sub90999-92002

main95411-19995iLN56,65..TD198408-198508

*H,L=800,MARK=#*

sub90999-92004

main95411-19995iRN55,61,66..SRT198501-198608

*H,L=950,MARK=#*

sub90999-92004

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-35030iRN5#..EFI198308-198508

sub88200-35031

main88200-35050iRN5#,6#..SR5198408-198508

sub88200-35051

main88200-35060iRN55..TBO198501-198508

sub88200-35220

main88200-35061iRN55,6#..SRT198508-198608

sub88200-35062

main88200-35071iRN55,6#..SR5198508-198608

sub88200-35072

main88200-35090iRN55,6#..SR5198608-198708

sub88200-35091

main88200-35100iRN55,6#..SRT198608-198708

sub88200-35101

main88200-35120iRN55,6#,VZN6#..SR5198708-198902

sub88200-35121

main88200-35121iRN61,VZN61..SR5198902-198903

main88200-35150iRN55..TBO198708-198808

sub88200-35151

88250APUMP ASSY, CRUISE CONTROL

main88250-35010iRN55,61,66..SRT198501-198608

main88250-35020iRN55,6#..SRT198608-198808

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-35010iRN55,61,66..SRT198501-198808

main88291-35020iRN55,6#,VZN6#..SR5198508-198903

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-35010iRN55,61,66..SRT198501-198808

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9011906033

main90119-06033

9011908190

main90119-08190

9017908096

main90179-08096

9046400151

main90464-00151

9046400190

main90464-00190

9165640816

main91656-40816

15 parts on this diagram · 4 diagrams in section
