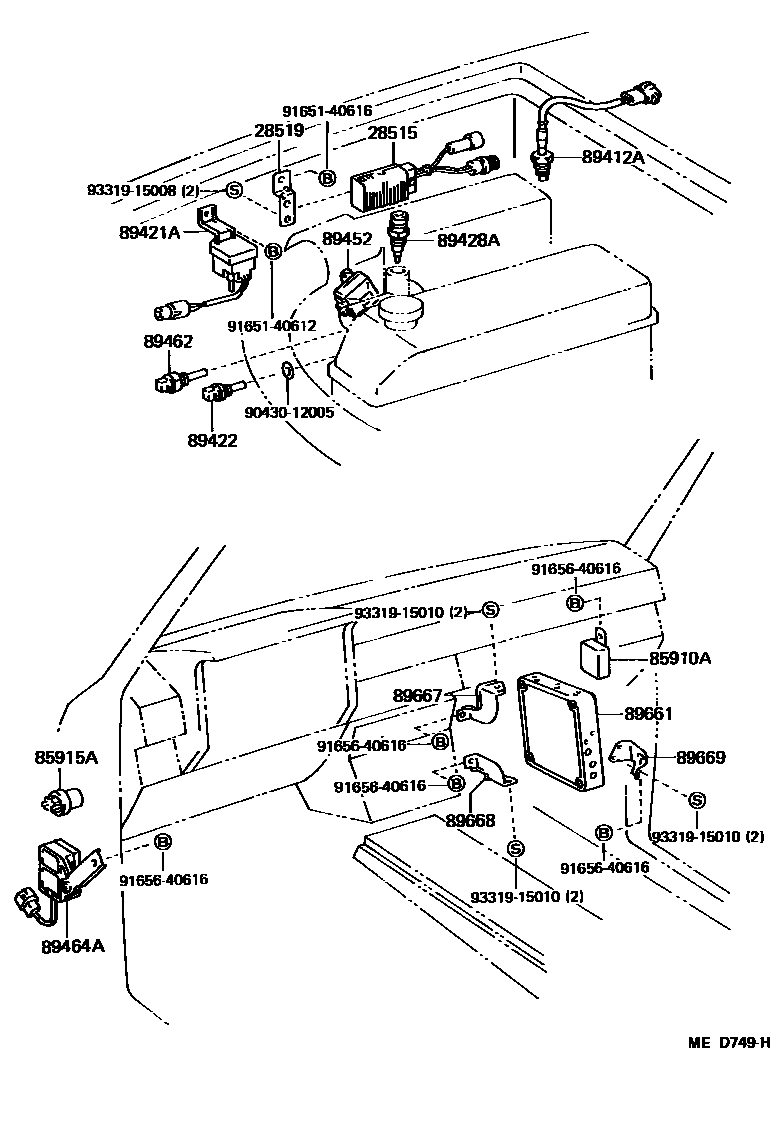

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-26020i22REC..RN5#198308-198401

sub28515-35010

main28515-26030i22REC,22RTEC..RN5#,6#,75198408-198808

main28515-35010i22REC..RN5#198401-198408

main28515-70010i3VZE..VZN6#198711-198808

28519BRACKET, SOLENOID RESISTOR

main28519-35010i22REC..RN5#198308-198408

main28519-35020i22REC,22RTEC..RN5#,6#,75198408-198808

main28519-35040i3VZE..VZN6#198711-198808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-14020iRN5#,6#,7#,VZN6#..EFI,TBO198308-198903

85915ARELAY, MAIN

main90987-02004iRN5#,6#,7#,VZN6#..EFI,TBO198308-198903

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iRN55,75..HVY198708-198903

CALIFORNIA SPEC

89421ASENSOR, TURBO PRESSURE

main89420-35020iRN61..SRT198608-198708

main89421-35010iRN61..SRT198508-198608

sub89420-35020

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRN61,VZN61198808-198903

main89422-30020iRN5#,6#,7#,VZN6#..EFI,TBO198308-198808

sub89422-12010

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-14070iVZN6#198711-198903

main89428-28030iRN6#..EFI,TBO198408-198708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22010iRN5#..EFI198308-198408

main89452-28010iRN5#,6#..EFI,TBO198408-198508

sub89452-28040

main89452-28030iRN55,6#,75..EFI,TBO198508-198903

sub89452-20050

89462SWITCH, START INJECTOR TIME

main89462-20010iRN5#,6#,7#,VZN6#..EFI198708-198808

main89462-20040iRN61,VZN61198808-198903

main89462-30011iRN5#,6#,75..EFI,TBO198308-198808

89464ASENSOR, ALTITUDE COMPENSATION

main89464-35010iRN55,75..HVY198508-198708

main89464-35020iRN55,75..ATM..HVY198708-198808

89661COMPUTER, ENGINE CONTROL

main89561-14172iRN5#..5F..EFI198308-198408

main89561-14182iRN55..4FC..EFI198308-198408

main89661-35010iRN5#..EFI198408-198508

main89661-35020iRN6#..EFI198408-198508

main89661-35030iRN55..TBO198501-198508

main89661-35040iRN55,75..HVY198508-198708

main89661-35050iRN6#..TBO198508-198708

main89661-35060iRN55..(10T,HLF)..EFI198508-198708

main89661-35070iRN6#..EFI198508-198708

main89661-35080iRN55..TBO198508-198808

main89661-35110iRN61..V,WG198708-198808

main89661-35120iVZN6#198711-198808

sub89661-35121

main89661-35130iRN55,6#,70..HLF..EFI..IV198708-198808

CALIFORNIA SPEC

main89661-35140iRN55,75..HVY198708-198808

main89661-35260iRN61198808-198903

main89661-35270iRN61..USA198808-198903

CALIFORNIA SPEC

main89661-35280iVZN61198808-198812

sub89661-35281

main89661-35281iVZN61198812-198903

89667BRACKET, ENGINE CONTROL COMPUTER

main89567-35010iRN5#,6#..EFI198308-198410

main89567-35011iRN5#,6#..EFI,TBO198410-198507

sub89567-35012

main89567-35012iRN55,6#,7#,VZN6#..EFI,TBO198507-198903

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89568-35010iRN5#,6#..EFI,TBO198308-198507

sub89568-35011

main89568-35011iRN55,6#,7#..EFI,TBO198507-198903

main89668-35020iVZN6#198711-198903

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89569-35010iRN55,6#,7#,VZN6#..EFI,TBO198308-198903

9043012005

main90430-12005

9165140612

main91651-40612

9165140616

main91651-40616

9165640616

main91656-40616

9331915008

main93319-15008

9331915010

main93319-15010

21 parts on this diagram · 2 diagrams in section
