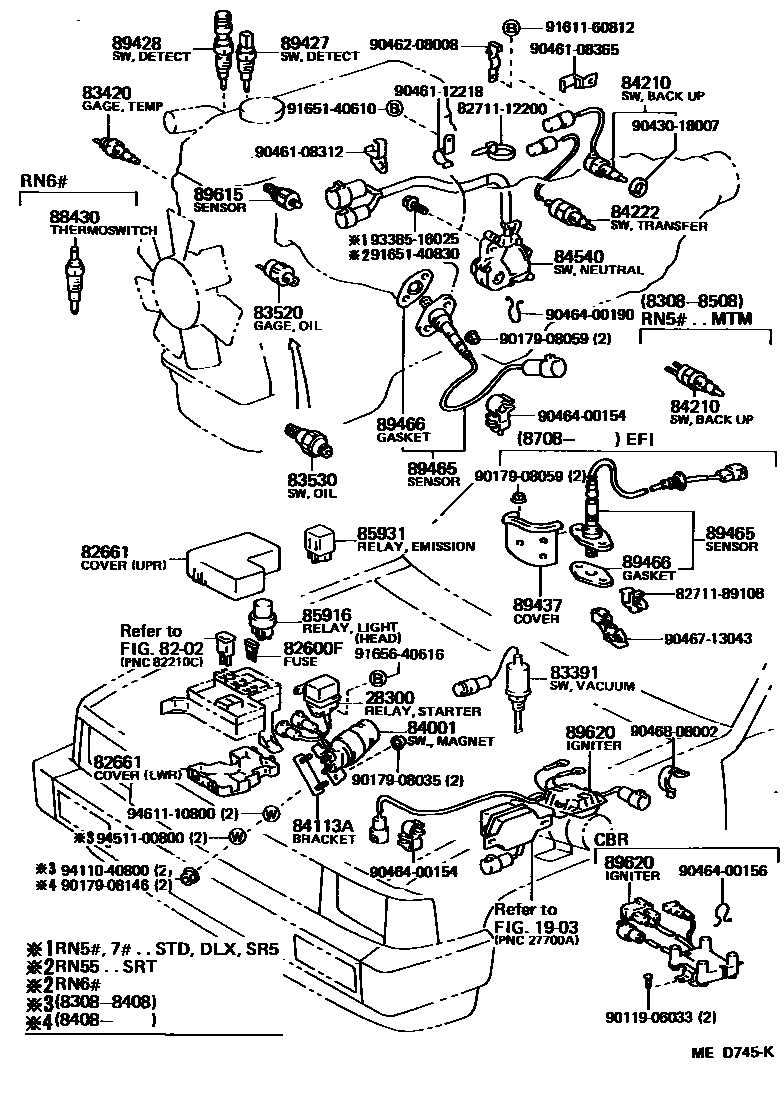

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1903

28300RELAY ASSY, STARTER

main28300-35010i22R#,3VZE..RN5#,6#,7#,VZN6#..MTM198508-198903

main28300-54070i2L#..LN5#,6#198308-198708

8202

82600FFUSE, FUSE BLOCK

main90982-09002×6iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

10A,10A

main90982-09003×13iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

15A,15A

main90982-09004iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

20A,YELLOW,20A

main90982-09005×7iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

7.5A,7.5A

82661COVER, RELAY BLOCK, NO.1

main82661-89101iLN5#,65,RN5#,6#198308-198508

COWL SIDE

main82661-89102iLN5#,65,RN5#,6#198308-198408

ENGINE ROOM UPR

main82661-89103iLN5#,6#,RN5#,6#,7#198308-198608

ENGINE ROOM LWR

main82661-89104iLN5#,6#,RN5#,6#,7#198408-198608

ENGINE ROOM UPR

main82661-89105iRN5#,6#,7#..T1198508-198608

COWL SIDE

main82661-89106iRN61..V,WG198508-198608

COWL SIDE

main82661-89108iRN55,6#,75,VZN6#..EFI,TBO198608-198903

ENGINE ROOM LWR

main82661-89109iRN5#,70..MTM..USA..CBR198608-198708

UPR,W/ALTERNATOR=12V 55A

main82661-89110iLN56,66198608-198708

ENGINE ROOM UPR

main82661-89115iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

COWL SIDE

main82661-89116iRN61,VZN61..V,WG198608-198903

COWL SIDE

83391SWITCH, VACUUM

main83391-12150iRN70..W..IV;RN70..4HC..USA;RN5#..USA..CBR;RN70..5F..STD..USA198608-198708

EMISSION CONTROL,MARK=80FM

main83391-16040iRN6#,70..CBR..IV198408-198608

EMISSION CONTROL,MARK=85M

main83391-22060iLN6#198408-198708

FUEL HEATER

sub83391-35040

main83391-27050iRN70..W..IV;RN70..4HC..USA;RN5#..USA..CBR;RN70..5F..STD..USA198608-198708

EMISSION CONTROL,MARK=400FB

main83391-35020iRN5#,6#,70..CBR198308-198608

EMISSION CONTROL,MARK=400B

main83391-36010iLN5#,65198308-198408

FUEL HEATER

main83391-60010iRN5#,6#,70..CBR198608-198708

EMISSION CONTROL,MARK=400B

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iRN5#,6#..SDT,SR5,SRT198308-198705

DENSO

main83520-14023iRN55,6#,VZN6#..SR5,SRT198705-198903

DENSO

sub83520-35030

main83520-55011iVZN6#..(DLX,STD)..USA198711-198903

YAZAKI,W/TACHOMETER

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRN5#,6#..DLX,STD198308-198502

main83530-14030iRN5#,6#,7#,VZN6#..DLX,STD198502-198903

sub83530-28030

main83530-30060iLN5#,6#198502-198708

sub83530-60030

main83530-36011iLN5#,65198308-198502

84001SWITCH ASSY, MAGNET

main38630-35010iLN65,RN6#..DLX,SR5198308-198408

84113ABRACKET, SWITCH, NO.1

main38631-35010iLN65,RN6#..DLX,SR5198308-198408

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iRN5#..MTM198308-198408

main84210-26020iRN50..5F..CBR;RN55..XTR..W..USA..CBR..CBU198408-198508

main84210-35030iVZN6#..R198711-198903

main84210-60021iLN5#,6#,RN6#..MTM..(DLX,SR5,STD)198308-198903

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35020iLN6#,RN6#..5F198308-198903

main84222-35040iVZN6#..R198711-198808

main84222-35060iVZN61..R198808-198903

84540SWITCH ASSY, NEUTRAL START

main84540-35010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main84540-35030iRN55..4FC..TBO198501-198608

sub84540-35031

main84540-35040iVZN6#..4FC198711-198903

sub84540-50010

85916RELAY, LIGHT CONTROL

main90987-01003iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

TAIL LAMP RELAY

main90987-02006iLN56,66,RN5#,6#,7#,VZN6#198608-198903

HEADLAMP RELAY

main90987-04002iLN5#,6#,RN5#,6#,7#198308-198608

HEADLAMP RELAY

85931RELAY, EMISSION CONTROL

main85931-35010iRN5#,6#,70..CBR198308-198808

88430THERMOSWITCH ASSY, AIR CONDITIONER

main83430-10010iRN6#198308-198408

main83430-96440iRN55..W..10T198408-198808

TOWING PACKAGE

sub89428-60040

89427SWITCH, TEMPERATURE DETECT

main89427-14040iRN55,6#..CBR..IV198308-198408

main89427-35010iRN70..USA..CBU198601-198608

CALIFORNIA SPEC

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iRN5#,6#,70..CBR198308-198808

main89428-35030iLN6#198408-198708

89437COVER, SENSOR

main89437-28020iRN6#,VZN6#198708-198903

89465SENSOR, OXYGEN

main89465-19055iRN6#,70..CBR..IV198408-198708

CALIFORNIA SPEC

sub89465-19265

main89465-29045iRN60..WG;RN55,6#..CBR..IV198308-198408

main89465-29075iRN55,61,66..TBO198501-198808

sub89465-29076

main89465-39165iRN5#,7#..EFI198708-198808

main89465-39175iRN6#,VZN6#198708-198808

main89465-39305iRN61..WG198808-198903

main89465-39315iVZN61..DLX198808-198903

main89465-39325iRN61..WG198808-198903

CALIFORNIA SPEC

89466GASKET, OXYGEN SENSOR

main89466-20020iRN61,VZN61198810

main89466-30010iRN60..WG;RN55,6#..CBR..IV198308-198408

89615SENSOR, KNOCK CONTROL

main89615-20020iVZN6#198711-198903

sub89615-20010

main89615-35020iRN55..TBO198708-198808

main89615-35040iRN5#,6#,7#..EFI198708-198903

89620IGNITER ASSY

main89620-12270iVZN6#198711-198903

main89620-35140iRN5#,6#,70..CBR198308-198808

main89620-35150iRN5#..EFI198308-198408

sub89620-35H94

main89620-35160iRN5#,6#,75..EFI,TBO198408-198903

MARK=53

main89620-35170iRN5#,6#,75..EFI,TBO198408-198903

MARK=65

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271189108WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89108

9011906033

main90119-06033

9017908035

main90179-08035

9017908059

main90179-08059

9017908146

main90179-08146

9043018007

main90430-18007

9046108312

main90461-08312

9046108365

main90461-08365

9046112218

main90461-12218

9046208008

main90462-08008

9046400154

main90464-00154

9046400156

main90464-00156

9046400190

main90464-00190

9046713043

main90467-13043

9046808002

main90468-08002

9161160812

main91611-60812

9165140610

main91651-40610

9165140830

main91651-40830

9165640616

main91656-40616

9338516025

main93385-16025

9411040800

main94110-40800

9451100800

main94511-00800

9461110800

main94611-10800

48 parts on this diagram · 6 diagrams in section
