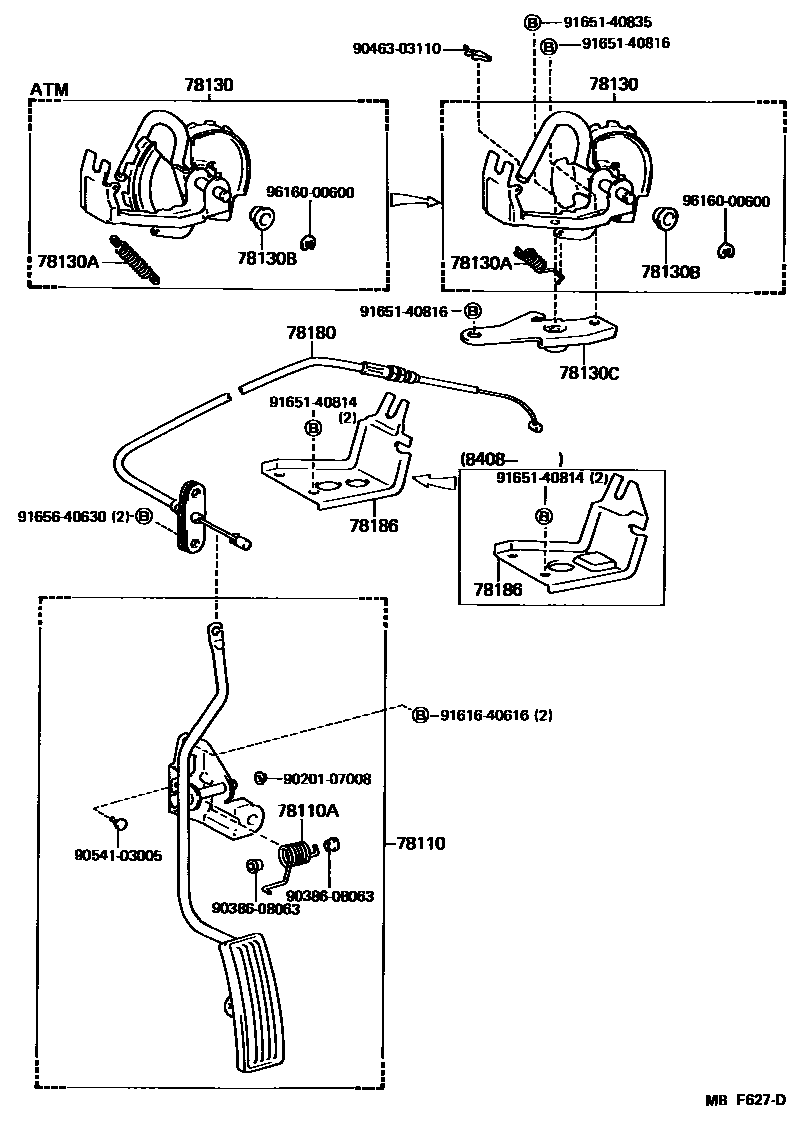

ACCELERATOR LINK

0001 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-89114iRN5#,6#,70..CBR198308-198608

sub78120-89115

main78120-89115iRN5#..EFI198308-198903

main78120-89117iLN5#198308-198708

main78120-89121iRN6#198308-198408

main78120-89123iLN65198308-198408

main78120-89136iVZN6#..R198711-198903

main78120-89137iVZN6#..4FC198711-198903

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26060iLN5#,6#198308-198903

main90508-32019iRN5#,6#,7#198308-198903

sub90959-03026

78130BELLCRANK ASSY, ACCELERATOR

main78160-89101iRN5#,6#,70..MTM..CBR198308-198903

main78160-89102iRN5#,70..ATM..CBR198308-198903

78130ASPRING (FOR ACCELERATOR ROD RETURN)

main90508-14076iRN5#,6#,70..CBR198308-198903

78130BBUSH, ACCELERATOR BELLCRANK

main90386-08063iRN5#,6#,70..CBR198308-198903

78130CBRACKET, ACCELERATOR BELLCRANK

main78166-89101iRN5#,6#,70..CBR198308-198903

78180WIRE ASSY, ACCELERATOR

main78180-89132iRN60..IV;RN60..V,WG;RN5#,65..CBR;RN60..(DLX,STD)..HLF..CBU198308-198404

sub78180-89138

main78180-89133iRN5#,6#,75..EFI,TBO198308-198608

main78180-89134iLN5#,65..DSL198308-198708

main78180-89136iLN56,6#..TD198408-198708

main78180-89138iRN5#,6#,70..CBR198404-198903

main78180-89141iRN55,6#,75..EFI,TBO198608-198808

main78180-89146iVZN6#198711-198903

main78180-89154iRN61198808-198903

sub78180-35050

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-89108iRN5#,6#..CBR198308-198408

main78186-89109iRN5#,6#,70..CBR198408-198903

9020107008

main90201-07008

9038608063

main90386-08063

9046303110

main90463-03110

9054103005

main90541-03005

9161640616

main91616-40616

9165140814

main91651-40814

9165140816

main91651-40816

9165140835

main91651-40835

9165640630

main91656-40630

9616000600

main96160-00600

18 parts on this diagram · 7 diagrams in section
