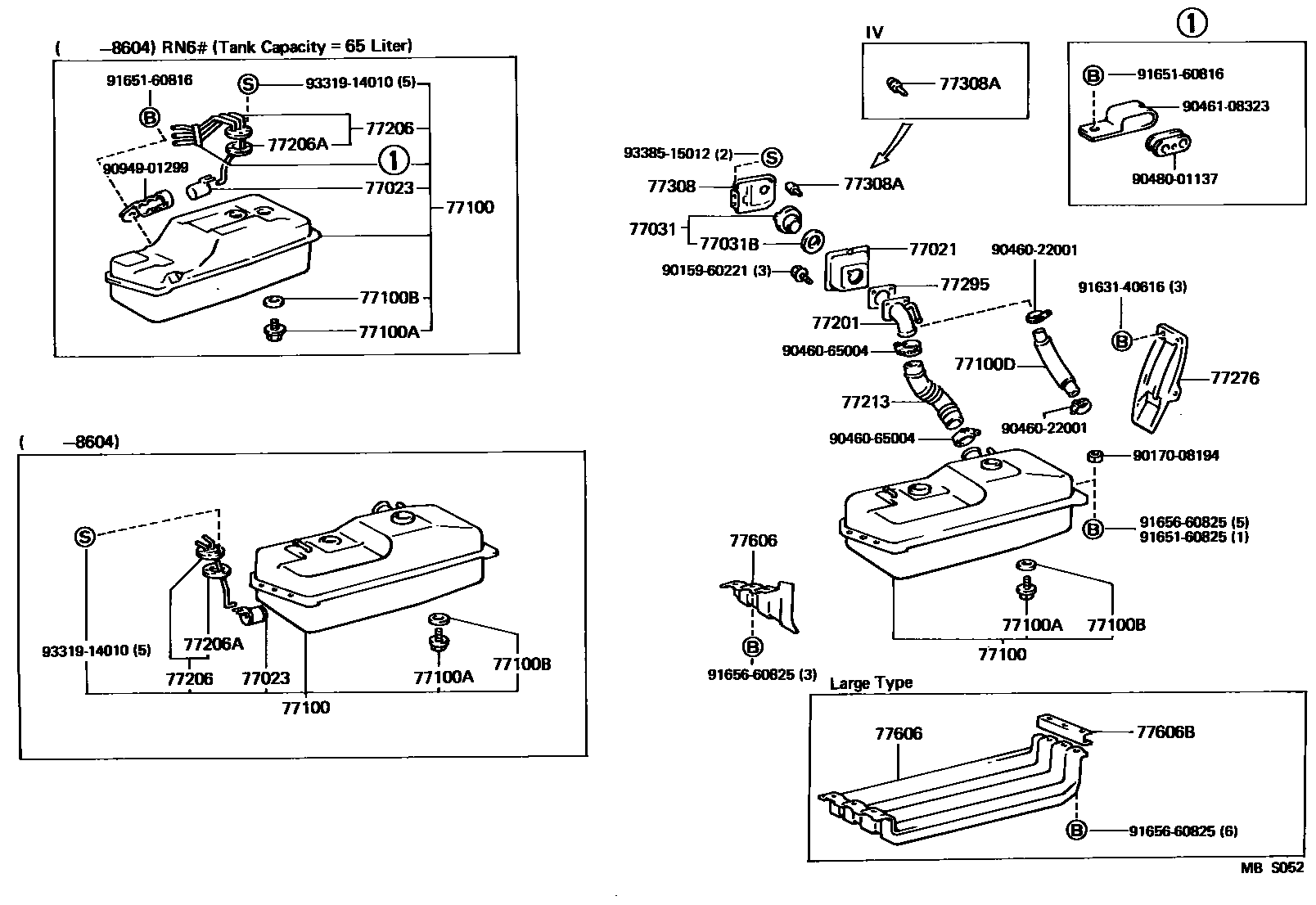

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

77021BOX ASSY, FUEL TANK INLET

main61709-89101iLN5#,RN5#,70..CBU198308-198808

main61709-89102iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

main61725-89107iRN60,61,VZN61..V,WG198403-198903

W/FUEL LID OPENER

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRN5#,6#,70..CBR198308-198808

main77023-22040iLN5#,6#198308-198708

77031CAP ASSY, FUEL TANK

main77310-16010iRN5#,6#,7#198308-198706

sub77310-16011

main77310-16011iRN5#,6#,7#198707-198707

sub77310-12140

main77310-32010iLN5#,6#198308-198708

sub77310-32011

main77310-35070iRN5#,6#,7#198707-198710

sub77310-48010

main77310-35080iRN5#,6#,7#,VZN6#198710-198903

sub77310-12140

77031BGASKET (FOR FUEL TANK CAP)

main77316-16010iLN56,66198308-198903

main77316-32010iLN5#,6#198308-198612

77100TANK ASSY, FUEL

main77001-35925iRN50198604-198608

52LITER

sub77001-35950

main77001-35928iLN56,RN55,70..CBR,DSL198604-198608

65LITER

sub77001-35952

main77001-35929iRN55,75..EFI,TBO198604-198608

65LITER

sub77001-35953

main77001-35933iRN61..CBR198604-198608

65LITER

sub77001-35955

main77001-35934iLN66,RN66..5F..DLX198604-198608

73LITER

sub77001-35956

main77001-35939iRN61..HLF..(EFI,TBO)198604-198608

65LITER

sub77001-35959

main77001-35940iRN66..EFI,TBO198604-198608

73LITER

sub77001-35960

main77001-35941iRN61..V,WG198604-198608

56LITER

main77001-35942iRN61..V,WG198604-198608

65LITER

sub77001-35961

main77001-35950iRN50198608-198808

52LITER

main77001-35952iLN56,RN55,70..CBR,DSL198608-198808

65LITER

main77001-35953iRN55,7#..EFI,TBO198608-198808

65LITER

main77001-35955iRN61..CBR198608-198708

65LITER

sub77001-35969

main77001-35956iLN66,RN66..CBR,TD198608-198708

73LITER

main77001-35959iRN61,VZN61..HLF..(EFI,TBO)198608-198808

65LITER

sub77001-35972

main77001-35960iRN66,VZN66..EFI,TBO198608-198808

73LITER

main77001-35961iRN61,VZN61..V,WG198608-198903

65LITER

main77001-35962iRN50..EFI198708-198808

main77100-35210iRN55..USA..CBR198308-198508

65LITER

sub77100-35211

main77100-35211iRN55,70..USA..CBR198508-198604

65LITER

sub77001-35928

sub77023-12050

sub77203-35350

sub93319-14010

main77100-35220iRN55..USA..(EFI,TBO)198308-198508

65LITER

sub77100-35221

main77100-35221iRN55,75..USA..EFI198508-198604

65LITER

sub77001-35929

main77100-35230iLN56..USA198308-198508

65LITER

sub77100-35231

main77100-35240iRN50..USA..CBR198308-198508

52LITER

sub77100-35241

main77100-35241iRN50..USA198508-198604

52LITER

sub77001-35925

sub77023-12050

sub77203-35330

sub93319-14010

main77100-35250iLN51198308-198508

52LITER

sub77100-35251

main77100-35260iRN50..EFI198308-198508

52LITER

main77100-35310iRN6#..HLF..USA..CBR198308-198508

65LITER

sub77100-35311

main77100-35311iRN61..USA..CBR198508-198604

65LITER

sub77001-35933

sub77023-12050

sub77203-35361

sub90461-08323

sub90480-01137

sub91651-60816

sub93319-14010

main77100-35320iLN65..USA198308-198508

65LITER

sub77100-35321

main77100-35330iRN65..USA..CBR198308-198508

73LITER

sub77100-35331

main77100-35331iRN66..USA..CBR198508-198604

73LITER

main77100-35340iLN65..USA198308-198508

73LITER

sub77100-35341

main77100-35350iRN6#..HLF..CND..CBR198308-198508

COLD SPEC,65LITER

sub77100-35351

main77100-35350iRN6#..HLF..USA..CBR198308-198508

65LITER

sub77100-35351

main77100-35351iRN61..USA..CBR198508-198604

COLD SPEC,65LITER

sub77001-35933

sub77023-12050

sub77203-35361

sub90461-08323

sub90480-01137

sub91651-60816

sub93319-14010

main77100-35351iRN61..USA..CBR198508-198604

65LITER

sub77001-35933

sub77023-12050

sub77203-35361

sub90461-08323

sub90480-01137

sub91651-60816

sub93319-14010

main77100-35360iLN65..CND198308-198508

65LITER

sub77100-35361

main77100-35360iLN65..USA198308-198508

COLD SPEC,65LITER

sub77100-35361

main77100-35370iRN65..CND..CBR198308-198508

73LITER

sub77100-35371

main77100-35370iRN65..USA..CBR198308-198508

COLD SPEC,73LITER

sub77100-35371

main77100-35371iRN66..USA..CBR198508-198604

COLD SPEC,73LITER

sub77001-35934

sub77023-12050

sub77203-35371

sub93319-14010

main77100-35371iRN66..CND..CBR198508-198604

73LITER

sub77001-35934

sub77023-12050

sub77203-35371

sub93319-14010

main77100-35380iLN65..USA198308-198508

73LITER

sub77100-35381

main77100-35380iLN65..CND198308-198508

COLD SPEC,73LITER

sub77100-35381

main77100-35381iLN66198508-198604

73LITER

sub77001-35934

sub77023-22040

sub77203-35251

sub93319-14010

main77100-35390iRN50..USA..CBR198308-198508

52LITER

sub77100-35391

main77100-35390iRN50..CND198308-198508

COLD SPEC,52LITER

sub77100-35391

main77100-35391iRN50..USA198508-198604

COLD SPEC,52LITER

sub77001-35925

sub77023-12050

sub77203-35330

sub93319-14010

main77100-35391iRN50..CND198508-198604

52LITER

sub77001-35925

sub77023-12050

sub77203-35330

sub93319-14010

main77100-35400iRN50..EFI198308-198508

COLD SPEC,52LITER

main77100-35410iLN51198308-198508

COLD SPEC,52LITER

sub77001-35949

sub77023-22040

sub77203-35220

sub93319-14010

main77100-35420iRN55..USA..CBR198308-198508

COLD SPEC,65LITER

sub77100-35421

main77100-35420iRN55..CND..CBR198308-198508

65LITER

sub77100-35421

main77100-35421iRN55,70..USA..CBR198508-198604

65LITER

sub77001-35928

sub77023-12050

sub77203-35350

sub93319-14010

main77100-35421iRN55,70..CND..CBR198508-198604

COLD SPEC,65LITER

sub77001-35928

sub77023-12050

sub77203-35350

sub93319-14010

main77100-35430iRN55..USA..(EFI,TBO)198308-198508

65LITER

sub77100-35431

main77100-35430iRN55..CND..EFI198308-198508

COLD SPEC,65LITER

sub77100-35431

main77100-35431iRN55,75..USA..EFI198508-198604

65LITER

sub77001-35929

sub77023-12050

sub77203-35350

sub93319-14010

main77100-35431iRN55,75..CND..EFI198508-198604

COLD SPEC,65LITER

sub77001-35929

sub77023-12050

sub77203-35350

sub93319-14010

main77100-35440iLN56..CND198308-198508

65LITER

sub77100-35441

main77100-35440iLN56..CND198308-198508

COLD SPEC,65LITER

sub77100-35441

main77100-35441iLN56198508-198604

65LITER

sub77001-35928

sub77023-22040

sub77203-35240

sub93319-14010

main77100-35490iRN60..SR5..CND198403-198408

COLD SPEC,56LITER

sub77001-35947

sub77023-12050

sub77203-35291

sub93319-14010

main77100-35490iRN60..(V,WG)..USA198403-198408

56LITER

sub77001-35947

sub77023-12050

sub77203-35291

sub93319-14010

main77100-35510iRN60..(V,WG)..USA198403-198408

56LITER

sub77100-35490

main77100-35530iRN60..(V,WG)..USA198403-198408

65LITER

sub77001-35948

sub77023-12050

sub77203-35311

sub93319-14010

main77100-35530iRN60..(V,WG)..USA198403-198408

COLD SPEC,65LITER

sub77001-35948

sub77023-12050

sub77203-35311

sub93319-14010

main77100-35550iRN60..(V,WG)..USA198403-198408

65LITER

sub77001-35938

sub77023-12050

sub77203-35311

sub93319-14010

main77100-35570iRN6#..HLF..USA..EFI198408-198508

65LITER

sub77100-35571

main77100-35570iRN65..CND..EFI198408-198508

COLD SPEC,65LITER

sub77100-35571

main77100-35571iRN61..HLF..(EFI,TBO)198508-198604

65LITER

sub77001-35939

main77100-35580iRN6#..HLF..USA..EFI198408-198508

65LITER

sub77100-35581

main77100-35590iRN65..CND..EFI198408-198508

COLD SPEC,73LITER

sub77100-35591

main77100-35590iRN65..USA..EFI198408-198508

73LITER

sub77100-35591

main77100-35591iRN66..EFI,TBO198508-198604

73LITER

sub77001-35940

main77100-35600iRN65..USA..EFI198408-198508

73LITER

sub77100-35601

main77100-35610iRN60,61..V..CND198408-198604

56LITER

sub77001-35941

main77100-35610iRN60..(V,WG)..USA198408-198502

COLD SPEC,56LITER

sub77001-35941

main77100-35620iRN60..(V,WG)..USA198408-198502

56LITER

sub77100-35610

main77100-35630iRN60,61..(V,WG)..USA198408-198604

65LITER

sub77001-35942

main77100-35630iRN60..(V,WG)..USA198408-198502

COLD SPEC,65LITER

sub77001-35942

main77100-35640iRN60..(V,WG)..USA198408-198502

65LITER

sub77100-35630

77100APLUG(FOR FUEL TANK)

main90105-12018iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

77100BGASKET(FOR FUEL TANK)

main90430-12245iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77408-35020iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

L=340

main77408-35030iRN60,61,VZN61..V,WG198403-198903

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35160iRN5#,6#,7#,VZN6#..IV198308-198808

main77201-35170iLN5#,65..IV198308-198608

main77201-35180iRN5#,70..CBU198308-198808

main77201-35190iLN5#..CBU198308-198708

main77201-35240iLN6#..CBU198308-198708

main77201-35250iRN6#,VZN6#..HLF..CBU198308-198808

main77201-35270iRN60,61,VZN61..V,WG198403-198903

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-35200iRN50..CBR198308-198403

sub77203-35330

main77203-35210iRN55..CBR198308-198403

sub77203-35350

main77203-35220iLN51198308-198508

main77203-35240iLN56198308-198708

main77203-35250iLN65198308-198508

TANK CAPACITY=73LITER

main77203-35251iLN66198508-198708

TANK CAPACITY=73LITER

main77203-35260iLN65198308-198508

TANK CAPACITY=65LITER

main77203-35270iRN65;RN60..IV;RN60..(DLX,STD)..CBU198308-198403

TANK CAPACITY=65LITER

sub77203-35360

main77203-35280iRN65198308-198403

TANK CAPACITY=73LITER

sub77203-35370

main77203-35291iRN60..V,WG198403-198408

TANK CAPACITY=56LITER

main77203-35311iRN60..V,WG198403-198408

TANK CAPACITY=65LITER

main77203-35330iRN50..CBR198403-198808

main77203-35350iRN55,70..CBR198403-198808

main77203-35360iRN6#..HLF..CBR198403-198508

TANK CAPACITY=65LITER

main77203-35361iRN61..CBR198508-198708

TANK CAPACITY=65LITER

main77203-35370iRN65..CBR198403-198508

TANK CAPACITY=73LITER

main77203-35371iRN66..CBR198508-198708

TANK CAPACITY=73LITER

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iLN5#,6#198308-198903

77213HOSE, FUEL TANK SUB INLET

main77213-35080iLN5#,RN5#,7#..IV198308-198808

main77213-35110iLN5#,RN5#,70..CBU198308-198808

main77213-35130iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

main77213-35140iLN65,RN6#,VZN6#..IV198308-198808

main77213-35170iRN60,61,VZN61..V,WG198403-198903

77276PROTECTOR, FUEL HOSE

main77276-89101iLN5#,RN5#,70..CBU198308-198808

main77276-89102iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

main77276-89103iLN5#,65,RN5#,6#,70..IV198308-198808

77295SHIELD, FUEL FILLER PIPE

main77291-35010iLN5#,65,RN5#,6#,70,VZN6#..T1..CBU198308-198808

main77291-35020iLN5#,65,RN5#,6#,7#,VZN6#..IV198308-198808

main77293-16010iRN60,61,VZN61..V,WG198403-198903

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-89103iLN5#,RN5#,70..CBU198308-198808

main77305-89104iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

main77305-89106iRN60,61,VZN61..V,WG198403-198903

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05080iLN5#,65,RN5#,6#,70,VZN6#..(3QT,HLF)..IV198308-198808

main90541-08003iLN5#,6#,RN5#,6#,70,VZN6#..T1..CBU198308-198808

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77108-35010iLN65,RN65..USA198309-198408

LARGE TYPE,L=952,*TCA=73LITER

main77108-35010iLN65,RN65..USA198309-198508

L=952

main77108-35010iLN65,RN65..5F..USA198501-198508

LARGE TYPE,L=952

main77108-35020iRN61..V,WG198508-198608

*TCA=56LITER

main77108-35030iRN61,VZN61..V,WG198508-198903

*TCA=65LITER

main77161-35050iLN5#,RN5#,7#198308-198808

sub77161-35051

main77161-35060iRN60..V,WG198403-198508

*TCA=56LITER

sub77108-35020

main77161-35070iLN65,RN60,61,65..5F..HLF..CND198308-198708

L=318

main77161-35080iRN60..HLF..USA198309-198408

LARGE TYPE,L=952,*TCA=65LITER

main77161-35080iLN65,RN6#..HLF..CND198308-198808

L=952

main77161-35080iLN65,RN6#..HLF..USA198308-198708

LARGE TYPE,L=952

main77161-35100iRN60..V,WG198403-198508

*TCA=65LITER

sub77108-35030

77606BBRACKET, FUEL TANK PROTECTOR, SIDE

main77162-35020iRN65..4FC..CND198501-198808

main77162-35020iLN65,RN6#..HLF..USA198308-198708

LARGE TYPE

main77162-35030iRN60,61..V,WG198403-198608

TANK CAPACITY=56LITER

main77162-35040iRN60,61,VZN61..V,WG198403-198903

TANK CAPACITY=65LITER

9015960221

main90159-60221

9017008194

main90170-08194

9046022001

main90460-22001

9046065004

main90460-65004

9046108323

main90461-08323

9048001137

main90480-01137

9094901299

main90949-01299

9163140616

main91631-40616

9165160816

main91651-60816

9165160825

main91651-60825

9165660825

main91656-60825

9331914010

main93319-14010

9338515012

main93385-15012

31 parts on this diagram · 8 diagrams in section
