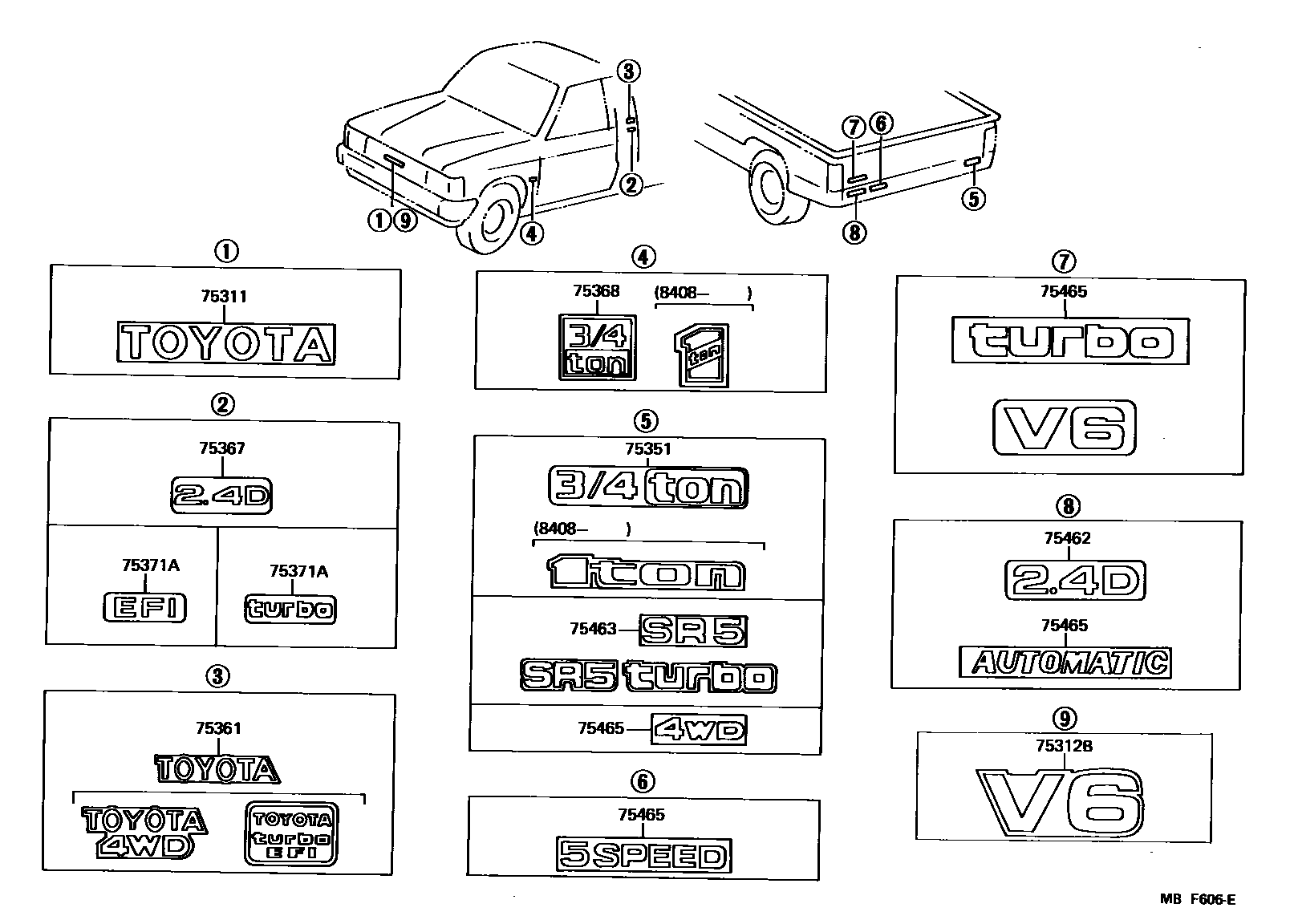

EMBLEM & NAME PLATE

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-89109iLN5#,6#,RN5#,6#,7#¥1,830198308-198608

main75311-89113iLN56,RN5#,7#¥3,170198608-198808

main75311-89115iLN66,RN6#,VZN6#¥3,130198608-198903

75312BEMBLEM, RADIATOR GRILLE, NO.2

main75312-89103iVZN6#¥2,810198711-198903

75351PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)

main75471-89114iRN55..3QT¥690198308-198408

main75471-89117iRN55..10T¥540198408-198608

75361PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)

main75351-89119iLN5#,RN5#,7#..DLX,SR5,STD¥1,140198308-198808

TOYOTA,TOYOTA

main75351-89121iLN6#,RN6#..(DLX,SR5,STD)..HLF¥1,830198308-198608

TOYOTA 4WD

main75351-89123iRN55,61,66..HLF..TBO¥3,350198501-198808

TOYOTA TURBO EFI,TOYOTA TURBO EFI

75367PLATE, FRONT FENDER NAME, NO.3 (DISPLACEMENT)

main75351-89116iLN5#,65..DSL¥970198308-198708

2.4D,2.4D

75368PLATE, FRONT FENDER NAME, NO.4 (LOADING CAPACITY MARK)

main75351-89117iRN55..3QT¥1,380198308-198408

main75351-89122iRN55..10T¥2,060198408-198808

75371AEMBLEM, QUARTER PANEL

main75371-89102iRN5#,6#,75,VZN6#..T1..EFI¥1,010198308-198808

EFI

main75371-89105iLN56,6#..TD¥1,010198408-198708

TURBO

75462PLATE, REAR NAME, NO.3 (DISPLACEMENT)

main75435-89110iVZN61..V,WG¥2,120198711-198903

V6

sub75443-89101¥2,110

main75473-89106iLN56,6#..CBU¥660198308-198608

2.4D

main75473-89117iVZN6#..HLF..CBU¥1,010198711-198808

V6

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75435-89102iRN60,61,VZN61..(V,WG)..(SR5,SRT)¥2,440198403-198903

SR5,SR5

main75472-89121iRN5#,6#,VZN6#..SR5..HLF..CBU¥1,200198308-198808

SR5,SR5

sub75472-89128¥1,390

main75473-89111iRN55..TBO..CBU198501-198508

SR5 TURBO

main75473-89113iRN55,66..TBO..CBU¥2,060198508-198808

TURBO SR5,TURBO SR5

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75435-89105iRN60,61,VZN61..(V,WG)..EFI¥1,480198408-198903

EFI,EFI

main75435-89106iRN61..SRT¥2,730198508-198708

TURBO,TURBO

main75471-89113iLN66¥1,000198308-198608

4WD

main75473-89109iLN66¥1,590198508-198708

TURBO,TURBO

sub75473-89110¥1,580

main75473-89110iLN65..CBU¥1,580198408-198508

TURBO

main75474-89104-01iLN56,RN55..5F..CND..(CBR,DSL)198308-198608

5SPEED,BLACK,BLACK

sub75474-89110¥1,650

main75474-89104-08iLN56,RN55..5F..CND..(CBR,DSL)198308-198608

5SPEED,WHITE,IVORY

sub75474-89110¥1,650

main75474-89106-01iRN65..4FC..CBU198308-198508

AUTOMATIC,BLACK,BLACK

main75474-89106-08iRN55..4FC..DLX198308-198508

AUTOMATIC,WHITE,IVORY

main75474-89107iRN60..4FC¥1,390198501-198508

AUTOMATIC

sub75474-89109¥1,580

main75474-89108iRN5#,6#,70..ATM..CBU¥1,510198508-198608

AUTOMATIC

sub75474-89109¥1,580

10 parts on this diagram · 2 diagrams in section
