FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

sub68710-60040

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

sub68720-60040

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-13iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198308-198608

W/O *PW,GRAY,GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-14iLN5#,65,RN5#,6#198308-198608

W/O *PW,BLUE,BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-10040-56iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198308-198608

W/O *PW,BROWN,BROWN,TRIM4#

sub69260-10040

sub69260-16010

main69260-89104-02iRN55,6#,VZN6#..SR5198608-198903

RED,RED,TRIM3#

sub69260-89104

main69260-89104-03iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198608-198903

GRAY,GRAY,TRIM1#

sub69260-89104

main69260-89104-04iLN56,66,RN5#,6#,7#..T1..(DLX,SDT,SR5,STD)198608-198903

BLUE,BLUE,TRIM8#

sub69260-89104

main69260-89104-05iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198608-198903

BEIGE,BEIGE,TRIM4#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLN5#,65,RN5#,6#198308-198903

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69266-22010iLN5#,65,RN5#,6#198308-198608

main69268-16010iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198608-198903

sub69268-20020

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-89107iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198308-198903

main69801-89108iRN5#,6#,7#,VZN6#198308-198903

W/*VW

main69801-89109iRN55,6#,VZN6#..SR5,SRT198308-198903

W/*PW

main69801-89110iRN5#,6#..SR5,SRT198308-198903

W/*PW & *VW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-89107iLN56,66,RN5#,6#,7#,VZN6#..DLX,SDT,STD198308-198903

main69802-89108iRN5#,6#,7#,VZN6#198308-198903

W/*VW

main69802-89109iRN5#,6#..SR5,SRT198308-198903

W/*PW

main69802-89110iRN55,6#..SR5198308-198903

W/*PW & *VW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89108iLN5#,6#,RN5#,6#,7#198308-198903

main69901-89109iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198308-198903

W/*VW

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89108iLN5#,6#,RN5#,6#,7#198308-198903

main69901-89109iLN5#,6#,RN5#,6#,7#198308-198903

W/*VW

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-89103iLN5#,6#,RN5#,6#,7#198308-198903

main69971-89104iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198308-198903

W/*VW

sub69971-35020

9011908093

main90119-08093

9016850009

main90168-50009

9166140612

main91661-40612

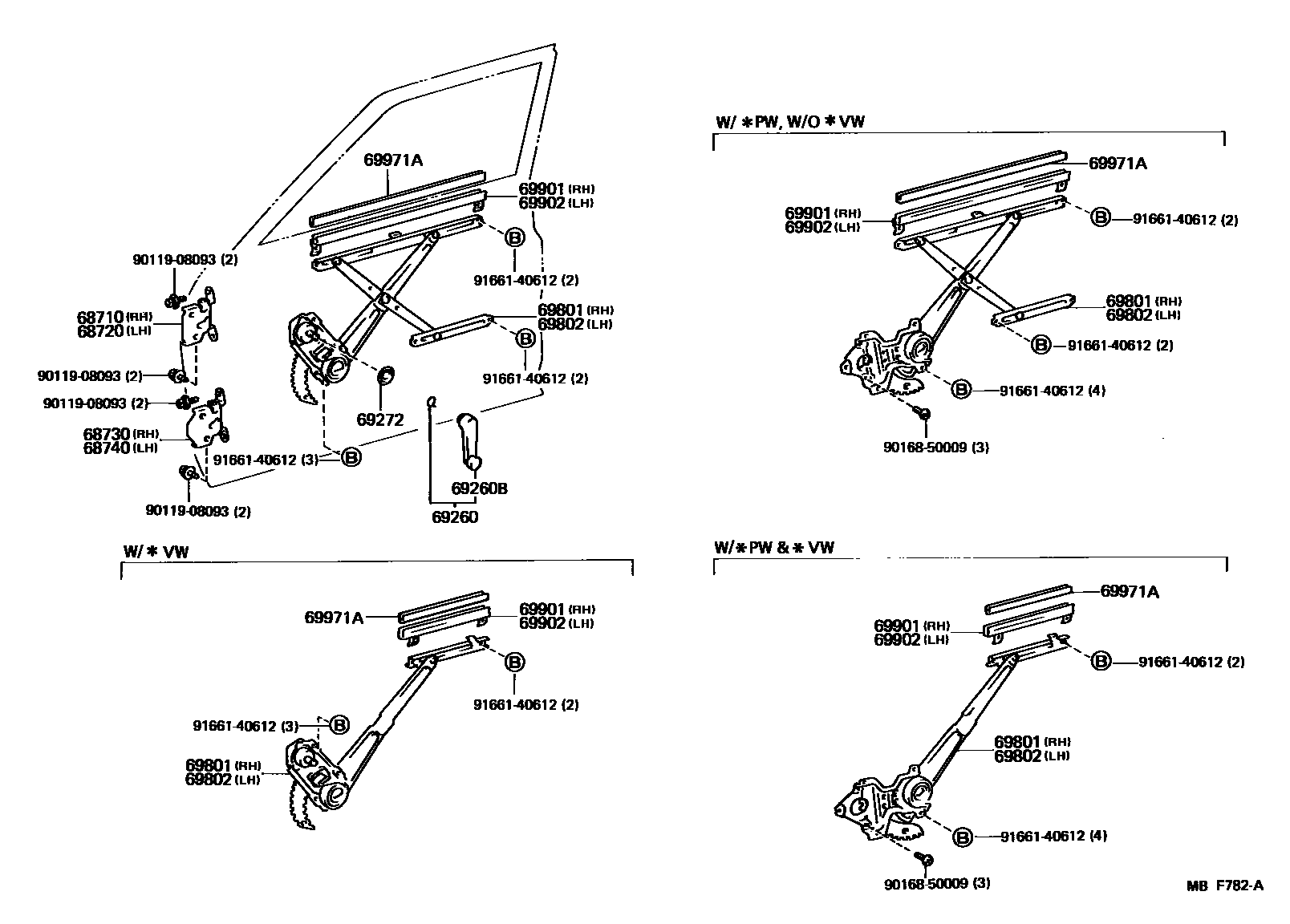

15 parts on this diagram · 1 diagram in section
